Panel Saw
K3 basic/K3 winner
Maintenance
Attention! Risk of material damage! Do not over-tension the drive belt. Turn the belt-tightening screw only
until the drive belt is sufficiently tensioned to transmit power effectively.
10.6 Checking the scoring belt

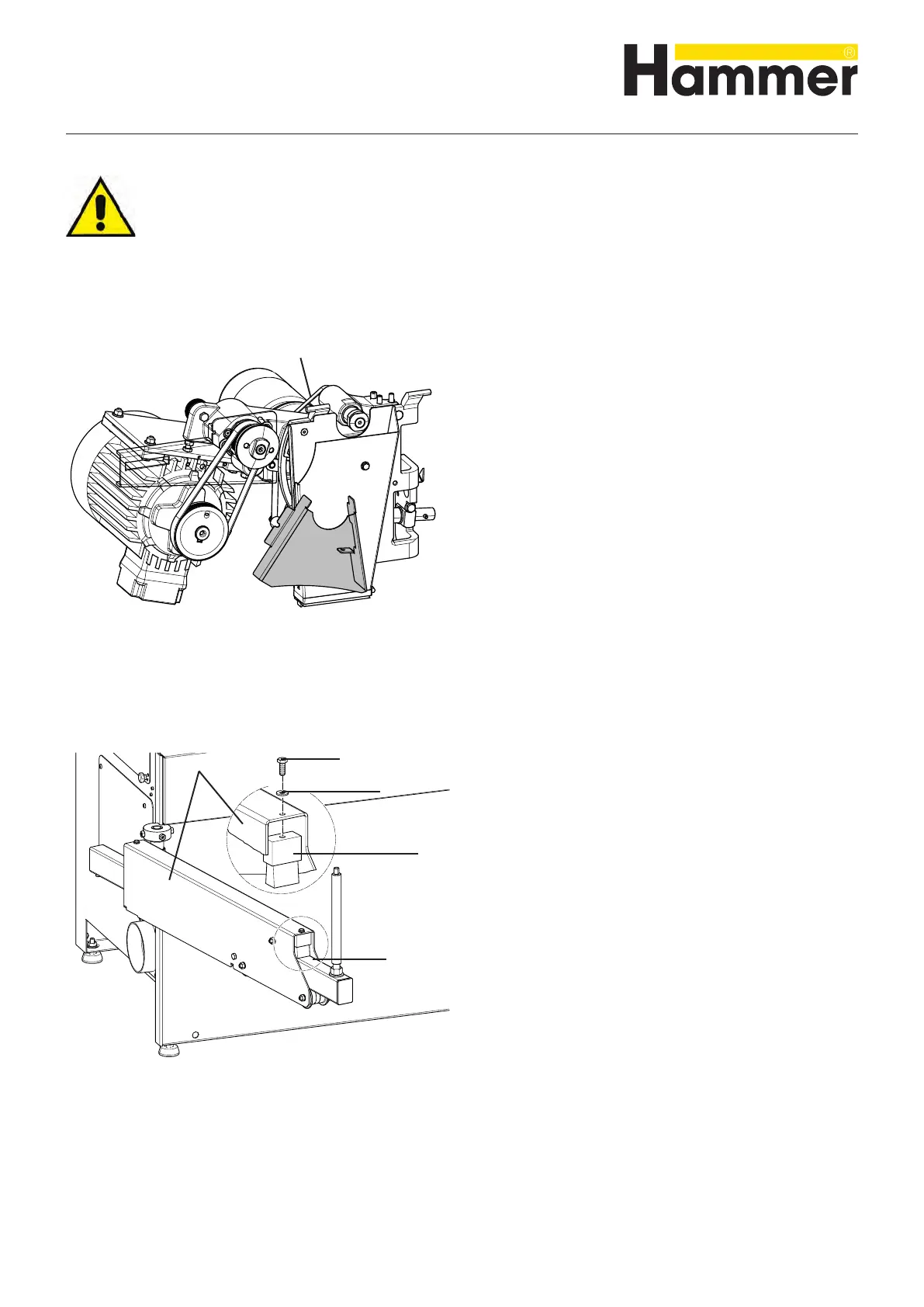

Fig. 106: Scoring belt
The scoring belt is tensioned elastically and thus
maintenance free.
Replace the scoring belt, should tears or side tears
appear during the monthly check (Assembly instructions
„Scoring unit“).
! Scoring belt
10.7 Cleaning/changing the dust brush of the outrigger arm
Fig. 107: Dust brush (outrigger arm)
1. Clean the dust brush and check if in good condition.
2. Renew the dust brush if it is worn out, that is if the
outer slider is no longer cleaned:
a) Loosen the socket head cap screw and washer
from bracket arm.
b) Remove the worn out dust brush.
c) Insert a new dust brush.
d) Screw the dust brush onto the outrigger arm with
a socket head cap screw and washer.
! Outrigger arm
" Socket head cap screw
# Washer
$ Dust brush
% Outer slider
