Panel Saw
K3 basic/K3 winner
Maintenance

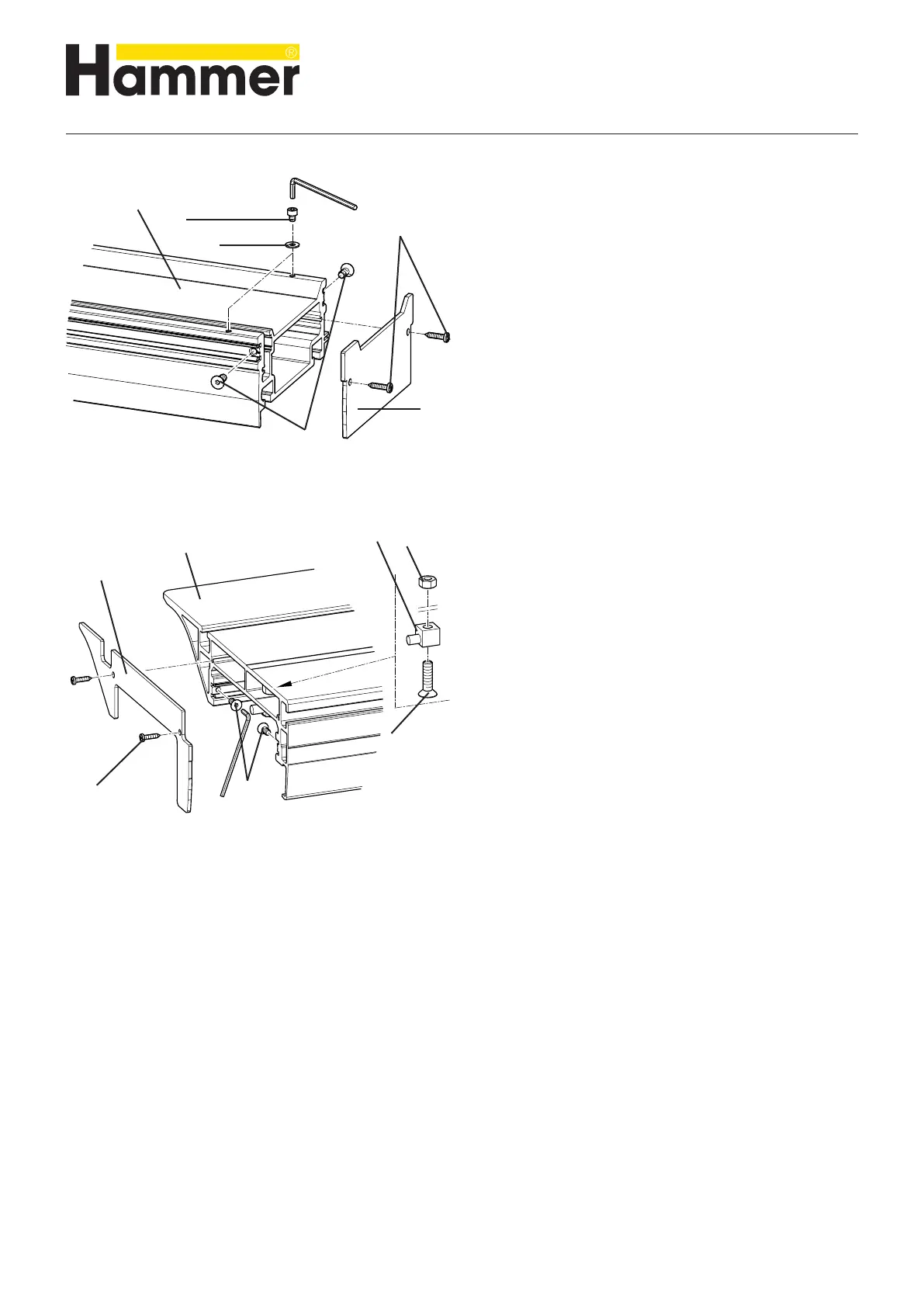

Fig. 113: Base
On the base:
8. Screw flat head screws in.
9. Screw in the socket head cap screws with washers.
10. Screw the base cover on with fillister head screws.
& Washers
/ Socket head cap screws
* Fillister head screws
) Base cover
BL Sunken screws
On the opposite side on the sliding table:
11. Screw the bearing shaft on with flat head screw and
hexagon nut.
12. Screw flat head screws in.
13. Screw the sliding table cover on with fillister head
screws.
BM Sliding table cover
BN Bearing shaft
BO Six sided nut.
BP Flat-head screw
BQ Sunken screws
BR Fillister head screws
Fig. 114: Sliding table length
