Hantek 6022BE
Under Compensated

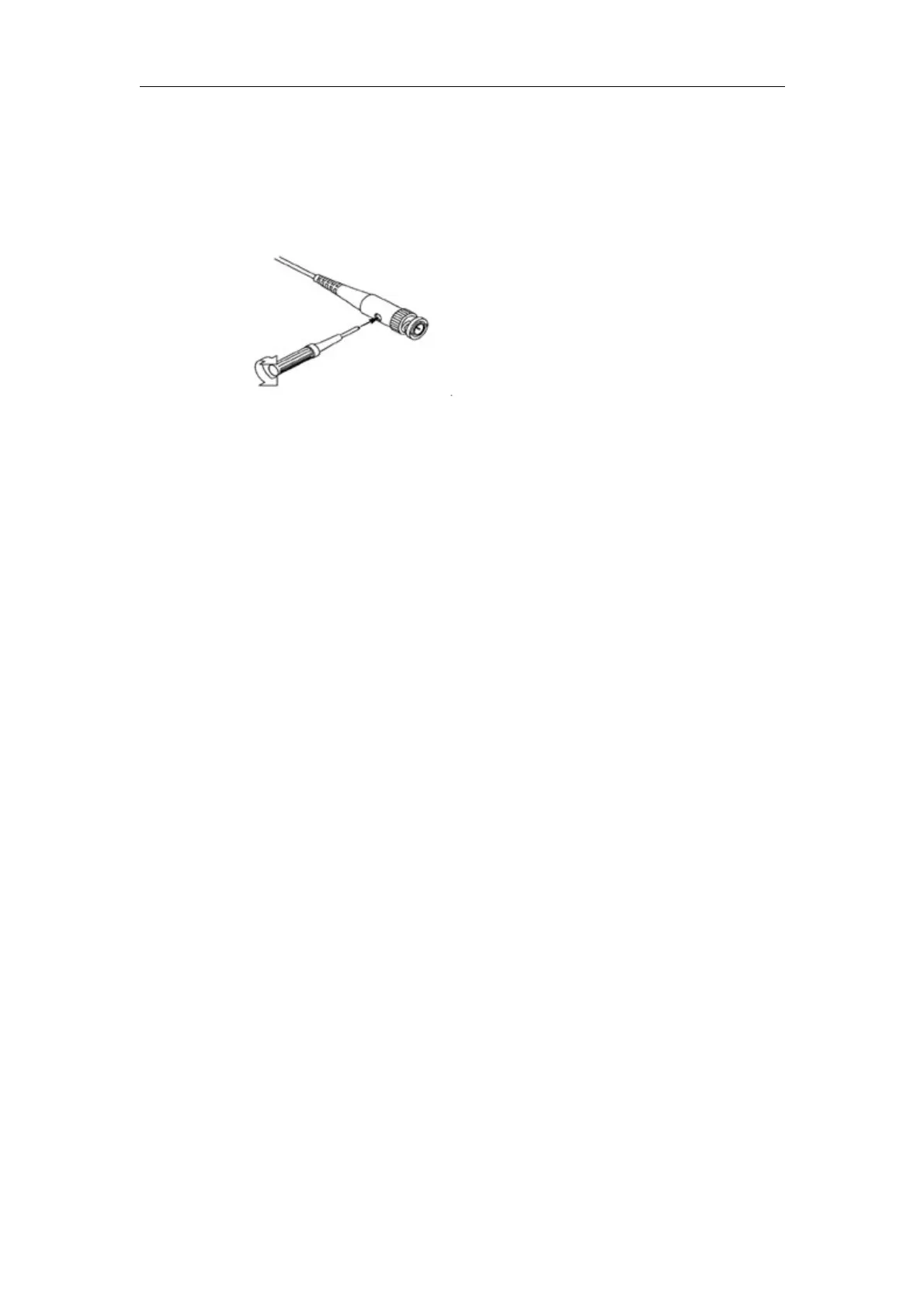

■ If necessary, use a non-metallic tool to adjust the trimmer capacitor of the probe for
the fattest square wave being displayed on the oscilloscope.
■ Repeat if necessary.
WARNNING: To avoid electric shock while using the probe, be sure the perfection of the
insulated cable, and do not touch the metallic portions of the probe head while it is
connected with a voltage source.
Self Calibration
The self calibration routine lets you optimize the oscilloscope signal path for
maximum measurement accuracy. You can run the routine at any time but you
should always run the routine if the ambient temperature changes by 5 or ℃
more. For accurate calibration, power on the oscilloscope and wait twenty
minutes to ensure it is warmed up. To compensate the signal path, disconnect
any probes or cables from the input connectors. Then, access the “Menu ->
Utility -> Calibration” option and follow the directions on the screen. The self
calibration routine takes about several minutes.
Accessories
All the accessories listed below are standard accessories for the oscilloscope:
Probe×2 (1.5m), 1:1, (10:1) Passive Probes
A User’s Guide
An USB Cable
A PC software of the oscilloscope
