Input Connectors

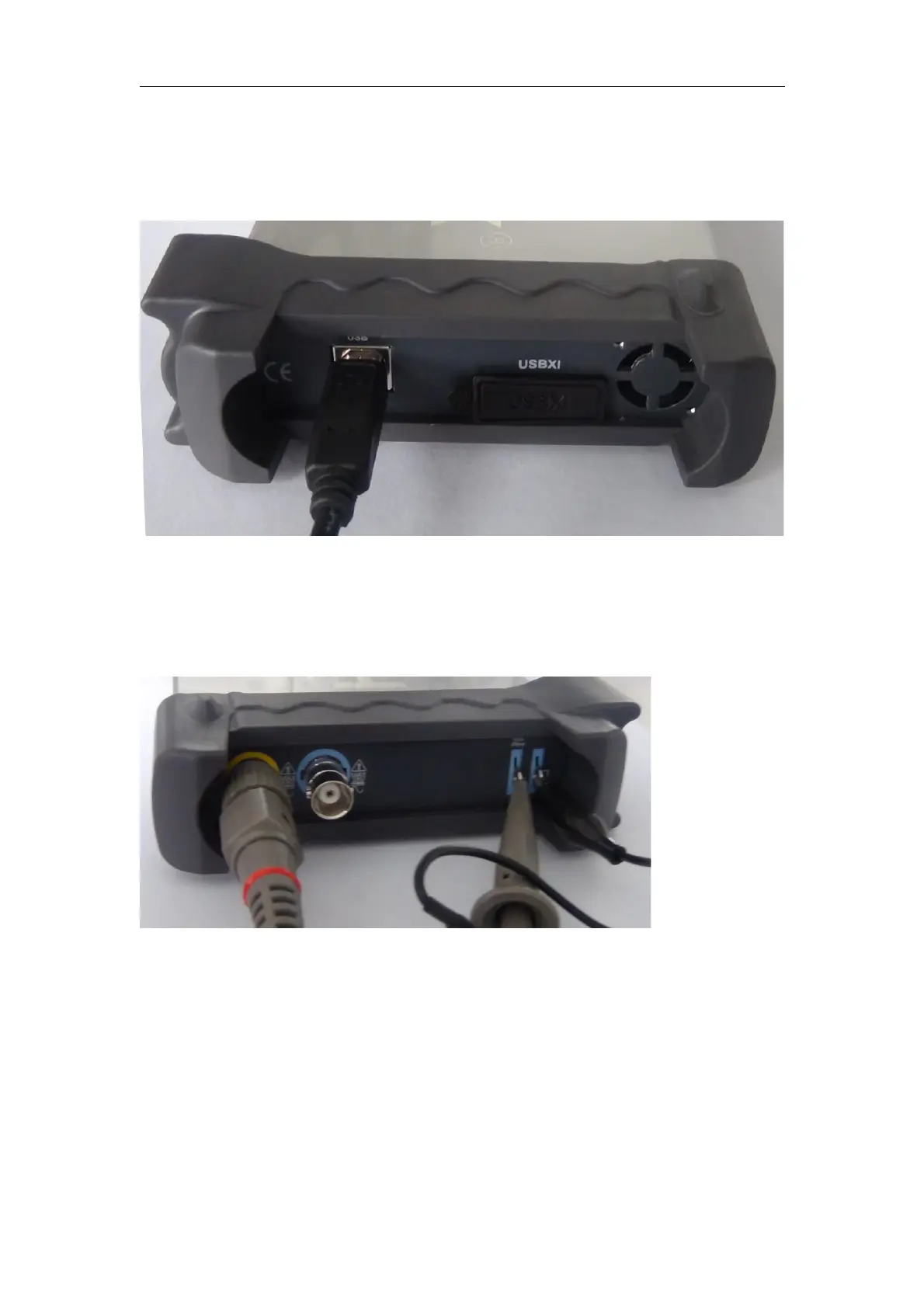

CH 1/CH 2: Input connectors for waveform display.
EXT.: Input connector for an external trigger source. Use the Trigger Menu to
select the Ext. or Ext./10 trigger source.
Other Connector:
GND.: a ground terminal
USB PORT: Connect the B-Type Plug of USB cable to this port.
CAL.: Probe compensation output.
