Hantek 6022BE
1.
CH1: Leads to the setting of the CH1 parameters
2.
CH2: Leads to the setting of the CH2 parameters
Use the left mouse button to dragging the channel icon to set the vertical
position offset precisely.
Invert: The invert function turns the displayed waveform 180 degrees.
The Horizontal System

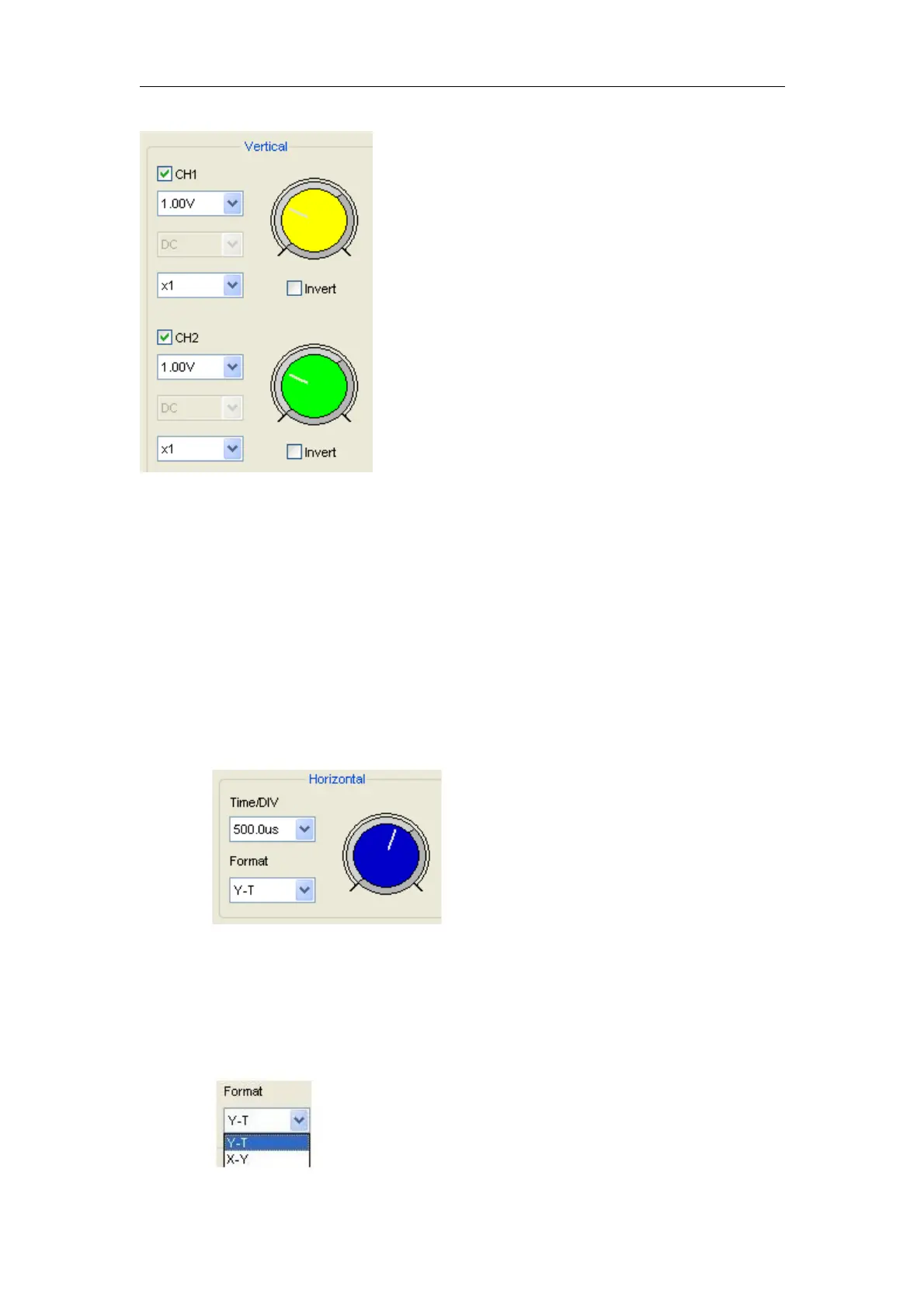

The following figure shows the Horizontal System window. It shows the
horizontal parameters settings.
1.
Time/DIV: leads the setting of the time base parameters
2.
Format: leads the setting of the horizontal format parameters
The time base ranges of the oscilloscope is listed as follows. The horizontal
scan speed is from 4ns/div to 1hour/div.
In the “Format” menu of the “Horizontal” menu, select the display mode to Y-
T, X-Y .
19
The User’s Manual
