Hantek 6022BE - Taking Cursor Measurements

Hantek 6022BE

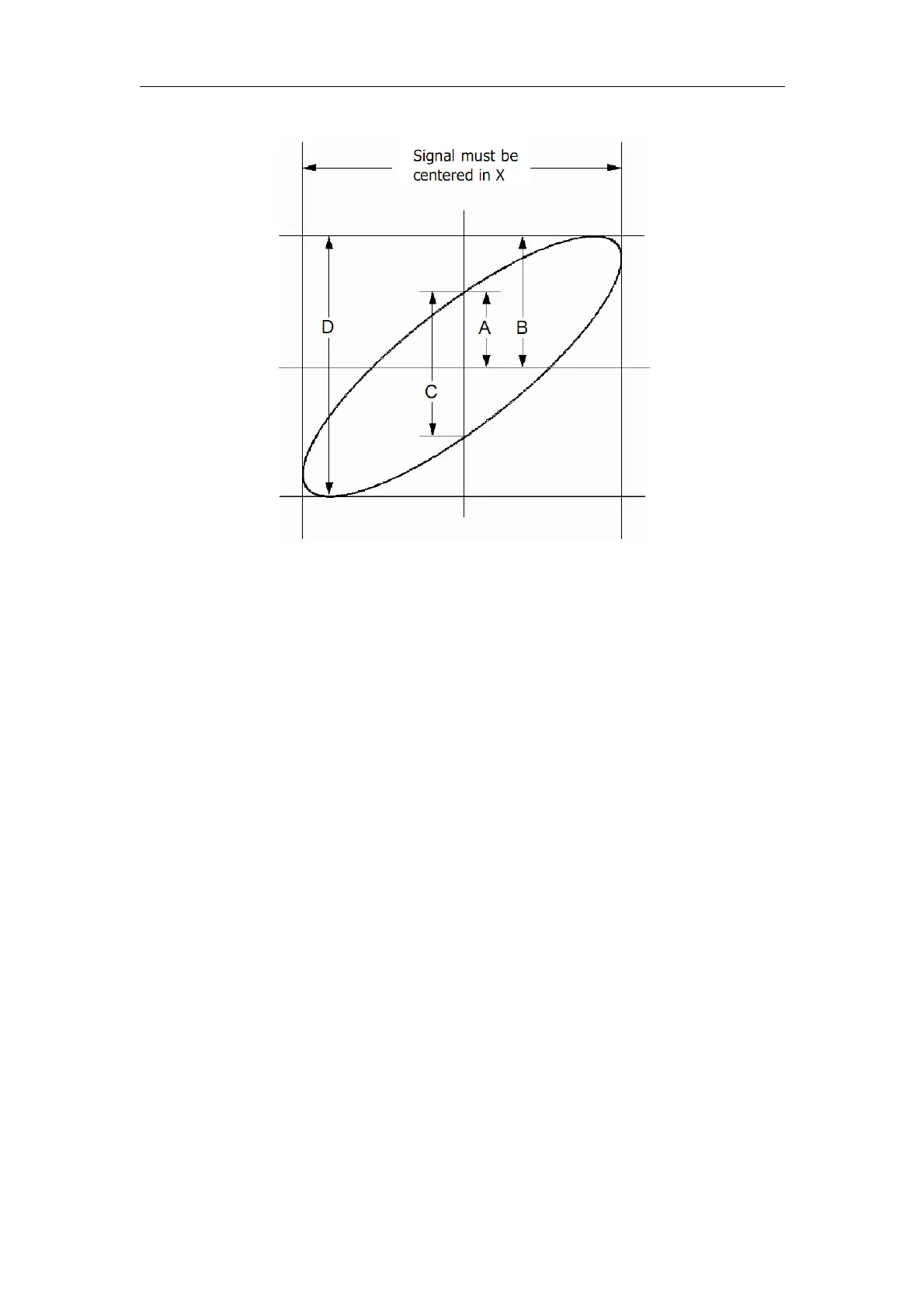

Sinθ = A/B or C/D, where θ = phase shift (in degrees) between the two
signals.
From the formula above:
θ = ±arcsine (A/B) or ±arcsine (C/D)
θ must be in the range of (0~π/2) or (3π/2~2π) if the main axis of the ellipse is
between I and III quadrant, . If the main axis is at II and IV quadrant, θ must
be in the range of (π/2~π) or (π~3π/2).
Taking Cursor Measurements
Use cursors to make time and amplitude measurements on a waveform
quickly.
Measure the Peak Frequency or Time of the First Sine Waveform
Do these steps:
1.
Click “Cursor->Source”, select CH1 (select CH2 if you want measure
CH2).
2.
Click “Cursor->Type”, select Vertical.
3.
Push left mouse button, and the vertical lines appear.
4. Drag the mouse button to the point you want to measure.
5.
Release the left mouse button, the frequency difference and time
difference will be shown at the status bar.
57
The User’s Manual
