Hantek 6022BE
The User’s Interface

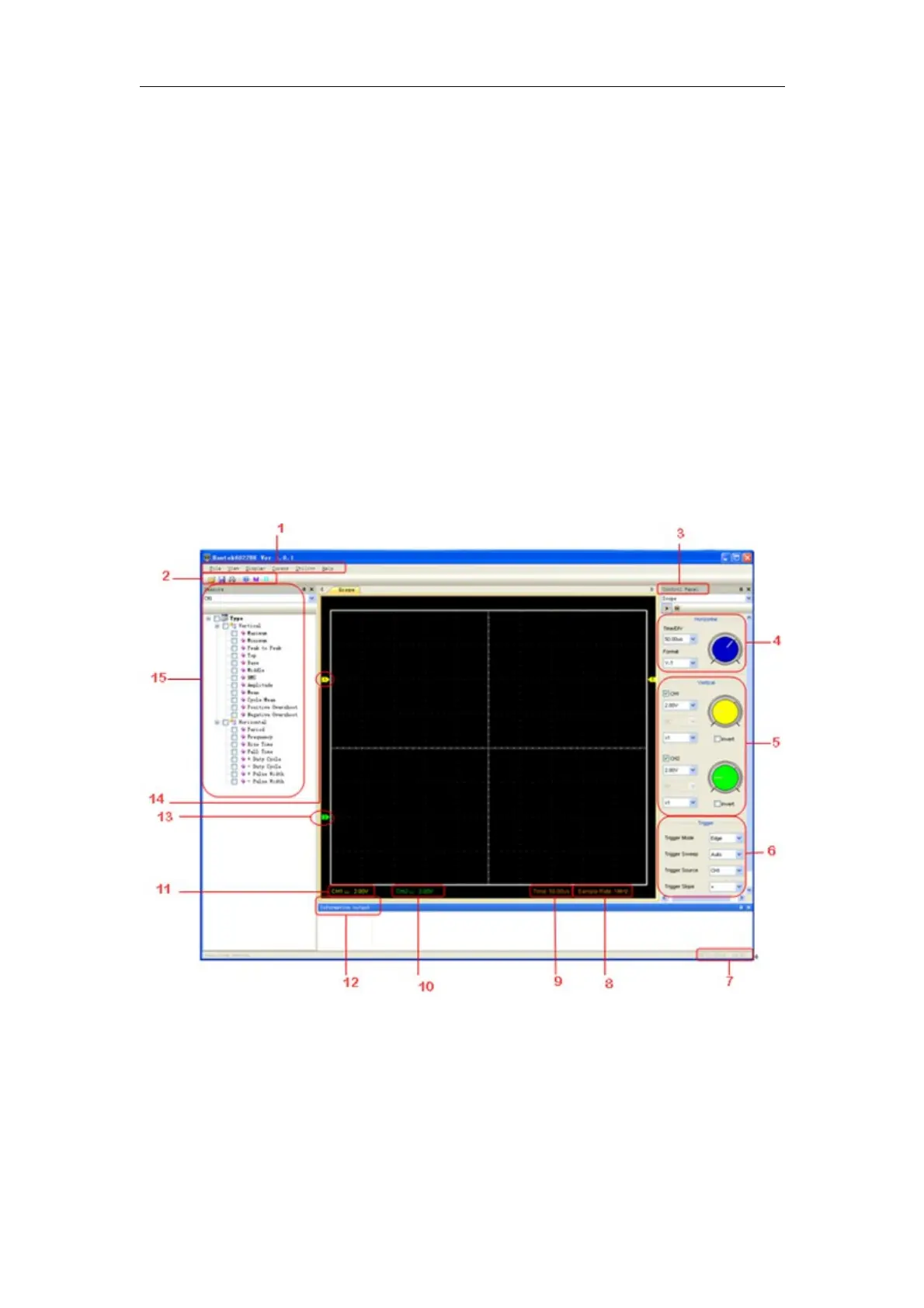

Click the software icon on the desk after you finished the software setting and
equipment connecting. Then a user interface will be showed as follows:
In addition to displaying waveforms, the display area is filled with many details
about the waveform and the oscilloscope control settings.
1.
The Main Menu
All settings can be found in the main menu.
2.
The Toolbar
15
The User’s Manual
