Multimeter
DSO8000E Series HandHeld Oscilloscope User Manual 71

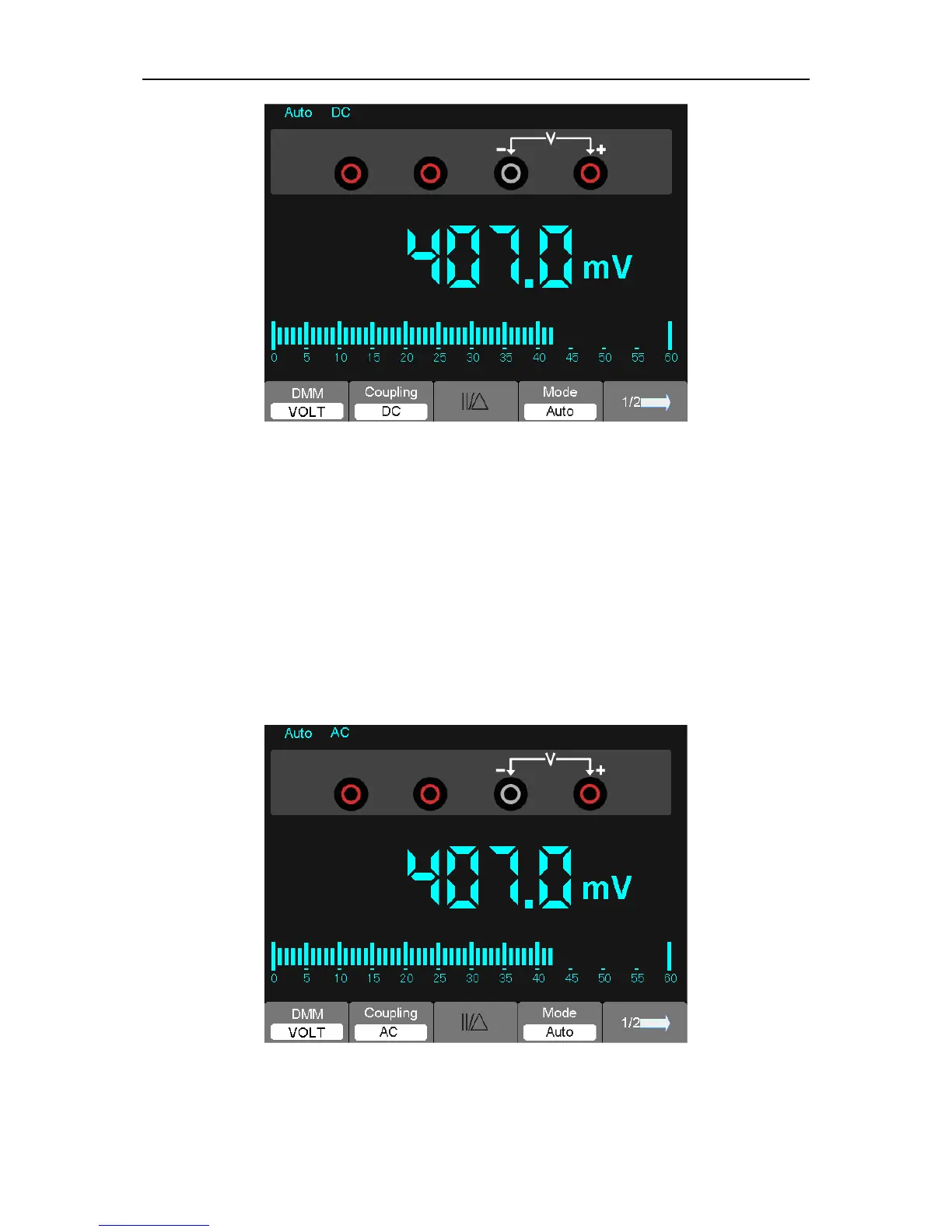

Figure 7-6 DC voltage Measurement
Making an AC Voltage Measurement
To measure the AC voltage, do the following:
1) Press the F1 key to select VOLT and DC appears on the screen.
2) Press the F2 key and AC appears on the screen.
3) Insert the black lead into the COM banana jack input and the red lead into the V/O/C banana jack
input.
4) Connect the red and black leads to the measured points and the AC voltage value of measured
points will be displayed on the screen.
Then, the screen will look like the following figure 7-7.
Figure 7-7 AC voltage Measurement
Making a DC Current Measurement
