Multimeter
DSO8000E Series HandHeld Oscilloscope User Manual 72
To measure a DC current which is less than 600 mA , do the following:
1) Press the F1 key to select A and then DC appears on the screen. The unit on the main reading
screen is mA. Press F3 to switch the measurement between mA and 10A. 600mA is acquiescently.
2) Insert the black lead into the COM banana jack input and the red lead into the mA banana jack
input.
3) Connect the red and black leads to the measured points and the DC current value of measured
points will be displayed on the screen.

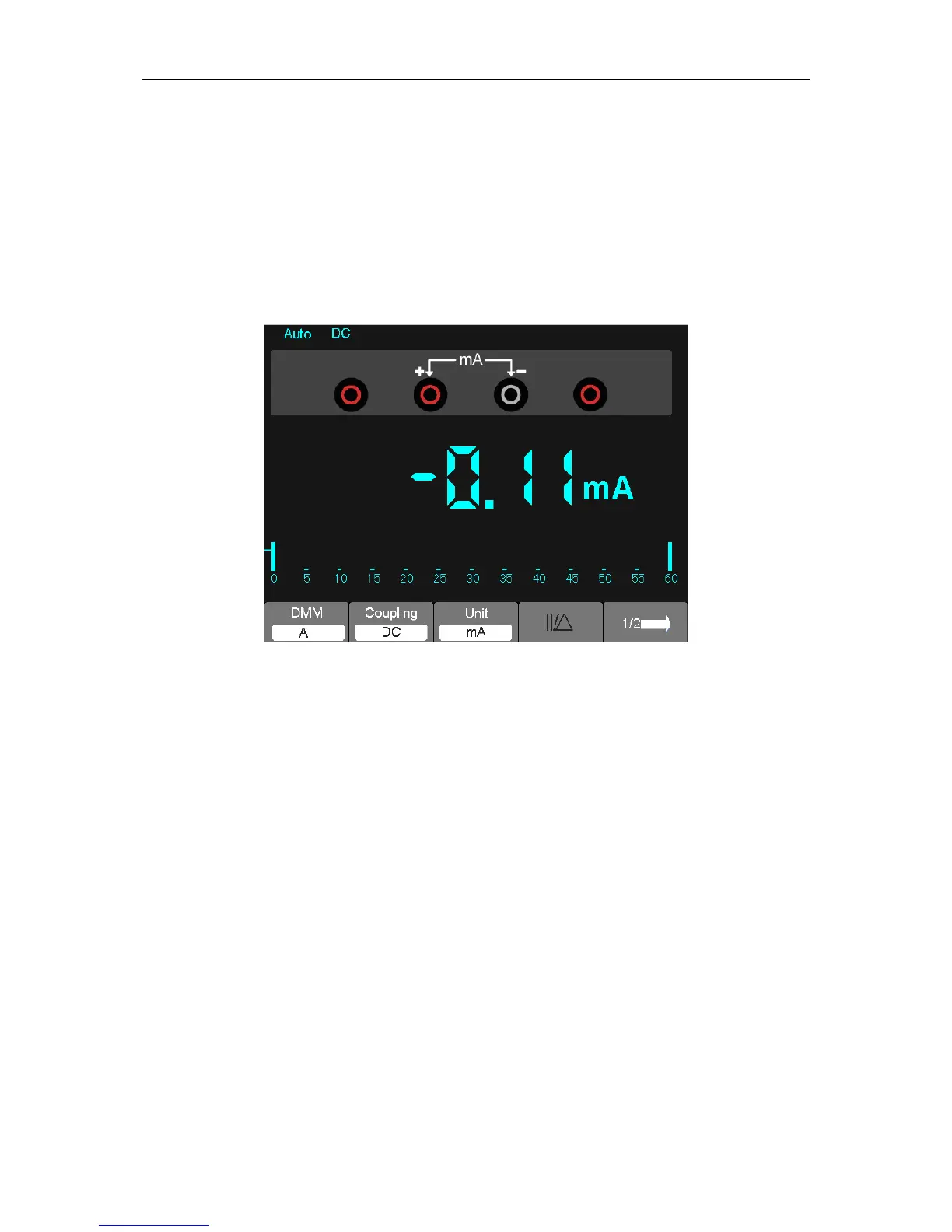

Then, the screen will look like the following figure 7-8.
Figure 7-8 DC current Measurement for 600 Measurement
To measure a DC current which is larger than 600 mA, do the following:
1) Press the F1 key to select A and then DC appears on the screen. The unit on the main reading
screen is mA.
2) Press F3 key to switch to 10A measurement, the unit on the main reading screen is A.
3) Insert the black lead into the COM banana jack input and the red lead into the 10A banana jack
input.
4) Connect the red and black leads to the measured points and the DC current value of the
measured points will be displayed on the screen.
5) Press F2 to return to 600 mA measurement.
Then, the screen will look like the following figure 7-9.
