Waveform Generator
DSO8000E Series HandHeld Oscilloscope User Manual 85

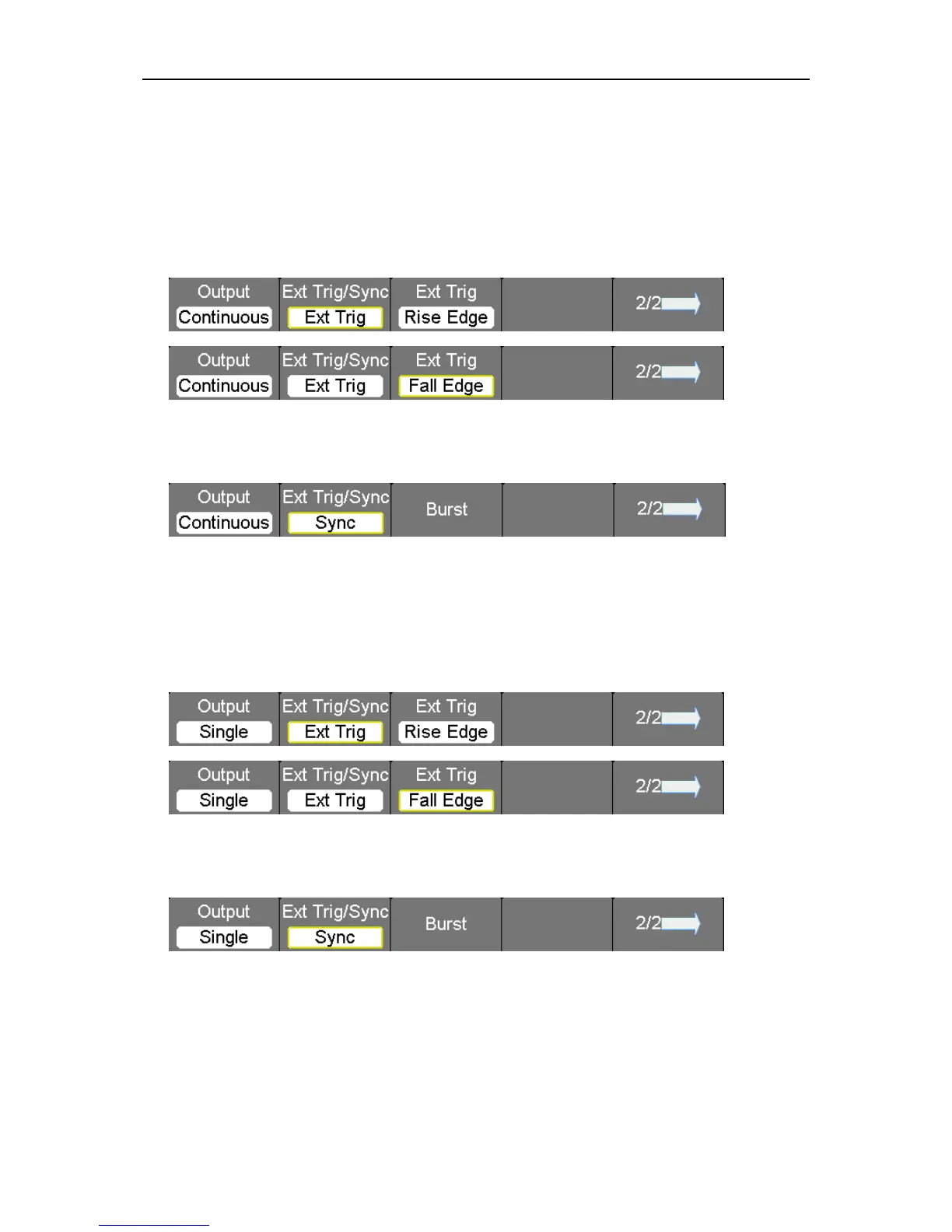

Output waveform: Set output type to continuous, single or OFF.
 Continuous: Continuous output waveform.
Ext Trig:
When an edge of the external trigger signal is triggered, even if the external trigger signal is
disconnected, the waveform can be output continuously. If the external trigger signal is
disconnected, only when the settings are changed, the settings in the front will be cleared.
Sync:
Burst: Press the button, the signal will output continuous; Press the button again, the signal will
stop output. Sync output is synchronized signal of output.
 Single: Press once, output waveform once.
Ext Trig:
When an edge of the external trigger signal is triggered, the signal output once. If the external
trigger signal is continuous, the waveform can output continuously. If the external trigger signal
is disconnected, the waveform will stop output.
Sync:
Burst: Press the button once, a cycle waveform output once; if you do not press, no signal
output. Sync output is synchronized signal of output.
 OFF: Not output wavefrom.
Notes:
External trigger signal port: For the model of waveform generator function, it can be used as an
external trigger of the oscilloscope and waveform generator.
Synchronized output port: Only for the model with waveform generator function.
