Programmable Temperature & Humidity Controller
10
▶ FG wiring
Vinyl-insulated wire(2.0 ㎟ (KSC 3304)) must be used. It must be grounded at 3 points or
more with 100 Ω or less resistance.
▶ Power connection
Vinyl-insulated wire(0.9 - 2.0 ㎟ (KSC 3304)) must be used.

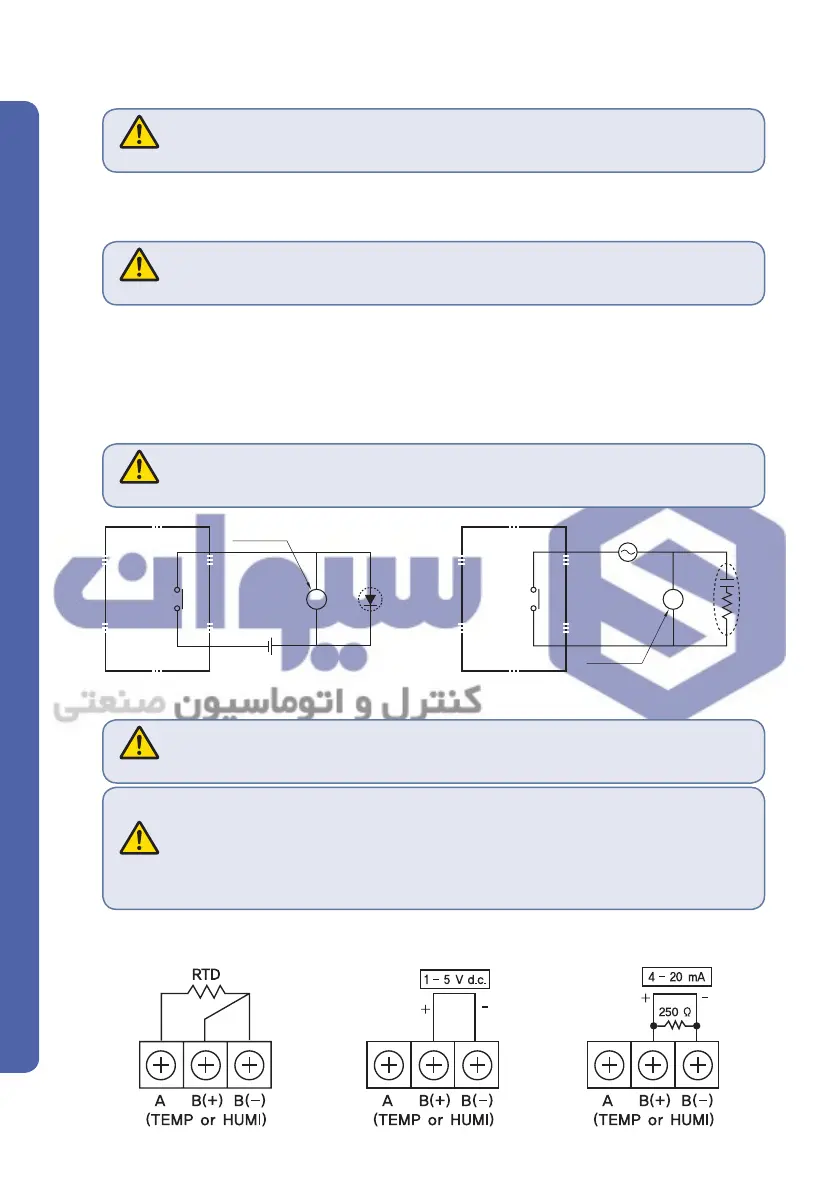

▶ Relay output wiring
L L
Relay output
terminal
Extern DC power
Inductive load
Diode
Relay output
terminal
Extern AC power
Inductive load
CR filter
TH510 TH510
▶ Input wiring
●
Thermoresistor input
●
Temperature/Humidity control output
SSR or SCR Recording and indicating instrument, etc..
●
Temperature/Humidity transmission output
●
DC voltage input
●
DC current input
●
Sensor input
Too much noise may lead to damage or malfunction to the device.
Use line filter to remove the noise.
Caution
Inductive load(L) including motor, solenoid, and external relay may lead to malfunction.
The CR filter for AC circuit and the diodes for DC circuit should be connected in parallel
with the inductive load
Caution
Input wire must use shielded cable and be wired with certain distance from
the power and ground circuits. RTD sensor must be 3-wire type with the same wiring
resistance.
Caution
•Enclosure must be grounded at 3 points or more(100 Ω or less of grounding resistance)
using 2 ㎟ or bigger cable.
•Input signal and output lines must be of shielded cable with 1 grounding point.
•Thermoresistor input must be wired with no resistance difference between 3 wires.
•Input/output signal line must be isolated from power line.
•To use current input, attach 250 Ω 0.1 % resistor at both ends of input terminal.
Caution
4. Wiring
Fig. 2) Connection of relay
Before wiring, disconnect the power.
Do not touch a terminal because it may lead to electric shock.
Caution
