▶ System
9. System
Parameter Setting range Default
Language Korean, English, and Chinese(Simplified) English
Splash TH510 logo and User-defined logo TH510 logo
User password 0 ~ 9999 0000
Parameter Setting range Default
Information 1 Character input panel(up to 30 characters) HANYOUNG NUX CO.,LTD
Information 2 Character input panel(up to 30 characters) TH510 TEMP/HUMI CONTROLLER
Information 3 Character input panel(up to 30 characters) www.hynux.com
Information display
on first screen
No and Yes Yes
Select a language(Korean/English/Chinese).
Select a splash.
If a user password is set, it needs to be entered
to enter system setting screen (If the user
password is "0", it is disabled).
Upload a splash using a SD card
(disabled when it is being saved).
[ System parameter ]
▶ Specifications
Enter information to display during boot-up
process.
Select whether to display product information
or not during boot-up process.
Displays product version information.
[ Specifications parameter ]
Logo image file must have the resolution of
640×480 and file name of TH510_LOGO.
bmp. Files must be placed in
“TH510\LOGO” folder of root direction of
SD card. Otherwise, they are not uploaded.
Caution
Initializes parameters. Event or error
history is not initialized.
(It can't operate when it is being saved)
Caution

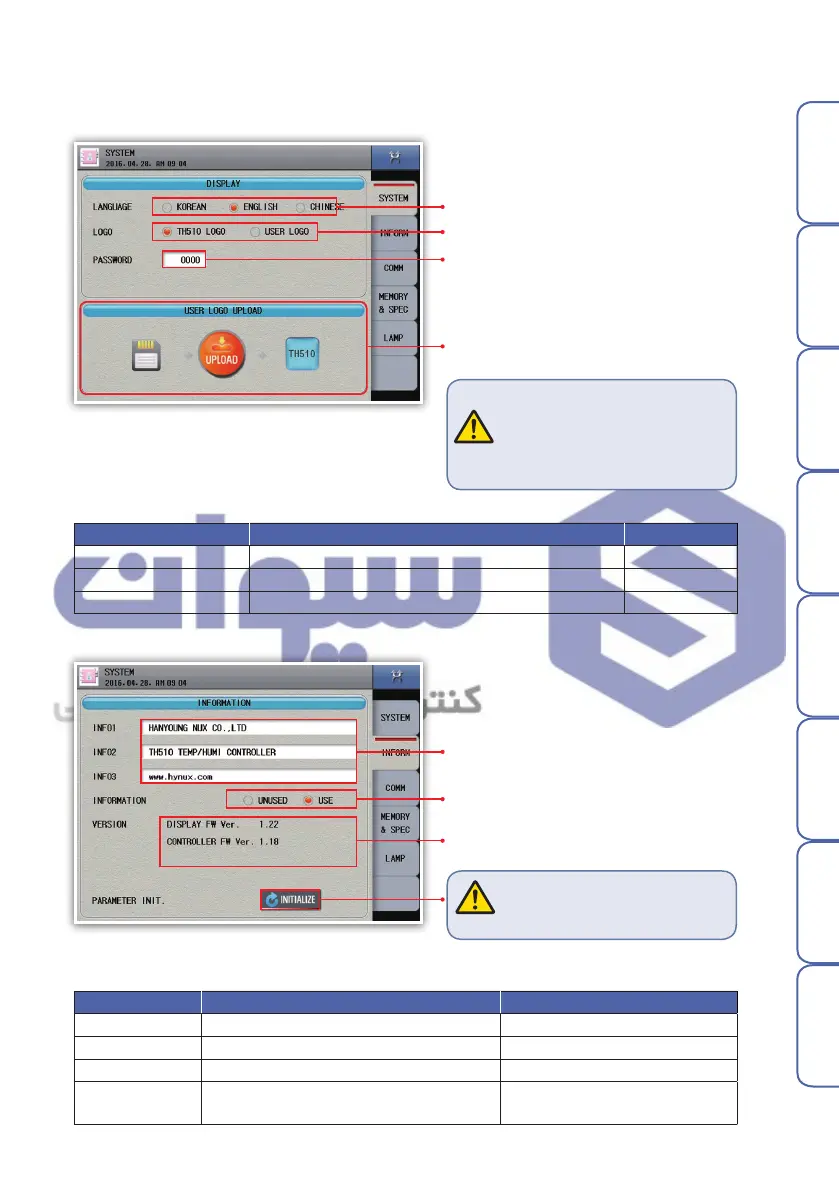

Fig. 116) System screen
Fig. 117) Specifications screen
