69
Before starting Installation
Operation
Screen block
diagram
Function setting Program System setting Specifications
DO configuration setting has 8 tabs and assigns system signals to relay outputs. If duplicate relay
numbers are set, the relays works even one of them is output.
IO specifications are optional for TH510 and configurable relay numbers are limited by the option so
make sure to check the IO specifications.
- Screen to set relays for inner signals.
- If an inner signal is transmitted, defined relay is ON.
- Screen to set relays for time signals.
- If a time signal is transmitted, defined relay is ON.
▶ Inner signal
▶ Time signal
8. DO configuration
Parameter Setting range Default
Inner signal 1 ~ 16 Up to 0 ~ 32 0
Parameter Setting range Default
Time signal 1 ~ 4 Up to 0 ~ 32 0

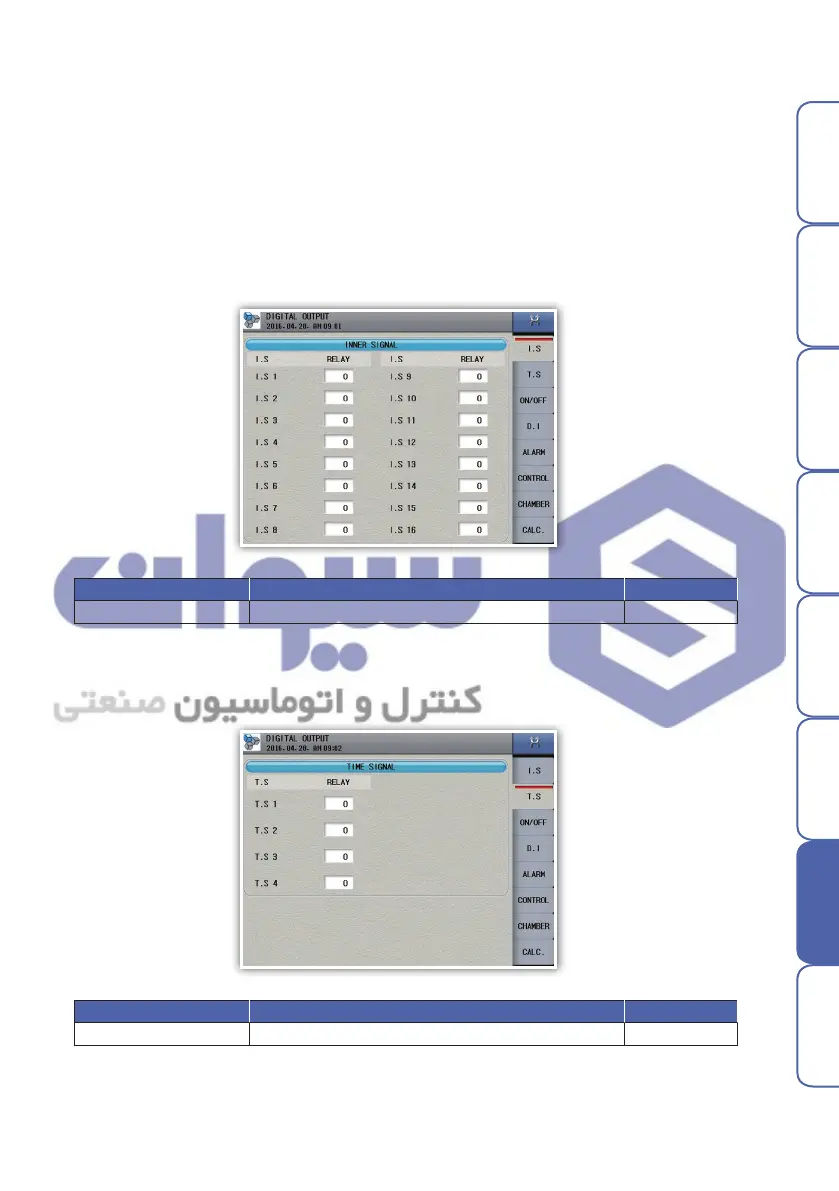

Fig. 108) DO - Inner signal
Fig. 109) DO - Time signal
