Programmable Temperature & Humidity Controller
58
Narrow proportional band -
quick response, hunting
HYS. Delay
Hysteresis
Hysteresis
HYS. DelayHYS. Delay
Offset
PI control
Proportional control
Short differential second
Long differential second
Time
Time
Wide proportional band-Late
response and offset from the SV
- Set target, range direction, and type of individual inner signals.
- Up to 16 inner signals can be set
▶ Inner signal setting
4. Inner signal
1. Target setting
- Set a target of inner signal.
2. Range direction
- Set the operation range of temperature to use inner signal.
3. Type
- Set a target of inner signal to apply.
- T.S.V : Based on target setting value
- N.S.V : Based on current measurement
- P.V1 : Based on operation range L and H for measurement
- P.V2 : Based on setting values and their offset setting values

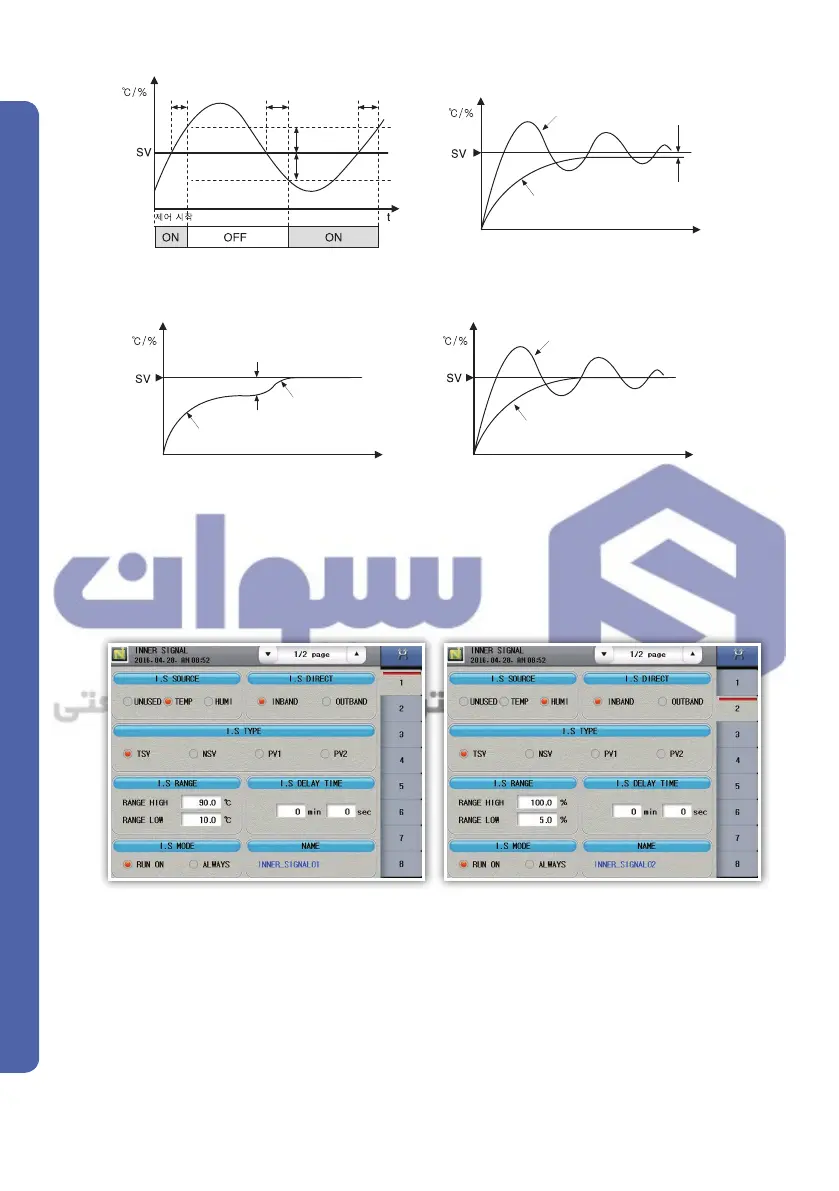

Fig. 76) ON/OFF control
Fig 80) Inner signal - 1 Fig. 81) Inner signal - 2
Fig 78) Proportional/proportional,
Integral control(P control/P.I)control
Fig. 77) Proportional control (P control)
Fig 79) Proportional integral control (P.I control)
