Parameter Setting range Default
Target set Unused, temperature, humidity Unused
Range direction Within range, Outside range Within range
Signal points TSV, NSV, PV1, PV2 TSV
Operation range upper limit
-99.9 ~ 150.0 0.0
Operation range lower limit
-100.0 ~ 149.9 0.0
Operation delay time 0~9999M 59S 0
Operation conditions always, during operation Running
4. Operation range
- Set upper and lower limits of operation range for target.
5. Operation delay
- Set operation delay for target.
6. Operat;ion Mode
- Always : always execute the inner signal
- Running : execute the inner signal during operation only
1. Enter an inner signal name (using Korean, English, numeric, and symbol characters).
2. An inner signal name may include up to 24 characters (12 ones in Korean).
-
Click the icon on upper left of alarm setting screen in order to go to the inner signal name setting screen.
▶ Inner signal name setting
Parameter Setting range Default
Inner signal name Korea, English, numeric, and symbol characters
INNER_SINGALnn

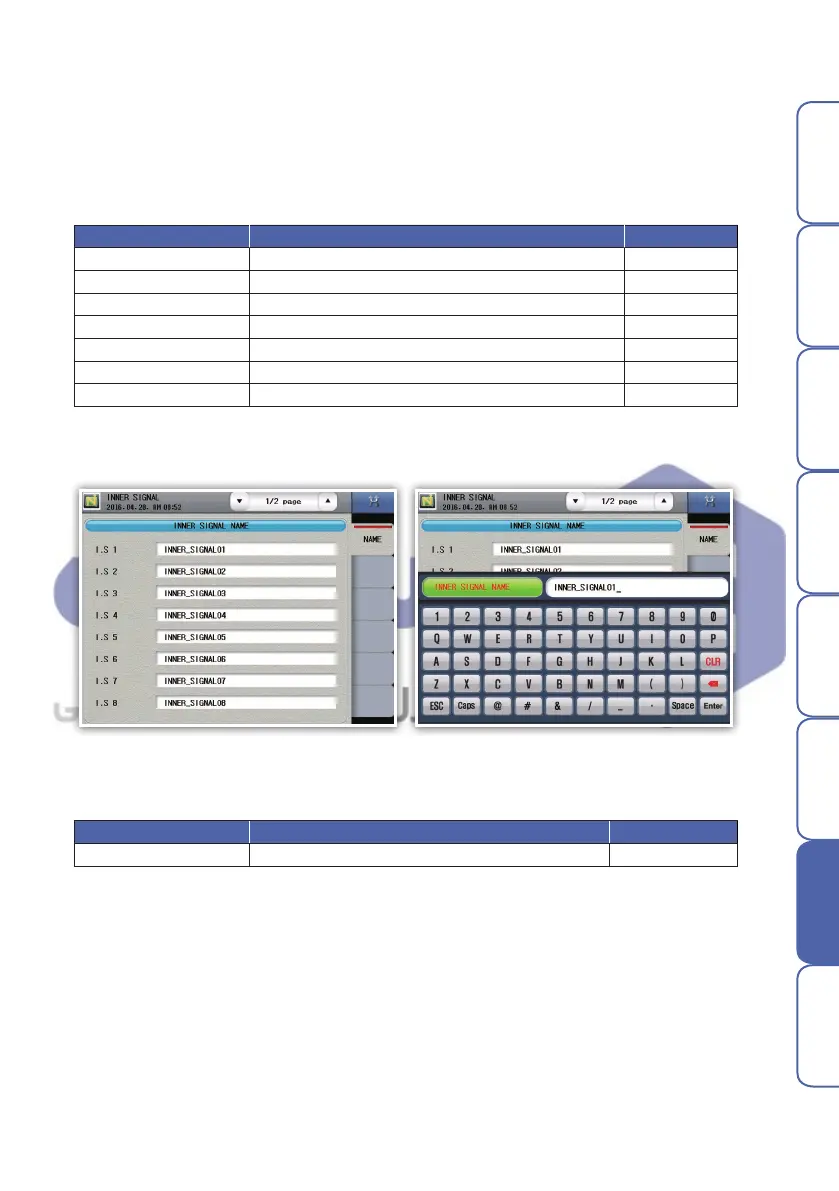

Fig. 82) Inner signal name Fig. 83) Enter an inner signal name
