19
Before starting Installation
Operation
Screen block
diagram
Function setting Program System setting Specifications
1. Run screen
Fixed control / program operations can be changed from [main menu] - [temperature operation
setting] - [ operation setting ]. The operation start and finish can be executed from the operation
screens 1 and 2 only
No. Description
1 Show the SD card status
2 Execute the hidden menu window. To cancel the menu window, clic the same part again
3 Move to Operation 2nd screen
4 Move to Main Menu screen
5 Show the temperature Present value (PV)
6 Show the temperature unit
7 Show the temperature control output (MV)
8 Input the temperature Target Set Value (TSG)
9 Show the temperature present set value (NSV). Show only during operation
10 Show the temperature increase/decrease/maintenance status
11 Show the humidity Present value (PV)
12 Show the humidity unit
13 Show the humidity control output (MV)
14 Input the humidity Target Set Value (TSG)
15 Show the humidity present set value (NSV). Show only during operation
16 Show the humidity increase/decrease/maintenance status
17 Start/Stop button
18 Show a status message about the overall operation
19 Show the operation time
1-1 Fixed control screen
Press the operation button in the left of the center in the fixed control screen in order to switch to the
fixed operation screen 1
② ⑩ ⑦③ ④
⑫ ⑯ ⑱ ⑲ ⑬
①
⑥
⑤
⑪
⑰
⑧
⑭
⑨
⑮

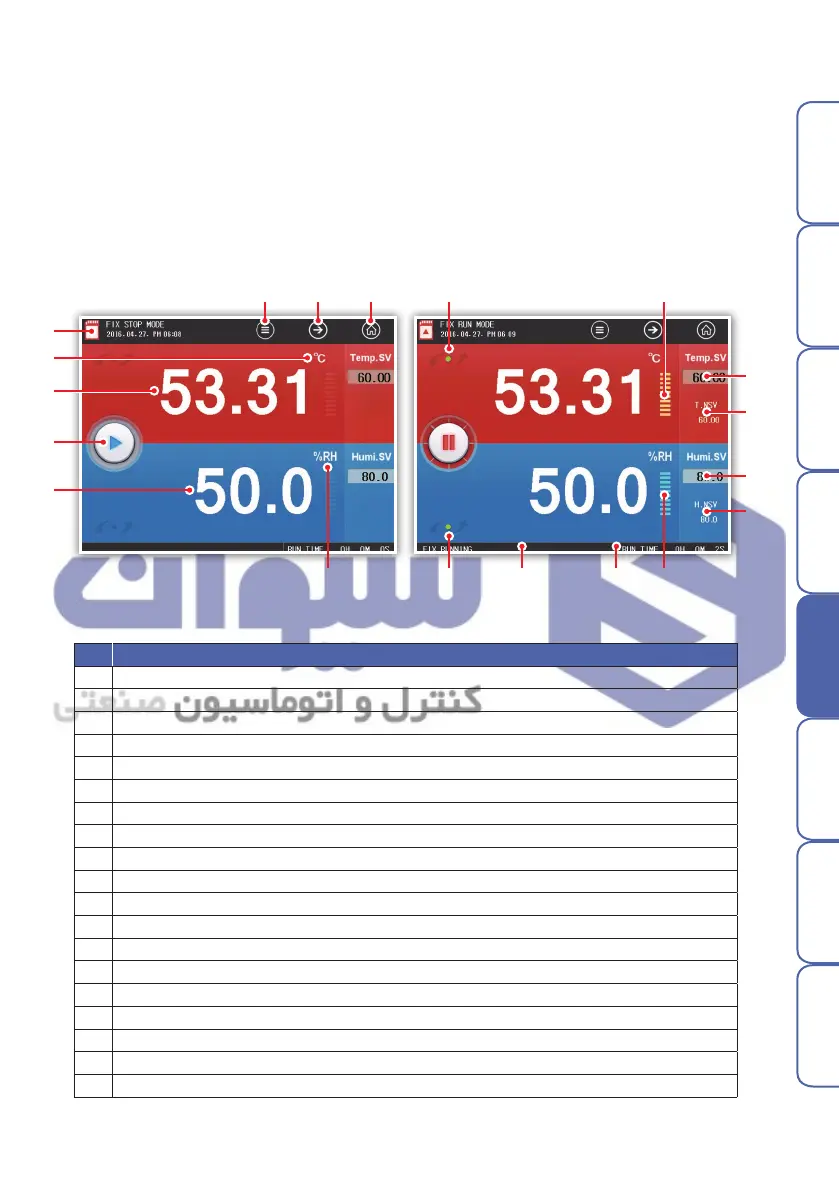

Fig. 9) Fix stop mode screen 1
Fig. 10)Fix run mode screen 1
▶ Fixed control screen 1
