Programmable Temperature & Humidity Controller
20
To start the fix run mode, press the play button (19) in the left of the center in the fix stop mode 2

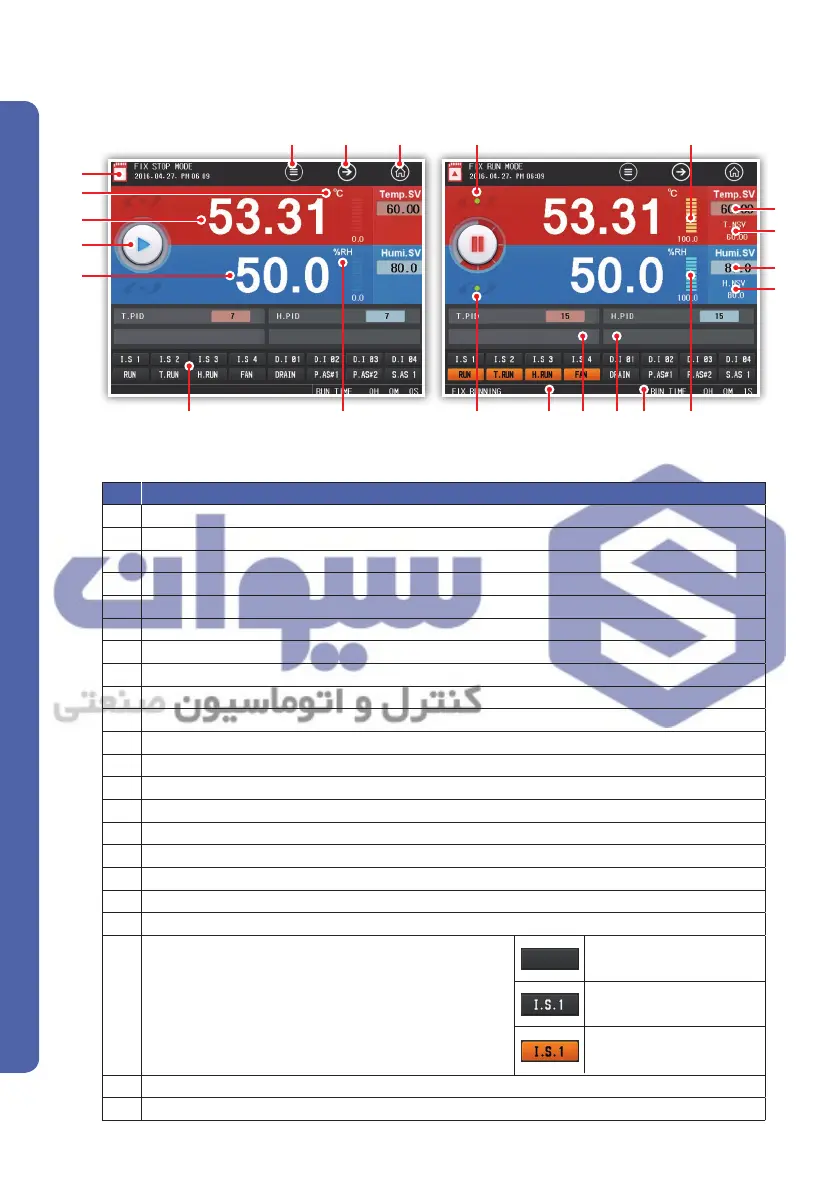

Fig. 11) Fix stop mode Fig. 12)Fix run mode
▶ Fixed control screen 2
PWR No setting in status lamp
IS1 set in status lamp,
IS1 does not occur
RLY1 ~
RLY8
IS1 set in status lamp,
IS1 occurs
NO. Description
1 Show the SD card status
2 Execute the hidden menu window. To cancel the menu window, clic the same part again
3 Move to the Operation 3rd screen (Graph Viewer screen)
4 Move to Main Menu screen
5 Show the temperature Present value (PV)
6 Show the temperature unit
7 Show the temperature control output (MV)
8 Input the temperature Target Set Value (TSG)
9 Show the temperature present set value (NSV). Show only during operation
10 Show the temperature increase/decrease/maintenance status
11 Show the humidity Present value (PV)
12 Show the humidity unit
13 Show the humidity control output (MV)
14 Input the humidity Target Set Value (TSG)
15 Show the humidity present set value (NSV). Show only during operation
16 Show the humidity increase/decrease/maintenance status
17
Temperature PID number input window. Only if the zone selection mode is MANUAL it can be changed
18
Humidity PID number input window. Only if the zone selection mode is MANUAL it can be changed
19 Start/Stop button
20
Show the status lamp of the input/output signal. The
second status lamp window appears by clicking the
Show part (show max 32, max 16 in one screen).
* The status lamp shown in the operation screen can
be set on (Main Menu)-(System Menu)-(System)-
(Status lamp)
21 Show a status message about the overall operation
22 Show the operation time
② ⑩ ⑦③ ④
⑫ ⑯⑳ ㉑ ⑰ ⑱ ㉒ ⑬
①
⑥
⑤
⑪
⑲
⑧
⑭
⑨
⑮
