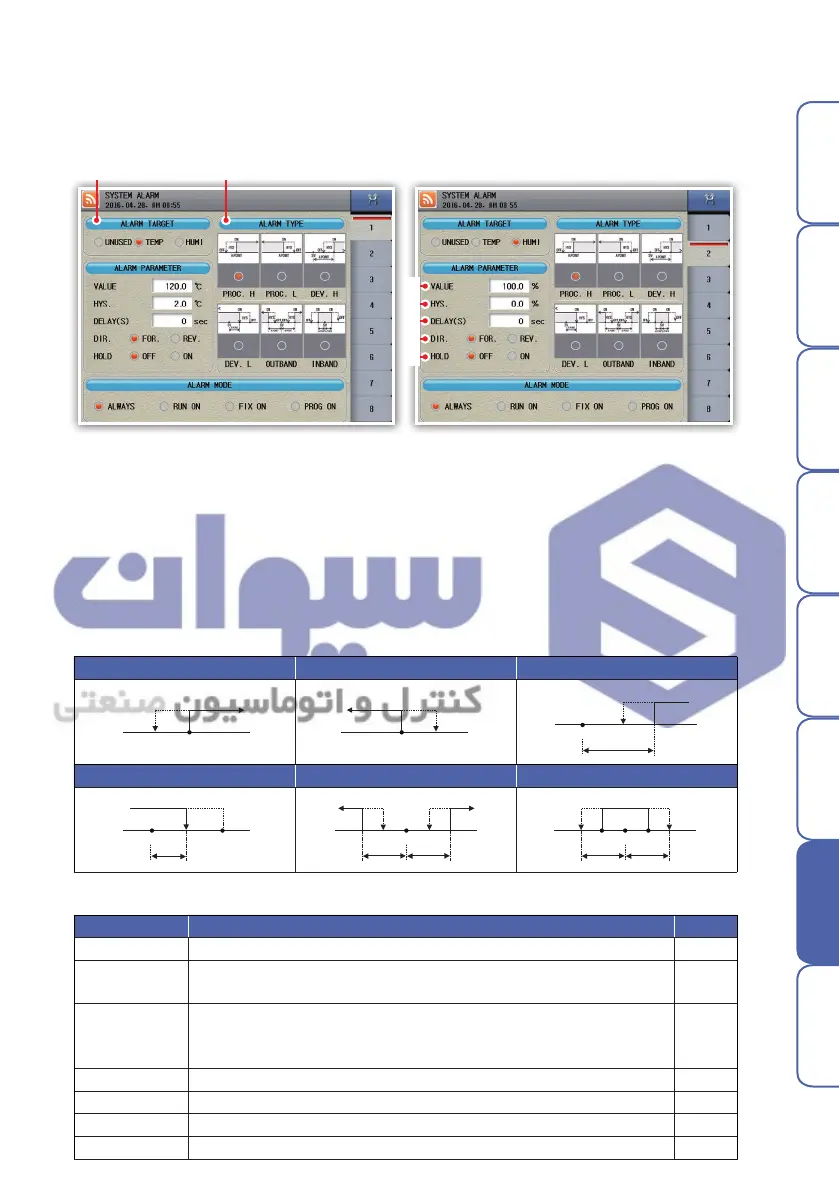

Temperature/humidity alarm set screen. Totally 8 alarm signals setting possible.
▶ Alarm setting
6. System alarm
1. Select an alarm target. 2. Select an alarm type.
3. Set a setting value(offset). 4. Set hysteresis.
5. Set delay. 6. Set direction of alarm. NORMAL OPEN or NORMAL CLOSE
7. Set hold function.
8. Set alarm conditions.
- Always : Alarm is always provided.
- During operation : Alarm is provided only during operation.
- Constant value : Alarm is provided only during constant-value operation.
- Program : Alarm is provided only during program operation.
[System alarm parameter]
Parameter Setting Range Default
Alarm target Disable, Temperature, Humidity Disable
Alarm type
Absolute upper limitation, Absolute lower limitation,Deviation upper
limitation,Deviation lower limitation,Outside the range, Within the range
0
Setting Value
(Deviation)
Absolute upper limitation, Absolute lower limitation: EU(0~100)/0Deviation
upper limitation, Deviation lower limitation: EUS(-100~100)/0.0
Within the rage, Outside the range: EUS(0~100)/0.0
0.0
Hysterisys EUS(0 ~ 100) 0.0
Delay(Min.) 0 ~ 9999 0
Alarm direction Direct, Reverse Direct
Hold On/Off Off
Fig. 93) System alarm – Temperature Fig. 94) System alarm - Humidity
