1. Sensor type
- Select a sensor type. It can't be changed when it is being saved.
- If the type of sensor is changed, related parameters(use range) are initialized so set the type of
sensor first.
2. Use range
- Enter range values to use. It can't be changed when it is being saved.
3. Input filter
- Enter a digital filter value of input.
4. Burn-out range setting
-Operators can set burn-out range.
-For example, if operator set '10' with the temperature range -100~200,
the equipment stops when the temperature is outside the range
▶ Temperature/Humidity Settings
1. Sensor input setting
1. DCV input upper/lower limit
- If the sensor is DCV, define the input value of DC voltage. It can't be changed when it is
being saved.

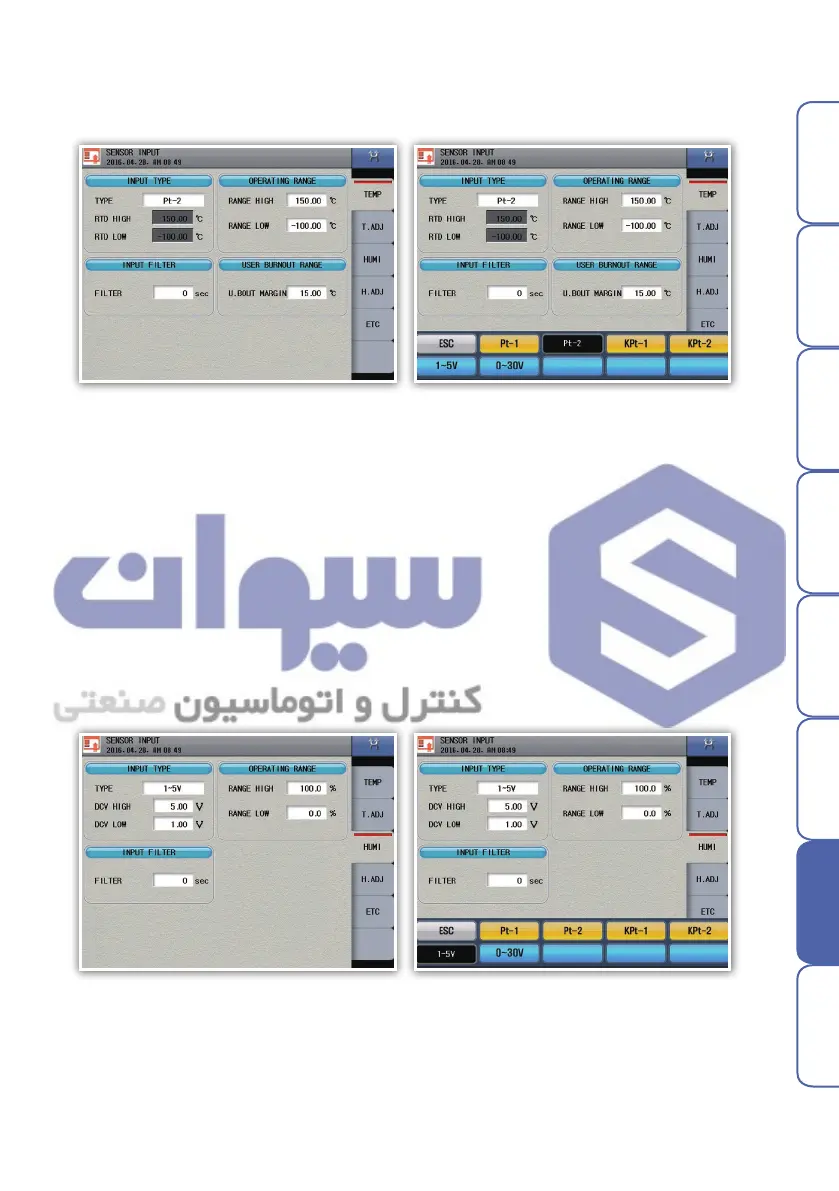

Fig. 60) Temperature sensor change
Fig. 62) Humidity sensor setting
Fig. 61) Temperature sensor change
Fig. 62) Humidity sensor change
