HANYOUNG NUX TH510 Series - Page 52

Programmable Temperature & Humidity Controller
50
● Temperature
● Humidity settings
Parameter Setting range Default
Sensor Type Please refer to the table of temperature range by sensor type PT-2
RTD High setting limitation/
DCV Input High setting limitation
RTD only available with the default setting/DCV sensor range RTD upper limit
RTD low setting limitation/
DCV input low setting limitation
RTD only available with the default setting/DCV sensor range RTD lower limit
Temperature Range Upper-limit -99.99~150.00 150.00
Temperature Range Lower-limit
-100.00 ~ 149.99 -100.00
Input filter -0~120 Sec. 0 sec
User burn-out 0 ~ 50 ℃ 15℃
Parameter Setting range Default
Sensor Type Please refer to the table of temperature range by sensor type 1 - 5 V d.c.
RTD High setting limitation/
DCV Input High setting limitation
RTD only available with the default setting/DCV sensor rang e
DCV high
setting limitation
RTD low setting limitation/
DCV input low setting limitation
RTD only available with the default setting/DCV sensor range
DCV low setting
limitation
Temperature Range Upper-limit -0.1 ~ 100.0 100.0
Temperature Range Lower-limit 0 ~ 99.9 0.0
nput filter 0 ~ 120 sec 0 sec
•Compensation on a certain point is changing the grade,
users shall set the value according to their purpose and usage.
Caution
1. Compensation Value
- Calibrate the difference between the indicated temperature on the device and the actual temperature.
2. Compensation by the range
- Used when compensation in a certain temperature range required
- Set the temperature or humidity range requiring compensation
- Set the offset value in each temperature or humidity range.
▶ Temperature/Humidity compensation
Parameter Setting Range Default Value
Compensation value 온도 EUS (0 ~ 100) 0
Compensation value at a certain temperature -50.0 ~ 50.0 0

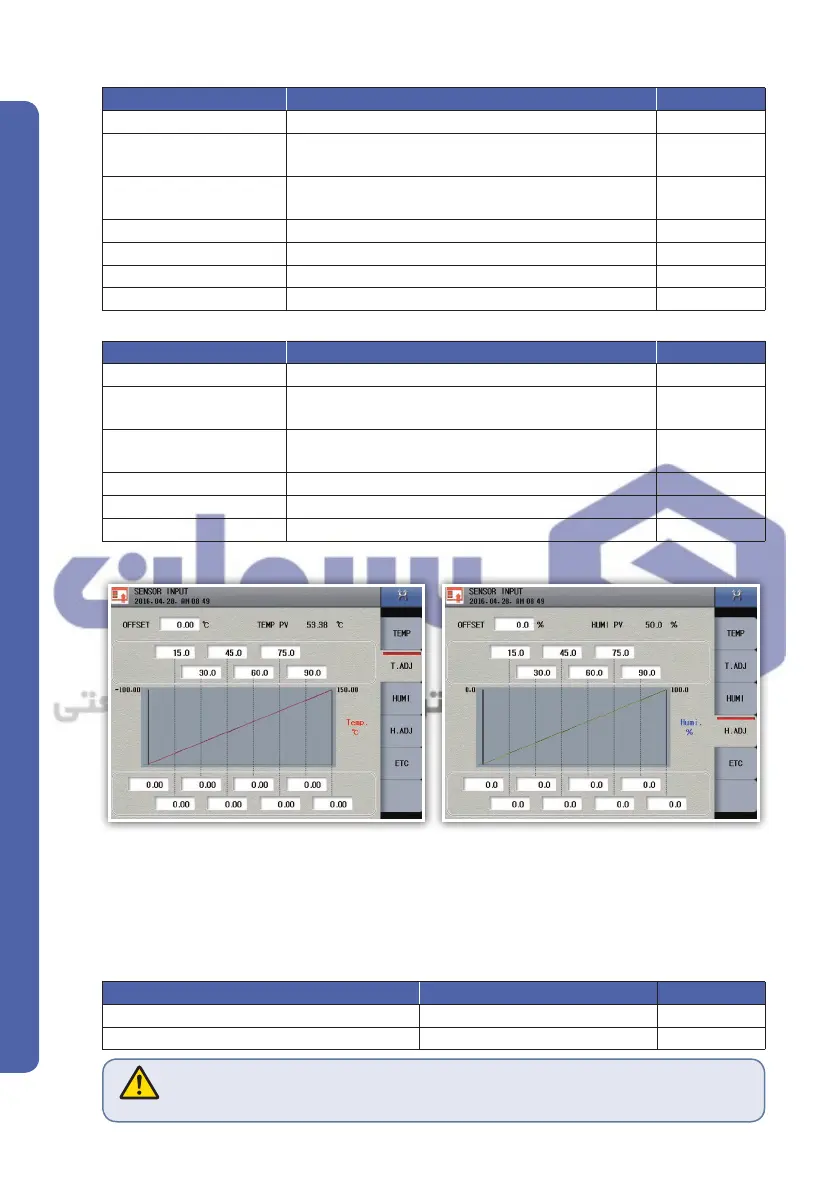

Fig. 64) Temperature compensation Fig. 65) Humidity compensation
