17
Before starting Installation
Operation
Screen block
diagram
Function setting Program System setting Specifications
Screen block diagram

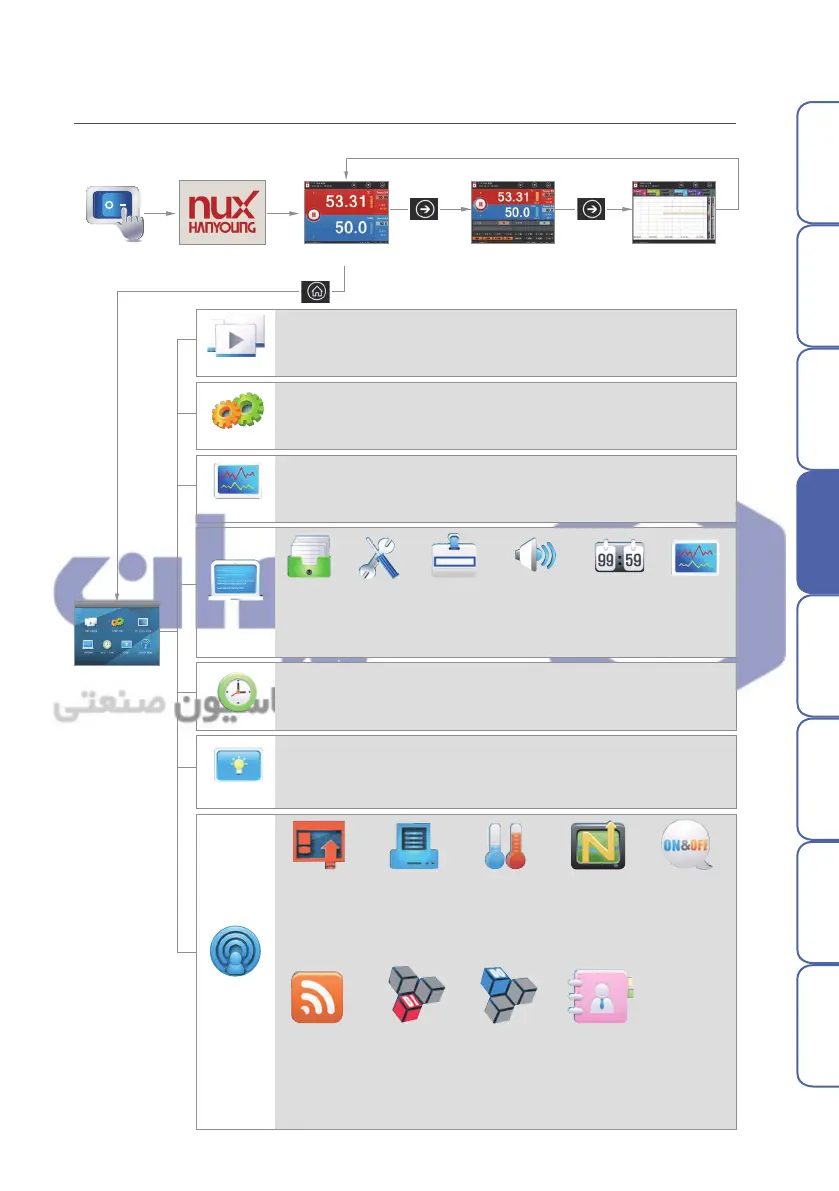

1. Screen block diagram
Splash
Power ON
Operation screen1 Operation screen2 Graph view screen
Menu screen
Saved graph view and copy data from internal memory to SD card
PV graph view
Current time setting and weekly scheduling
Time/schedule setting
Display/Delete event history and save to SD card
Event
Operation screen1, Operation screen2, and Graph view screen
Operation screen
Operation setting
Operation setting : Constant-value/program, change rate, fuzzy, and channel tag settings
Function setting : Power saving operation, buzzer, recovery of power failure,
operation screen, and switch time settings
Save setting : Save interval, media, and parameter upload/download settings
Graph : Background color and file save name
System menu
Program
Pattern setting
Edit
pattern
Time signal
setting
Time setting
ON/OFF
Pattern alarm
setting
Target,
type, and
parameter
Pattern name
setting
Edit pattern
name
Pattern
management
Copy/Delete
pattern
information
Pattern
graph
Sensor input
System alarm
Control/
transmission output
DI configuration
PID setting
DO configuration
Inner signal
System
ON/OFF signal
Sensor type
calibration
Target and type
ON/OFF signal
Target, type, and
operation range
Language, product
specifications,
communication
setting, and memory
PID section
setting at gain
Relay No. and
parameter
settings
Control output
Transmission output
Input state,
operation type,
operation method,
and name
