Programmable Temperature & Humidity Controller
60
Temperature
Time
Temperature
Time
Temperature
Temperature
Time
Time
I/S1 : Temperature PV2 operation setting
Operation range : 50 ± 10 (℃) setting
Direction of range : Ascending HYS operation
I/S2 : Temperature PV2 operation setting
Operation range : 50 ± 10 (℃) setting
Direction of range : Descending HYS operation
Temperature
Time
Temperature
Time
Temperature
Temperature
Time
Time
I/S1 : Temperature PV2 operation setting
Operation range : 50 ± 10 (℃) setting
Direction of range : Ascending HYS operation
I/S2 : Temperature PV2 operation setting
Operation range : 50 ± 10 (℃) setting
Direction of range : Descending HYS operation

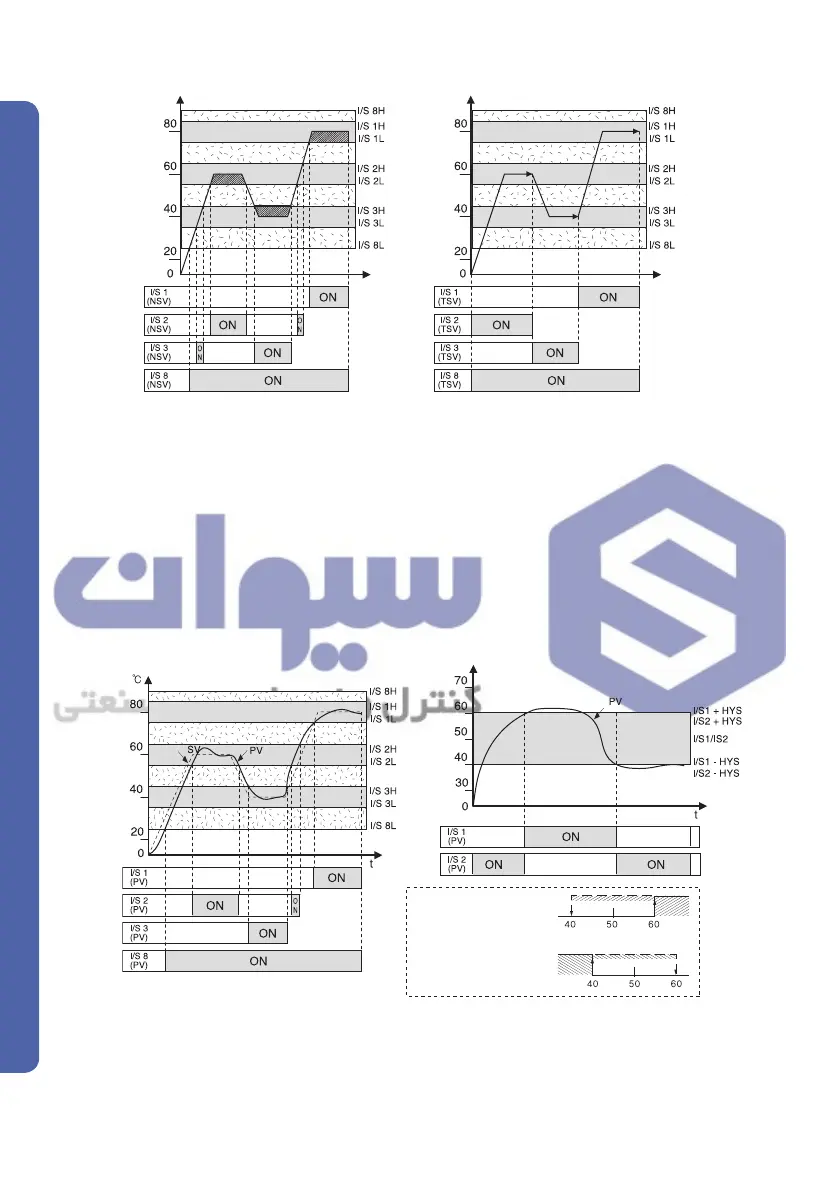

Fig. 81 is an example of setting inner signal(I.S) NSV. Inner signal No. 1 - 3 and 8 are set with
temperature, NSV, and Within range so that the inner signal is turn on or off according to change of
current setting value(SV).
Fig. 82 is an example of setting inner signal No.1 - 3 and 8 with temperature, TSV, and Within range.
Based on TSV as a target setting value, the inner signal is turned on/off to show difference with NSV.
Fig. 83 is an example of setting inner signal No.1 - 3 and 8 with temperature, PV1, and Within range,
and Fig. 84 is an example of setting inner signal No.1 and 2 with temperature, PV2, and type to set
ascending/descending.
Fig. 84) Example of inner signal setting (NSV)
Fig. 86) Example of inner signal setting (PV1)
Fig. 85) Example of inner signal setting (TSV)
Fig. 87) Example of inner signal setting (PV2)
