Screen block
diagram
Function setting Program System setting Specifications
Indication value
Time
Target set value
Sub-SV
Start of fuzzy
inference
① Control brightness of LCD screen in 8 steps. Press “◀” to dim it and “▶” to brighten it.
② Function to turn off the back light after set time in order to protect the LCD. Time can be set by
minute and set "0" to disable it. In the energy-saving mode, touch the screen to wake it up.
③ Select an operation type to recover from power failure.
※ Run the normal operation when momentary power failure occurs within 5 seconds
④ Turn on/off buzzer for input and operation confirmations.
⑤ Use to limit the touch panel input. Only operation screen and move buttons enabled.
If password set in [System setting] – [System], enter the password to change it.
⑥ Use to limit entering to main menu. When trying to enter the main menu, password input box is
prompted if any. Set "0" to disable it.
⑦ Change the name of user-defined button. If the language is Korean,
use Caps to enter “Korea -> English upper case -> English lower case”.
If the language is English/Chinese, “English upper case -> English lower case” can be entered.
▶ Function setting
Parameter Constant-value control Program control
STOP
Stopped Stopped
COLD
Start operation with
existing setting value.
Start operation from the 1st segment.
HOT
Start operation from the segment that was selected before blackout.

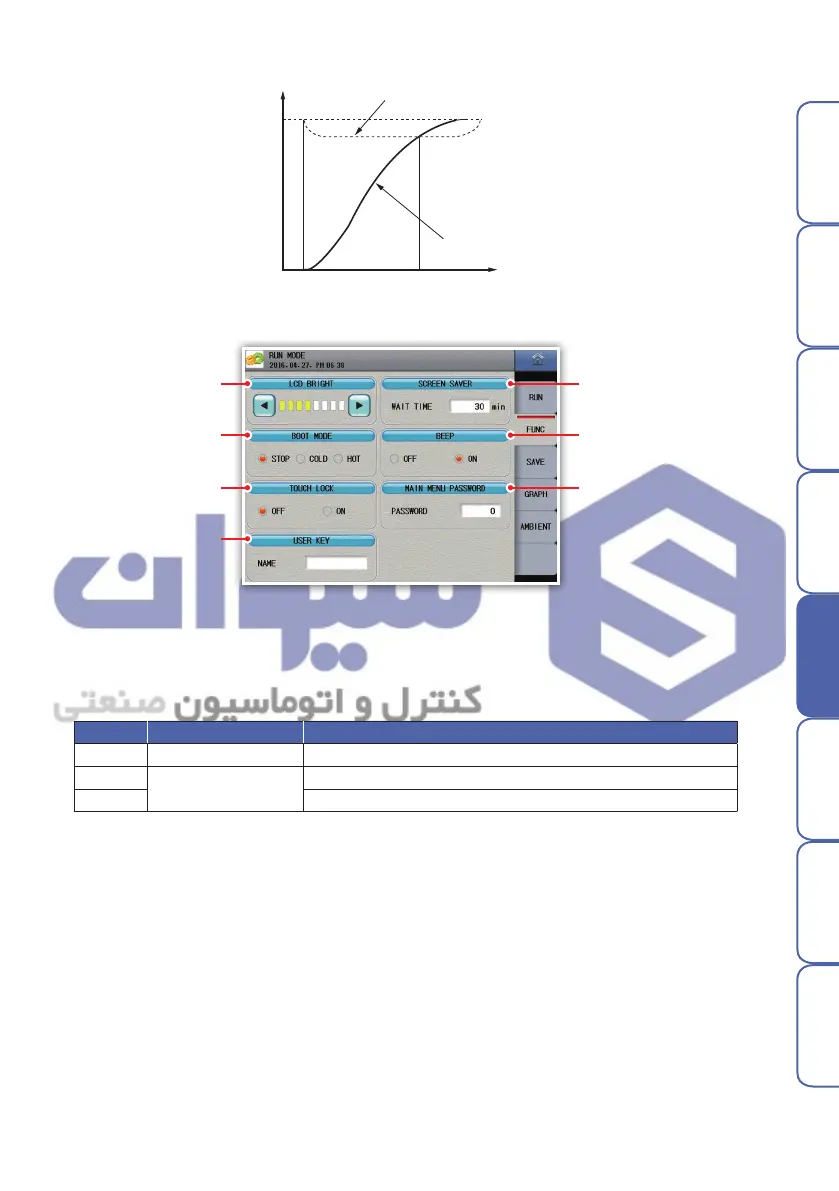

Picture 27) function setting
