Programmable Temperature & Humidity Controller
34
①
②
③
④
⑤
⑥
①
②
③
④
⑤
⑥
⑦
No. Description
1 Go to max value of data.
2 Go to previous pixel. Press and hold it to move by 10 and 20 pixels.
3 Go to next pixel. Press and hold it to move by 10 and 20 pixels.
4 Go to min value of data.
5 Scale up size scale. Scale factors are x1, x2, x4, and x8.
6 Scale down size scale. The smallest scale factor is x1.
No. Description
1 Select a file.
2 This is the name of saved file. The name can be changed in "Graph of operation setting."
3 Go to previous page.
4 Displays graph of selected file.
5 Deletes a selected file.
6 Cancels selection.
7 Go to next page.

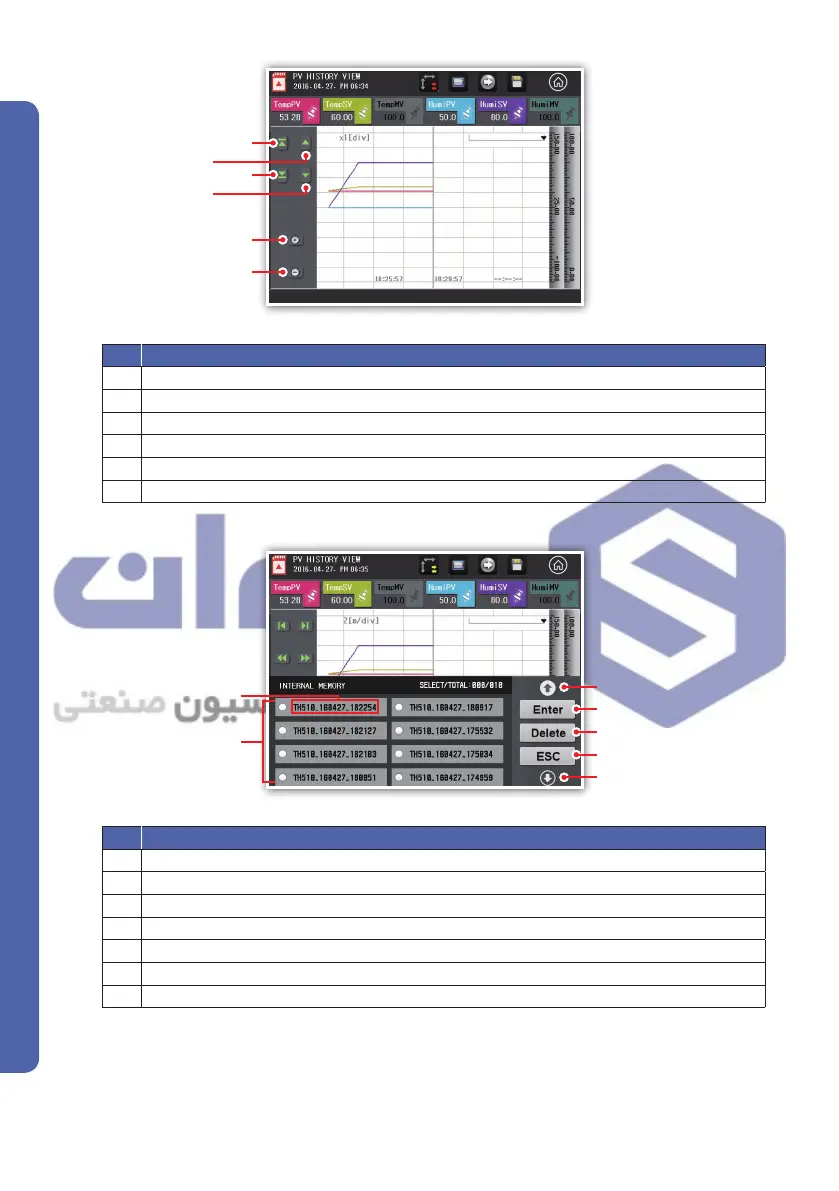

Fig. 38) PV graph view – Size scale
Fig. 39) PV graph view – File selection pane
