Note the following changes when UCR is used.
Menu [3.3.1 Width]Menu [3.3.1 Width]
Menu [3.3.1 Width]Menu [3.3.1 Width]
Menu [3.3.1 Width]
The width is defined as the number of rows the sprayer can cover. This is
readout only and can not be changed. It is a result of the data in menu

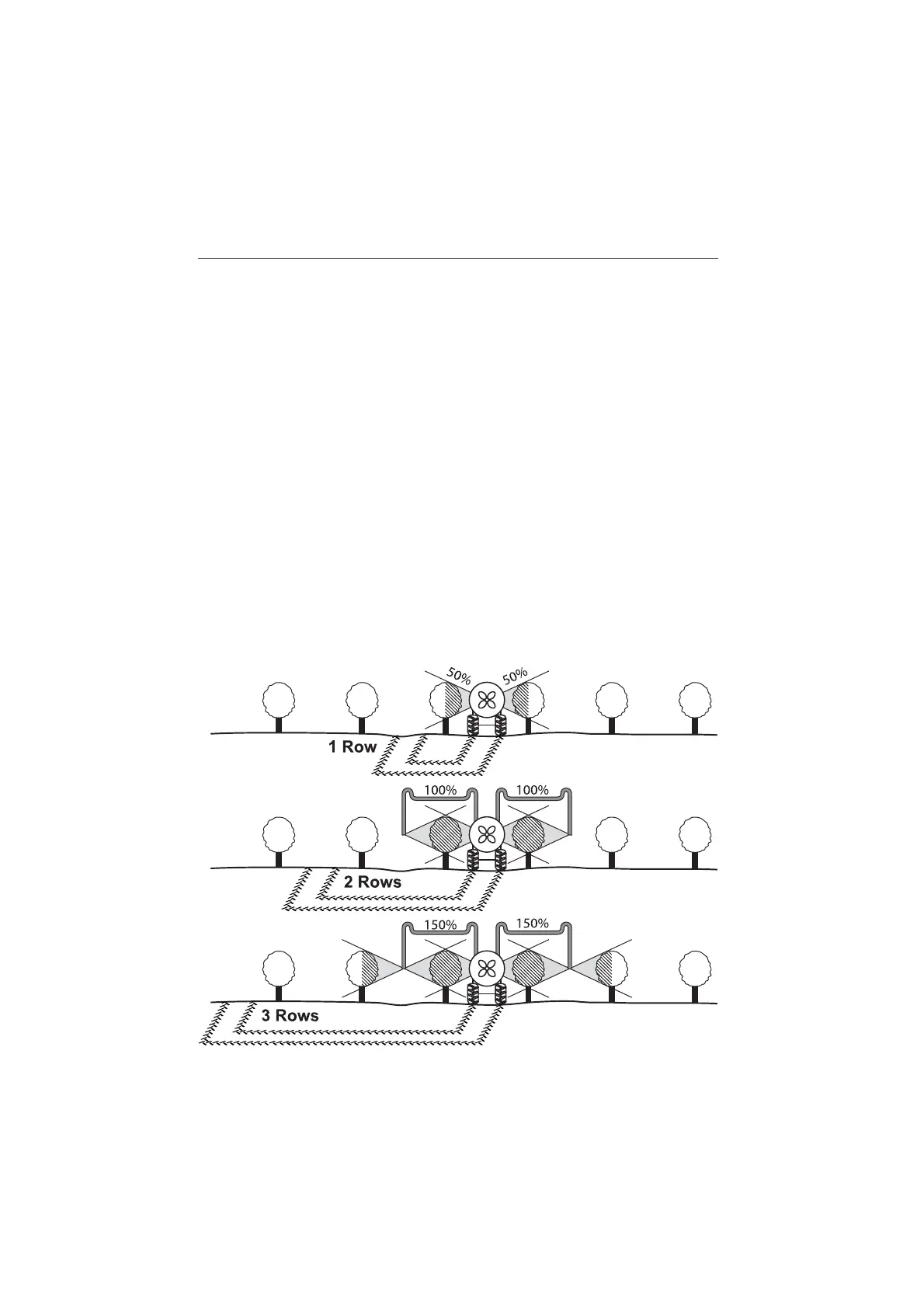

3.3.3. See below diagram on row coverage definition.
Menu [3.3.2 Number of sections]Menu [3.3.2 Number of sections]
Menu [3.3.2 Number of sections]Menu [3.3.2 Number of sections]
Menu [3.3.2 Number of sections]
This describes the controls of the orchard sprayer. Typically, they have 2, a
left and a right.
Example:
Orchard sprayer with 2 section Spray box that is capable of spraying two
complete rows.
Menu [3.3.2 Number of sections] = 2
Menu [3.3.3 Section size] = 100%
Menu [3.3.1 Width] is readout only and it will show “2 rows”.
Menu [3.3.3 Section size]Menu [3.3.3 Section size]
Menu [3.3.3 Section size]Menu [3.3.3 Section size]
Menu [3.3.3 Section size]
Section width is entered in % row coverage. If a section covers half a row,
the section coverage must be set to 50%. If a section covers 2 rows, the
width must be set to 100% per section.
