4. Set-up and initial operation

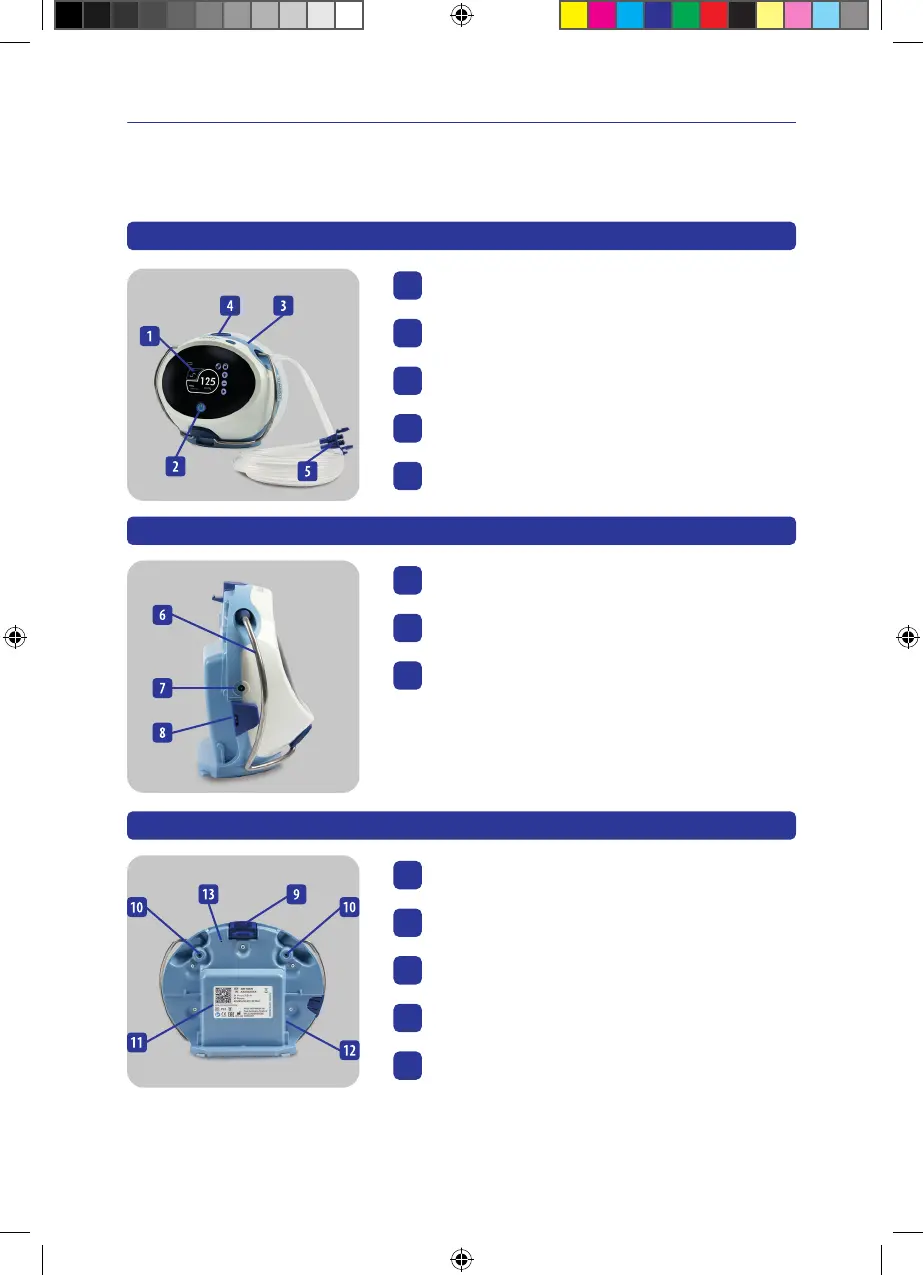

4.1 Overview of the device
Front side
1 Touchscreen (touch-sensitive display)
2 On/Off switch
3 Exudate canister (not part of scope of delivery)
4 Exudate canister unlock key
5 Connector
Side view
6 Hanger bar
7 Charging socket
8 USB port
Rear side
9 Exudate canister unlock key
10 Exudate canister connections
11 Type plate
12 Canister guidance
13 Exhaust air opening (device dependant)
Applied parts of the device: VivanoMedAbdominalKit, VivanoMedFoamKit, VivanoMedRoundDressingKit, VivanoMedThinDressingKit, VivanoMedFoam, VivanoMedWhiteFoam,
VivanoMedGelStrip, Hydrofilm transparent film dressing, VivanoTecPort
Accessible parts of the device: Power supply, front cover, back cover, exudate canister unlock key, On/Off switch, USB cover, base plate and hanger bar, DC connector,
VivanoTecExudateCanister, VivanoTecY-Connector
