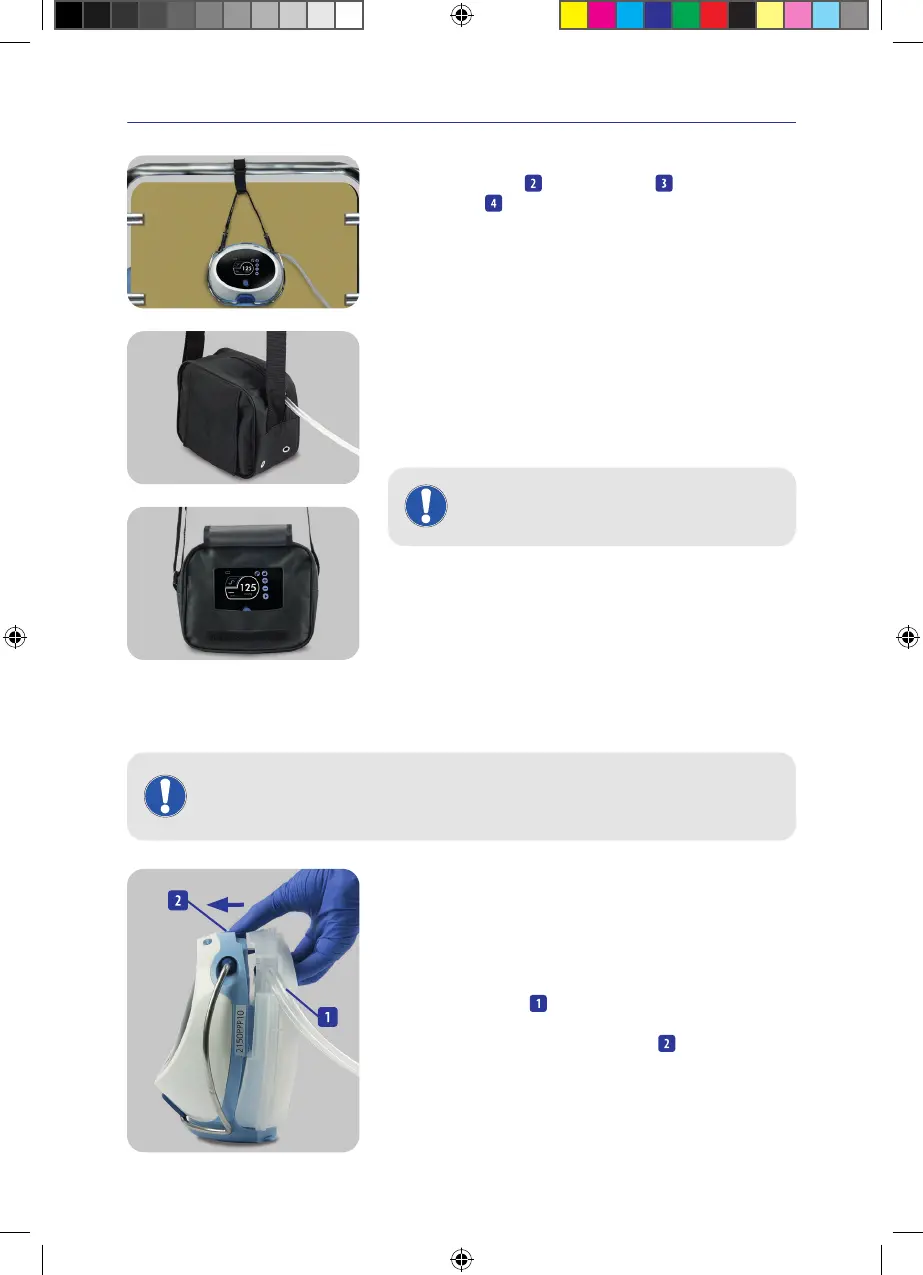

Attaching the negative pressure unit to the patient’s bed
> Unhook the strap clip
and hook in the clip �
> Place the loop
around the bed rail and close it�
Carry bag
> Insert the negative pressure unit with the installed 300ml exudate
canister into the carry bag�
> Close the carry bag at the top using the zip fastener�
> Lead the canister tubes out of the top through the opening in the
zip fastener�
IMPORTANT!
Do not catch the tube in the zip fastener�
The display of the negative pressure unit can always be seen through the
viewing window.
4.5 Exudate canister
The activities in this chapter may be carried out only by a physician or a qualified person�
IMPORTANT!
The exudate canisters of the negative pressure unit are sterile components and can therefore be used in
a sterile surgical environment�
Inserting the exudate canister
> Carefully remove the exudate canister from the sterile peel pack�
Caution.
The attached tubing piece must not be allowed to fall onto a non-sterile
surface.
> Insert the exudate canister at a slight angle into the guidance on the
negative pressure unit
�
> Tilt the exudate canister in the direction of the negative pressure unit
until it fully engages with the blue unlock key
�
> Pull gently on the exudate canister to make sure that it is securely
attached to the negative pressure unit�
Please make sure that the exhaust opening is not covered while the therapy
is running.
