HAWEKA AXIS 500 - Alignment of Straight Ahead Position

Wheel Alignment AXIS500
AXIS500 Manual Instructions
18
Front Wheel Alignment
Fitting of magnetic scales (continued)
• Switch on left-hand laser.
Pay attention to laser beam output
opening before switch on!
• Turn left-hand laser until the laser point gets
visible on the scale.
5.2 Alignment of „Straight ahead position“
• Should the laser point on the left-hand scale not
point at zero, turn steering wheel until the value
indicated on the scale is halved. Laser points on
the same value on both scales.

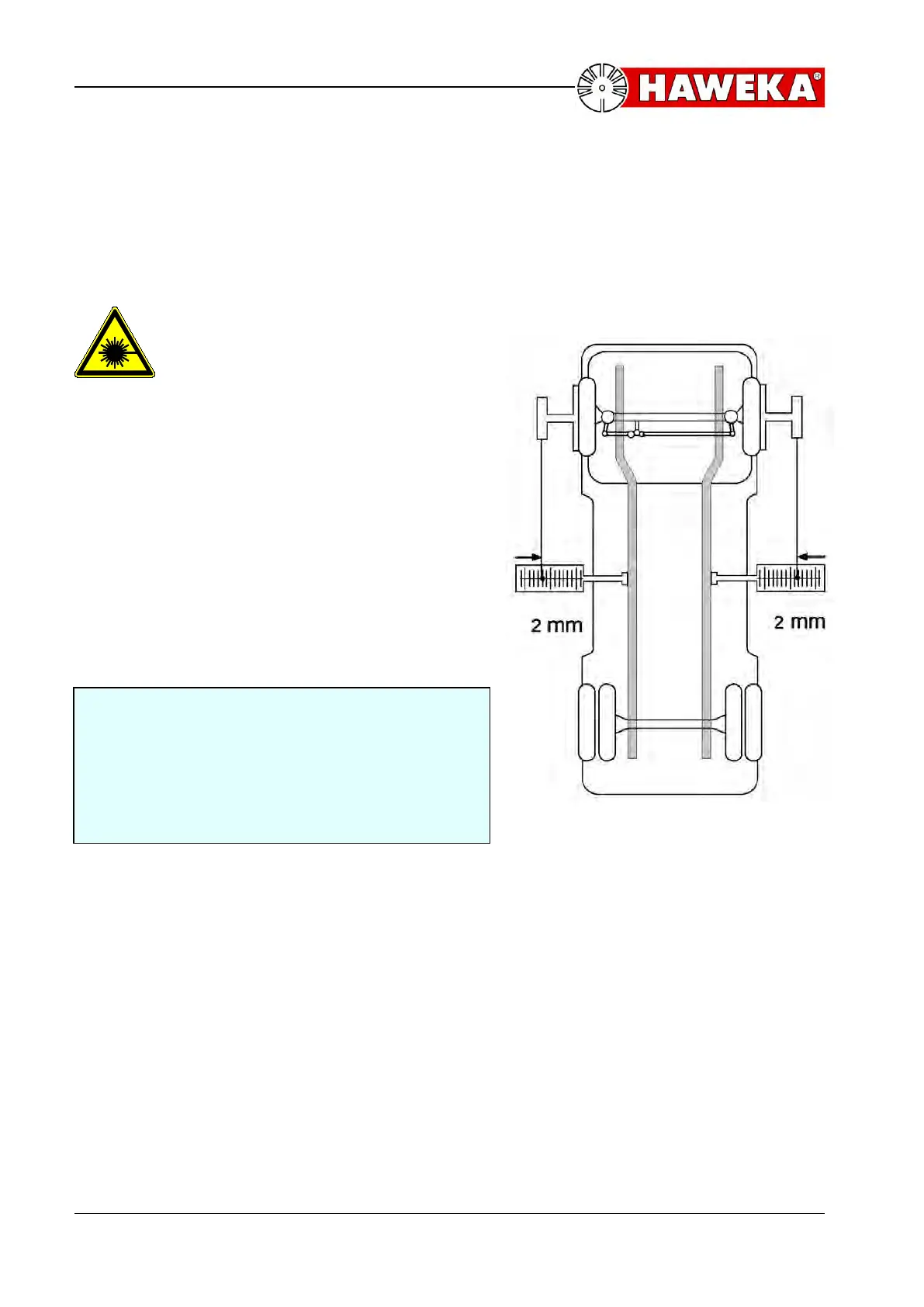

Example:
Indication right: 0
Indication left: 4 scale lines out
Turn steering wheel until both laser points
point
at 2 scale lines outward(Illustration 4)
Now the front wheels are in alignment with the
frame, seen in driving direction.
• Adjust magnetic scales with the wing nuts
until both laser points point at zero.
This procedure is important for all following measurements.
(Illustration 4)
