HAWEKA AXIS 500 - Axle Mismatch Diagram 1

Wheel Alignment AXIS500
AXIS500 Manual Instructions
45
Annex

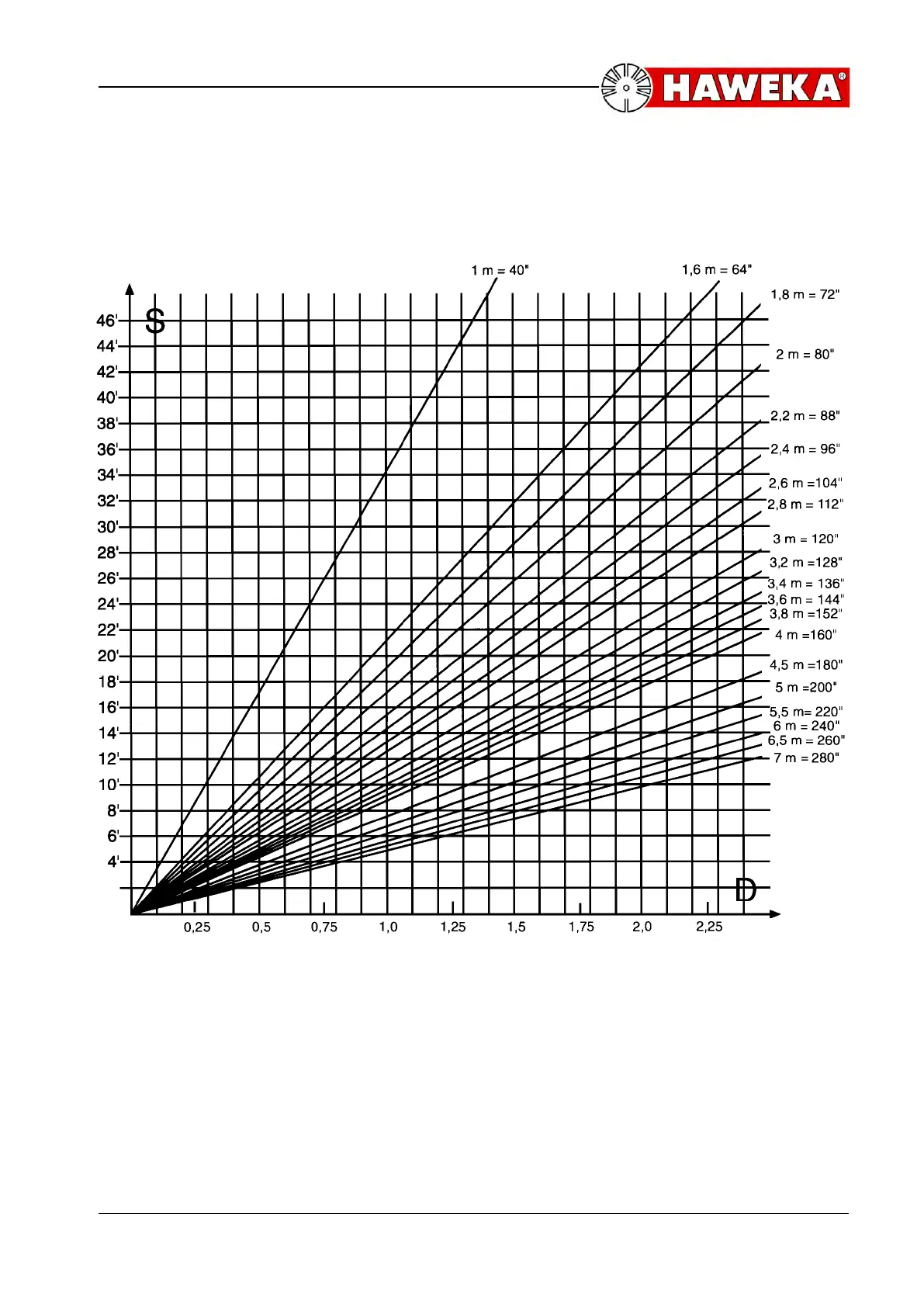

13.2 Diagram for Determination of Axle Mismatch (optical measurement) Dia. 1
S = Mismatch (in minutes)
D = Halved difference on scale blocks (in mm)
R = Wheel base (in meters)
