Rear Wheel Alignment
6.3 Measurement of Axle Mismatch in relation to the Frame:
• After toe measurement leave the measuring
heads installed on the wheels
• Fix a single magnetic scale on the left
(driving) side of the vehicle frame above the
wheel.
• Direct the left laser point toward the scale
and set the scale to zero.
Move the magnetic scale to the other side of the
vehicle at exactly the same position and direct
the laser point towards the scale. The value
indicated is the "axle mismatch". The actual
mismatch is this value halved.
Remark:
Remember the actual value for this axle
mismatch to complete the axle inclination
measurement (point 6.4)!
• Repeat this measuring procedure with all
other rear axles.

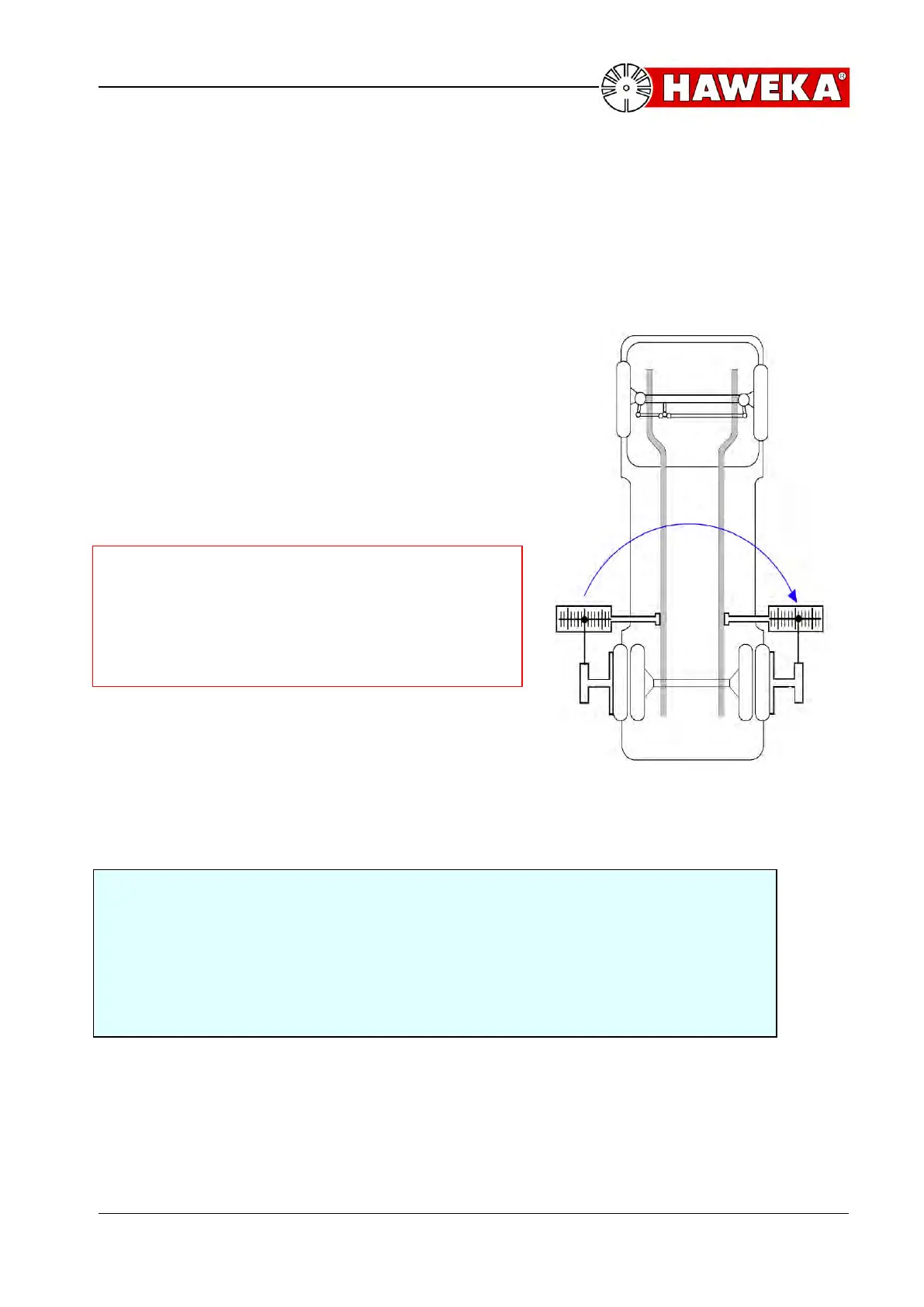

Example, illustration 24,
First, on left side of vehicle set magnetic scale to 0 Then, move magnetic
scale to right side of vehicle where magnetic scale value shows the axle
mismatch. This value must be halved to obtain the true deviation. Therefore,
for this example half the measurment from the first long line on the scale that
represents 1 centimeter is the axle mismatch in relation to the frame.
(Illustration 24)
