Front Wheel Alignment
5.6 Camber measurement
If the camber has to be adjusted at the vehicle, this step must be carried
out BEFORE the toe adjustment as the toe changes when the camber is
adjusted.
• Turn the steering wheel until the front
wheels are in „straight ahead position“
(the magnetic scales on the left and
right sides are showing the same
value).

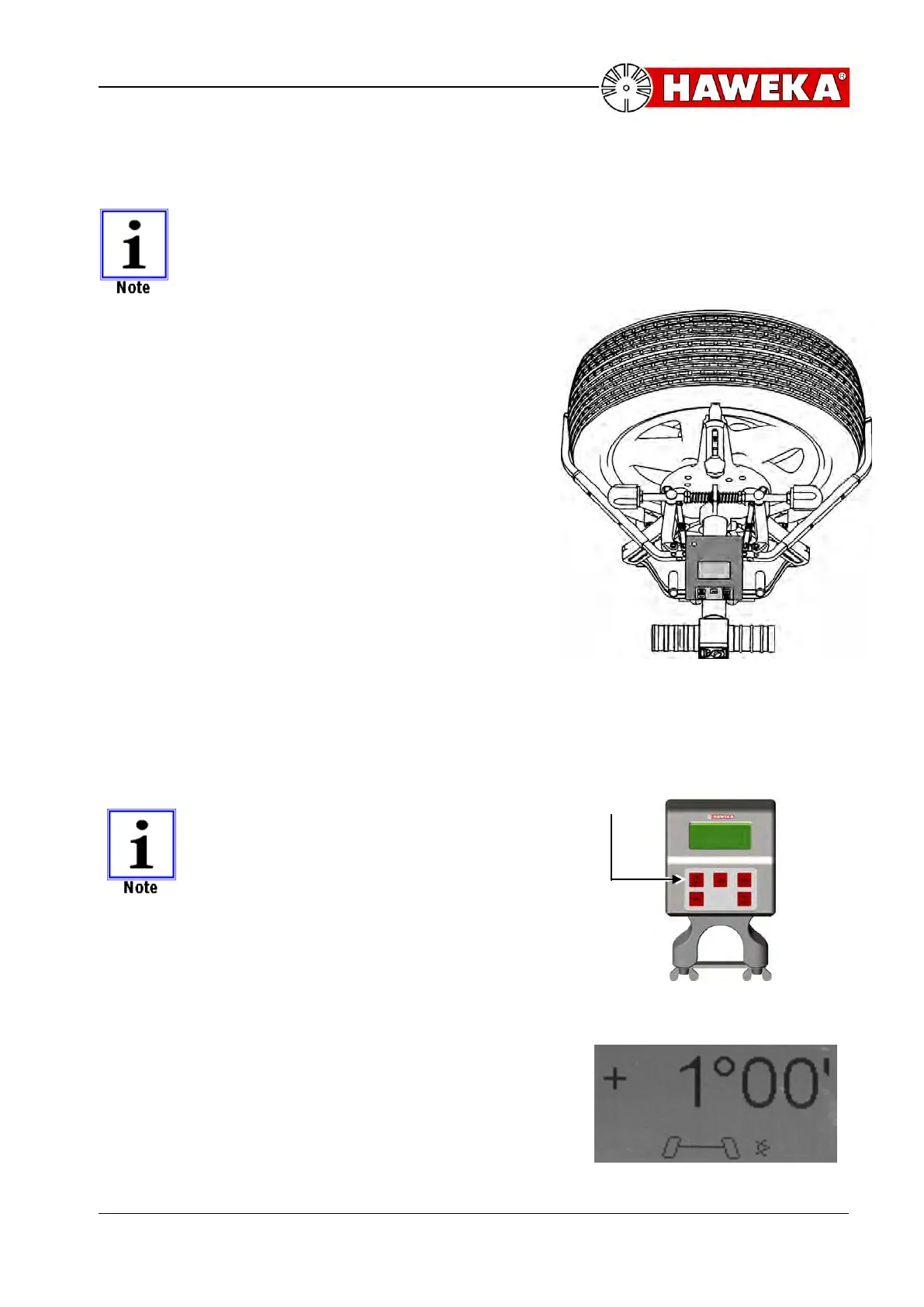

• Put the electronic inclinometer onto the
measuring head shaft and lock with the
knurled screws.
• Switch on the inclinometer using the ON
/ OFF button (Illustration 13).
• After the welcome screen, the current
camber value immediately appears in
the display. Read off the camber value
from the display and enter it in the
measurement sheet. (Illustration 14).
Positive camber value = arrow points upward
Negative camber value = arrow points
downward
For ”freezing“ the actual angle
values, press the ”HOLD”-
button. Now it is possible to
remove the inclinometer from
the measuring column without
changing the results. For new
measurements, press the
“HOLD“-button again.
Repeat the same procedure (after acquiring
all measurements) on the other side of the
vehicle.
