8 Trucks with independent suspensions
8.1 Measurement of Individual Toe -Trucks with Two Adjustable Toe Rods
The mounting of laser measuring heads, fitting
of magnetic scales and set-up of toe scales can
be proceeded as described under point 5.1.
See pages 17-20
Pay attention to laser beam output
opening before switch on of laser
measuring heads!

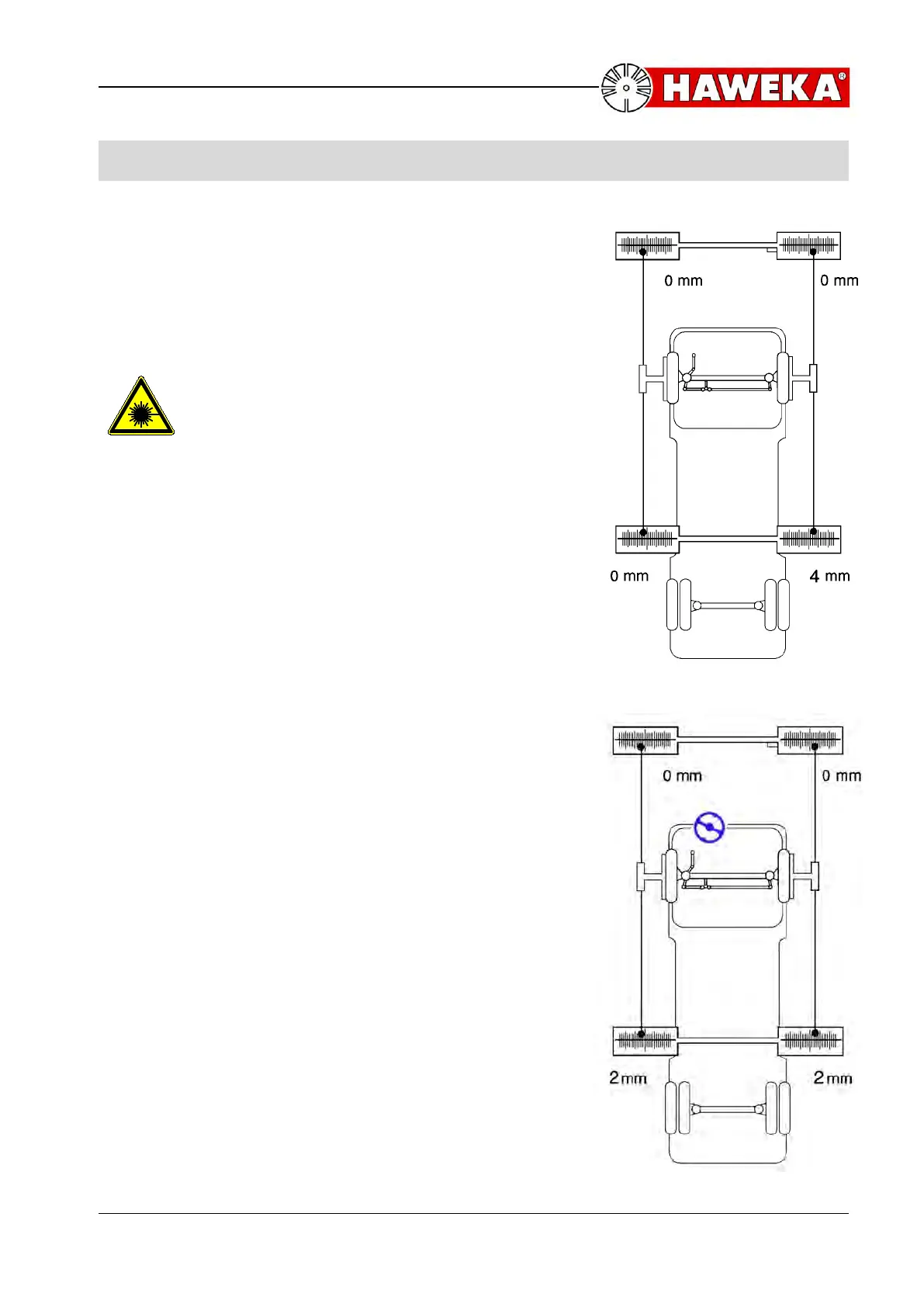

In the present example the total toe of the
vehicle amounts to a toe-in of 4 mm
(illustration 31). The value is read from the
rear right-hand toe scale seen in driving
direction.
(Illustration 31)
Now the rear toe scale is shifted until the
laser point on the left and right-hand side
indicates two long scale lines (illustration 32).
Thereafter the steering is set at „straight
travelling“.
(Illustration 32)
