Alignment of Two Steered Front Axles
Parallel adjustment of both front axles
• Mount the magnetic heads fixed to the
second axle onto the first axle.
• Turn the wheels into straight ahead position
with the steering wheel.
• Set the magnetic scales on the right and
left-hand side at the same value.
• Adjust the front toe scale again. Zero values
must be indicated on front scale. (Illustration
29).
• Set both magnetic scales at zero.
• Detach both measuring heads and attach to
second axle.
• Read value from front toe scale.
Example:
6 long scale lines at the left inward from zero.
6 long scale lines at the right outward from zero.
Mismatch of second axle to first axle
(Illustration 30).
• Loosen connecting rod (drag link) between
first and second axle and turn until the
same value is indicated on the left and right-
hand toe scales.
Important:
Make sure that the „straight ahead position“
value of the first axle is not changed when
adjusting the second connecting rod.
Check:
Take one laser measuring head from the right-
hand side of the second axle and fix it at the
left-hand side of the first axle. The value on the
first axle must also be zero.
(Illustration 29)

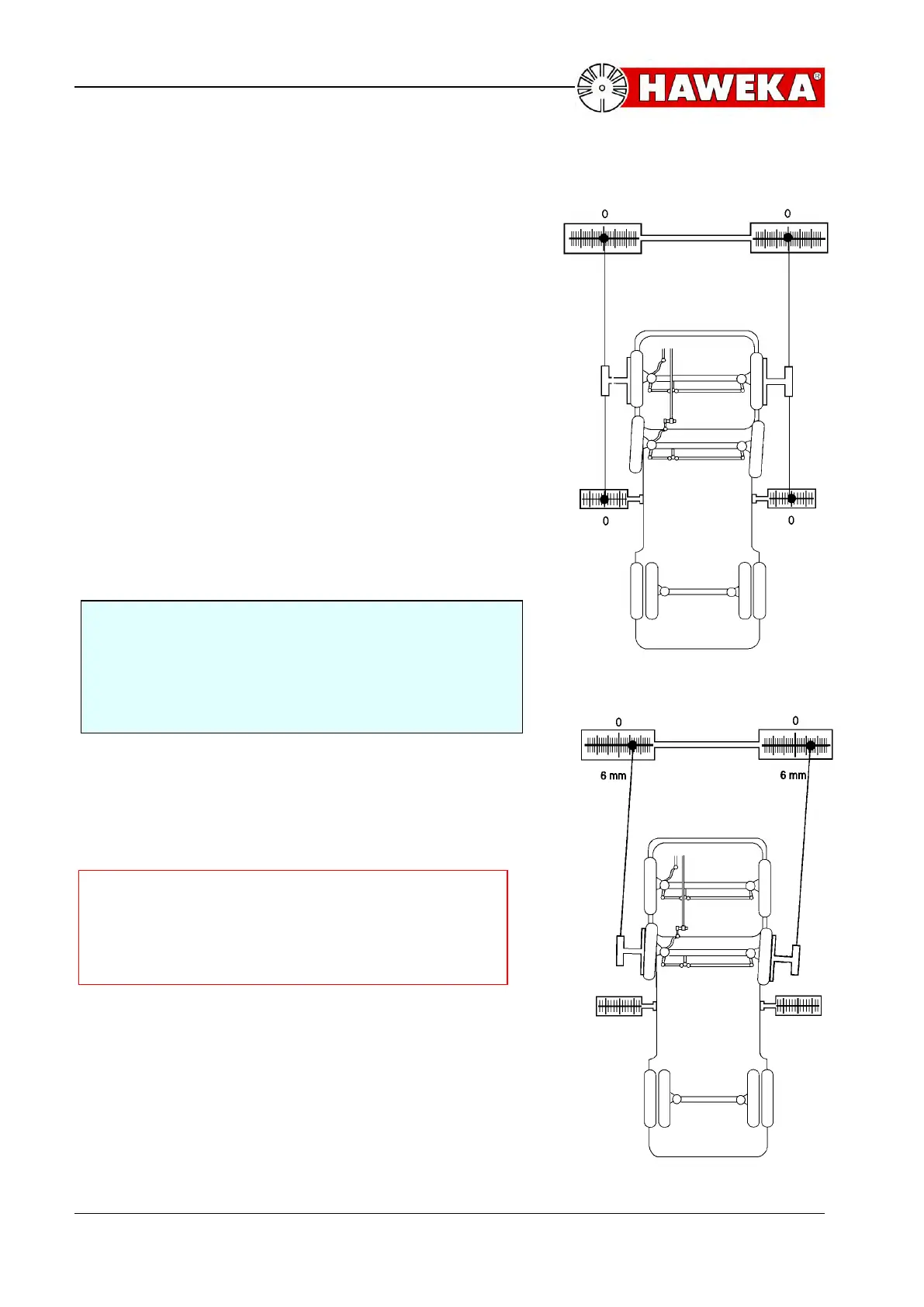

(Illustration 30)
