Wheel Alignment AXIS500
AXIS500 Manual Instructions
Front Wheel Alignment
Toe Alignment:
Example: The desired toe value is zero.
• Loosen the toe rod searing nuts.
• Turn the toe rod until the laser point on the
right-hand side behind the front axle
indicates the halve of the difference (in this
example: 3.5 long scale lines outward).
Now the total toe is zero.
Important:
The position of the laser point on the front left-
hand side toe scale must not be changed -
adjust, if necessary! (Left front wheel at zero)
• To check this, direct the right-hand laser to the
front toe scale. The value measured in front
must be identical with the one measured at the
rear
(3.5 scale lines outward).

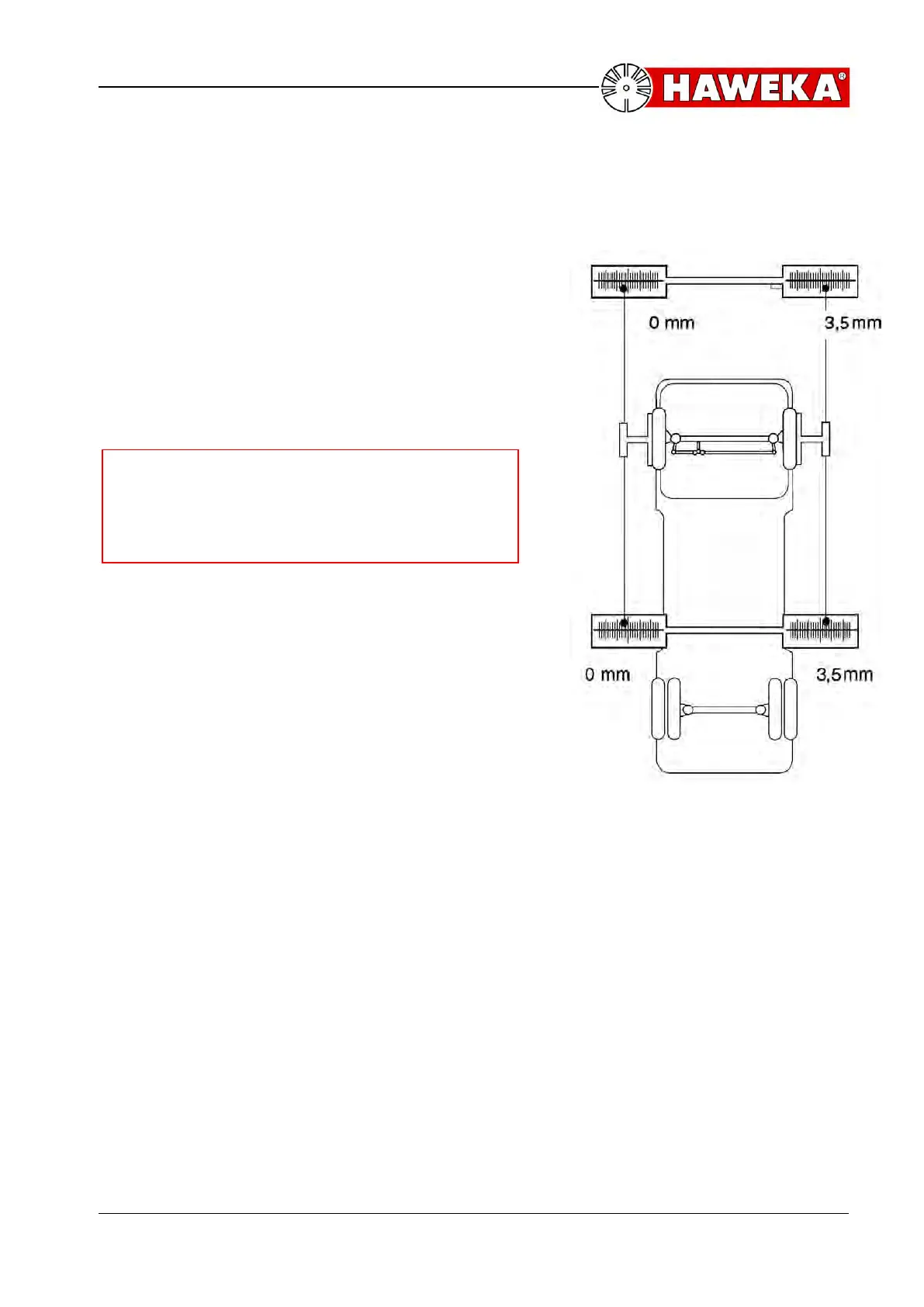

• This results in a toe value of zero (Illustration
9).
• Lock the toe rod searing nuts.
• Then check the adjusted value ! (Illustration 9)
