Wheel Alignment AXIS500
AXIS500 Manual Instructions
Alignment of Twin Steering Front Axles
Toe alignment
Example: The desired toe value is zero.
• Undo the toe rod searing nuts.
• Turn the toe rod until the laser points on the
right-hand side behind the front axle points
at 3.5 long scale lines outward. Now the total
toe is zero.
Important:
The position of the left-hand laser point on the
front toe scale must not be changed- adjust, if
necessary! (Left front wheel at zero)
• To check this, direct the right-hand laser to
the front toe scale. The front value has to be
identical with the one at the rear (3.5 scale
lines outward).
The resulting toe value is zero.
• Lock the toe rod searing nuts.

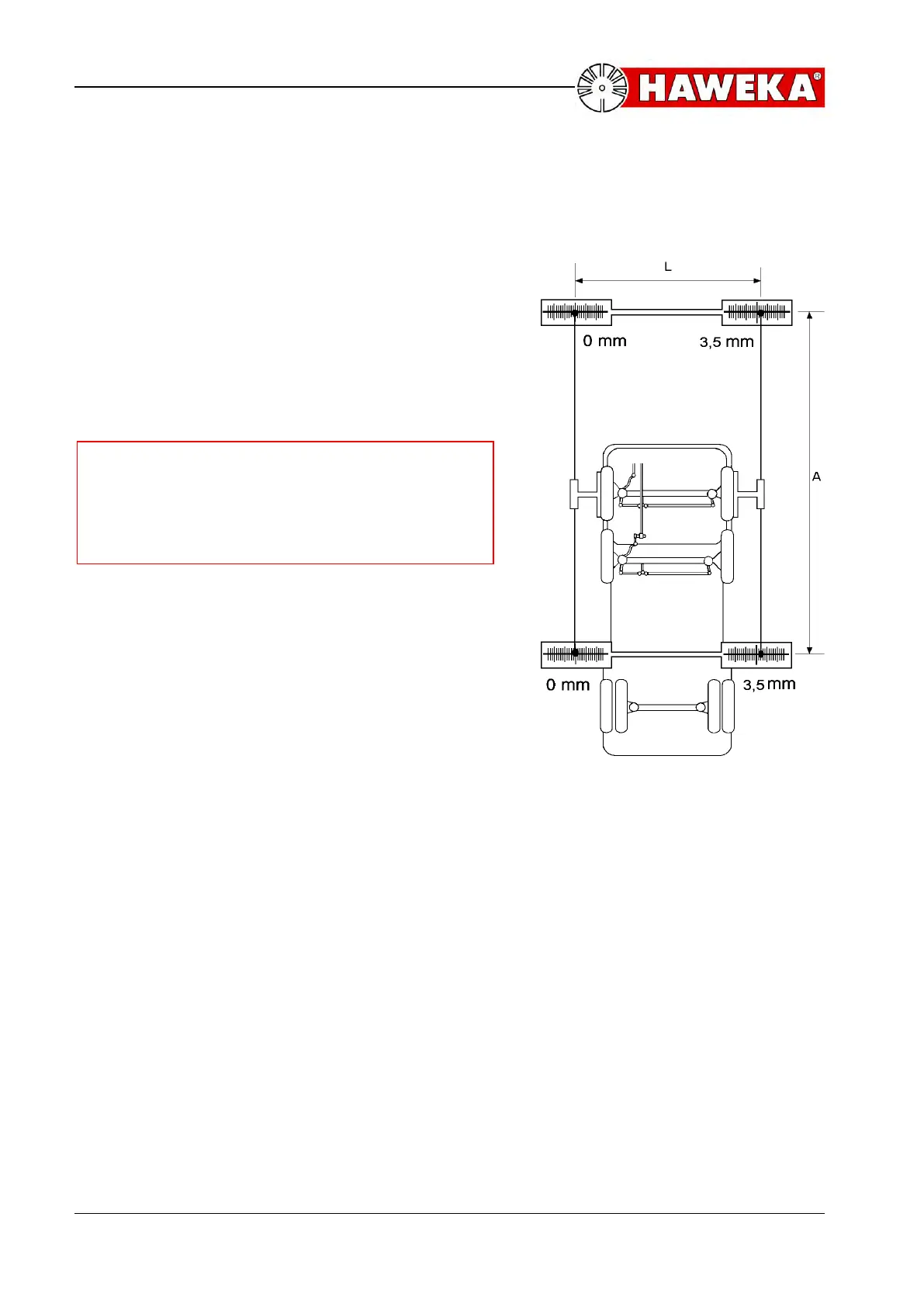

(Illustration 28)
