HBM GEN3i - B3264-3.1 en (GEN Series GN1611)

L.7
B3264-3.1 en (GEN series GN1611)

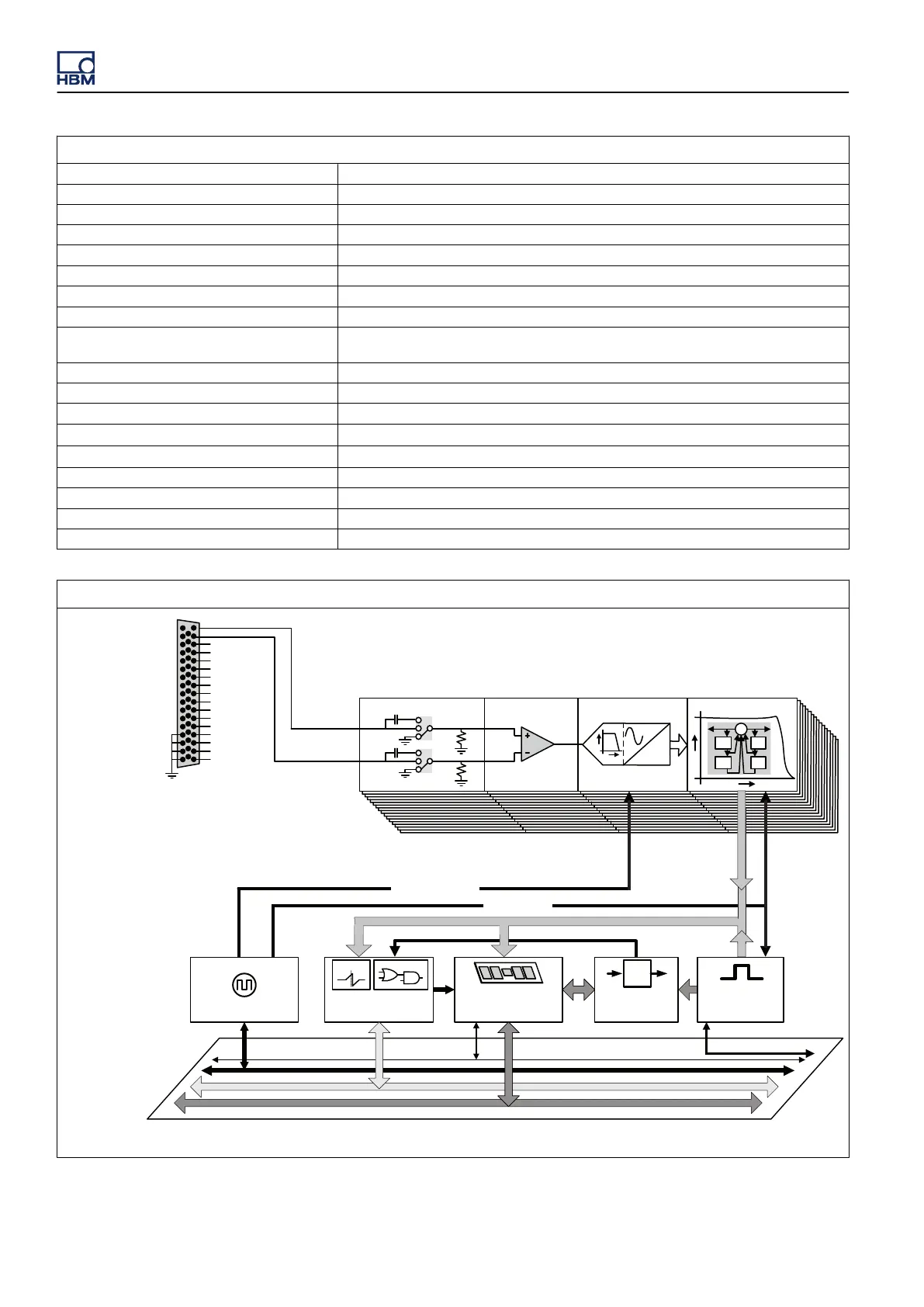

Capabilities Overview
Model GN1611
Maximum sample rate per channel 20 kS/s
Memory per card 200 MB
Analog channels 32
Anti-alias filters Fixed bandwidth analog AA-filter combined with sample rate tracking digital AA-filter
ADC resolution 16/24 bit
Isolation Not supported
Input type Analog balanced differential
Passive voltage/current probes
Passive, single-ended voltage probes
Passive, differential matched voltage probes
Sensors Not supported
TEDS Not supported
Real-time cycle based calculators
32; Cycle and Timer based calculations with triggering on calculated results
Real-time formula database calculators (option)
Not supported
EtherCat
®
output Not supported
Digital Event/Timer/Counter 16 digital events
Standard data streaming (up to 200 MB/s) Supported
Fast data streaming (up to 1 GB/s) Not supported
Slot width 1
Block diagram
n
-1
n
-1
Σ
a
1
a
2
b
2
b
1
x
(n)
z
-1
z
-1
y
(n)
T
A
F
Digital Filter &
Sample Rate selectionSigma Delta ADC
200 or 250 kS/s
Sample Rate
F
x)
Channel &
Card Trigger
Communication
& Memory &
Recording control
Synchronization
& Sample Rate
Real-Time
Calculator
Event Timer
Counter
Input & Output
200 or 250 kS/s
Backplane
Event/Timer/Counter
System Trigger Bus
Communication and
Data Streaming
Acquisition Control
Master Time Base
/ /
(
GND
AC
DC
GND
AC
Pos
Neg
1010
A
F
Inputs channel 1 to 16
Amplifier
Channel 1 to 16
Basic
Figure L.62: Block diagram
GEN3i
1122 I3763-3.1 en HBM: public
