B.2 Breakout cables and panels
B.2.1
Breakout cables
KAB171, KAB172: Breakout Cables (Option, to be ordered separately)

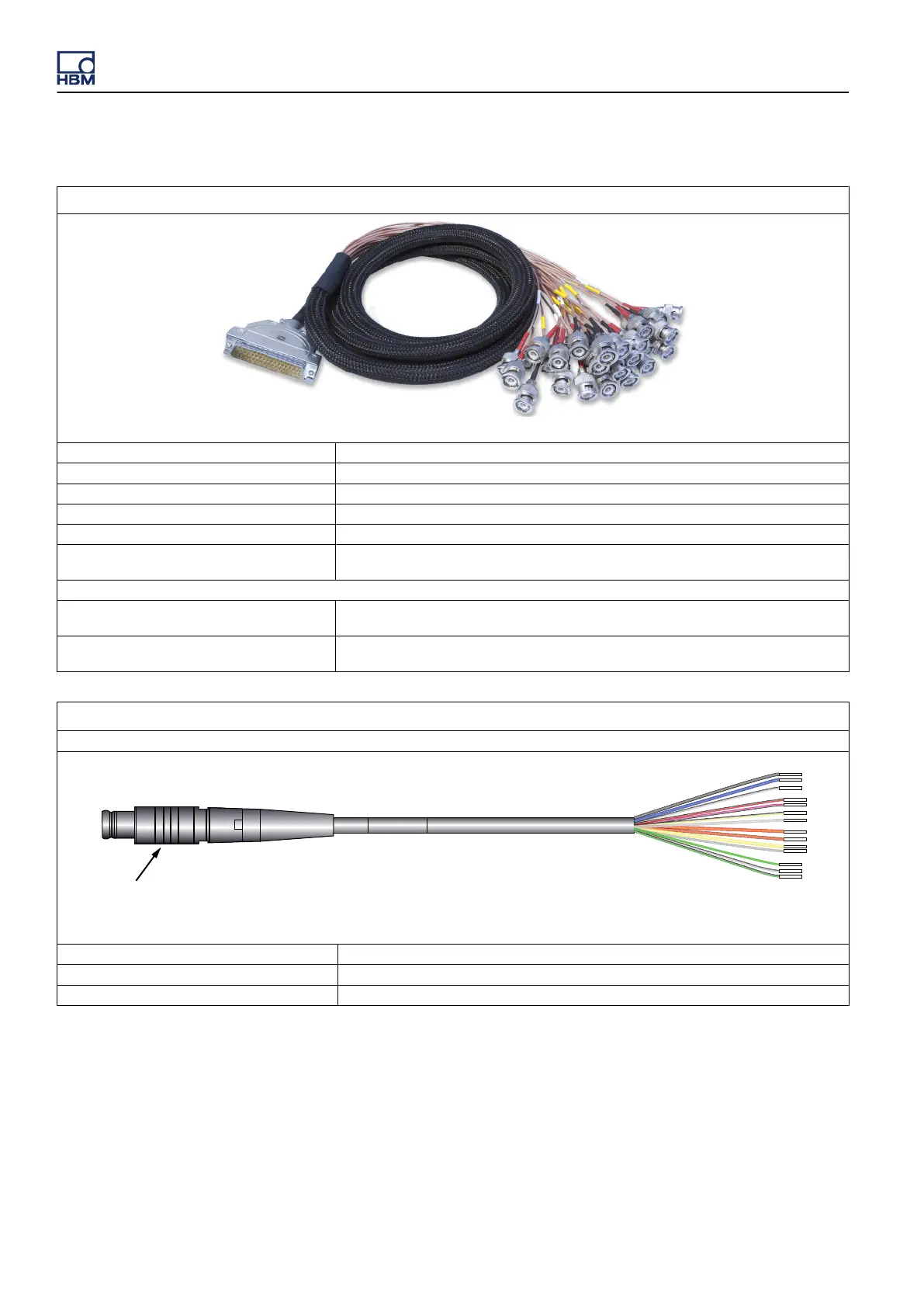

Figure B.3: KAB171/KAB172 breakout cable
Cable length 1.5 m
Cable type Multiple coax cables bundled in a sleeve to minimize crosstalk between cables
Coax cable Axon RG178 B/U (RoHS compliant)
Cable impedance 50 Ω, 105 pF/m
Cable shield All shields are connected to one another and connected to DSUB ground pins
BNC label Each BNC is labeled using color and text. Label indicates the channel number and the input
type (positive or negative).
Cable variants
KAB171
SUBD connector to 16 male BNCs, 1 BNC/channel (single-ended)
16 coax cables (1 coax cable/channel), 5 V output not connected in cable
KAB172 SUBD connector to 32 male BNCs, 2 BNCs/channel (differential)
32 coax cables (2 coax cables/channel), 5 V output not connected in cable
KAB183: Push-Pull Sensor Cable
Sensor line for connection of sensors to card. 14 wires with open ends, lengths 1 m (3.3 ft) or 10 m (33 ft) using ODU 14 pin push-pull plug
1.0 or 10 m
14-pin ODU push-pull
Figure B.4: Push-pull sensor cable
Cable length 1 m (3.3 ft) or 10 m (33 ft)
Cable type 14 wires, 7 * 2 pair twisted, with cable shield
Cable impedance tbd Ω, tbd pF/m
GEN3i
730 I3763-3.1 en HBM: public
