Bridge completion - full (4/4) bridge
A
full bridge type sensor is a sensor that has all four bridge resistors on-board;
no completion is required.
A
BC
D
+V_EXC
−V_EXC
+AMP INPUT−AMP INPUT
R1
R2R3
R4
BRIDGE RESISTOR
BRIDGE COMPLETION

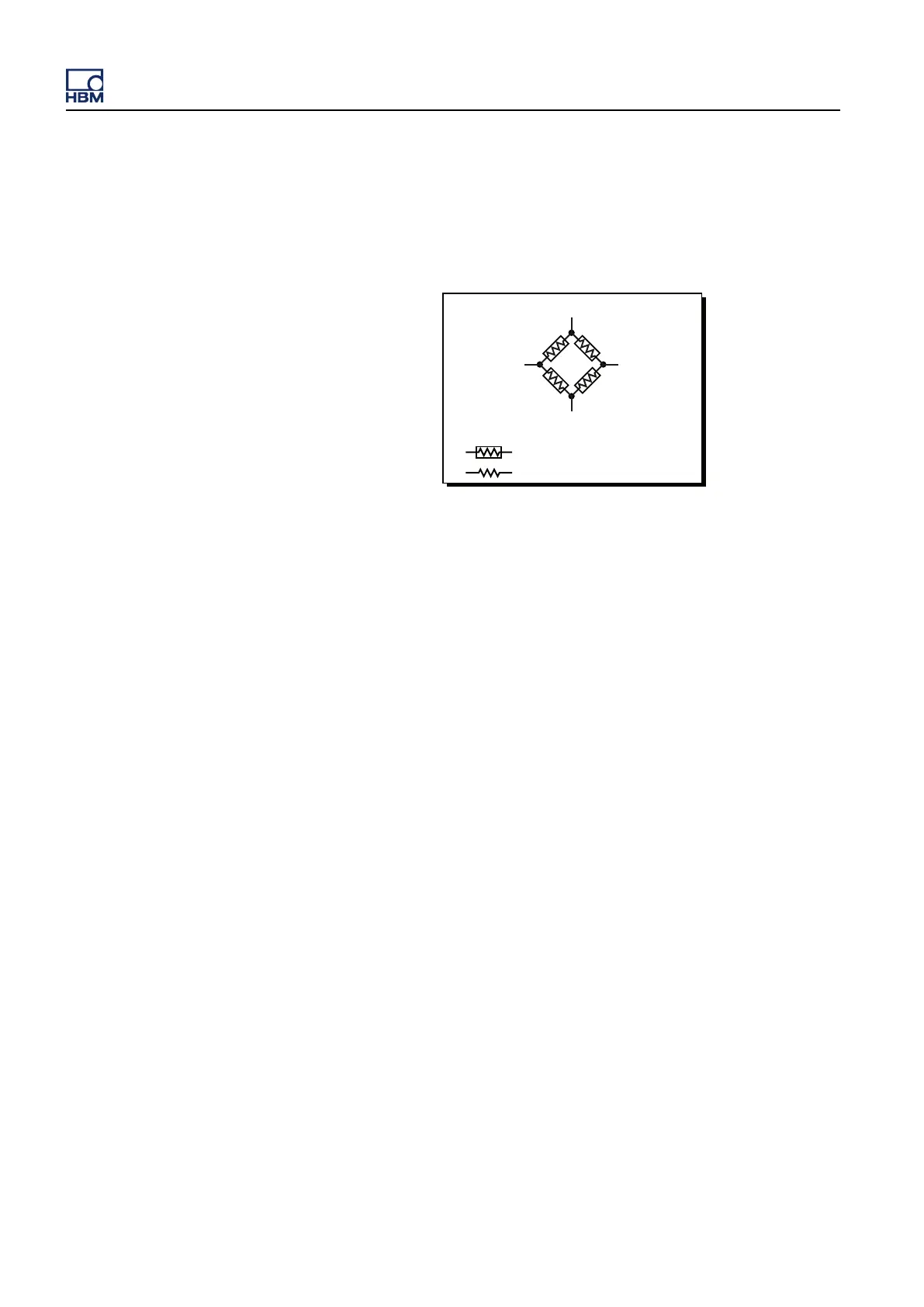

Figure 12.40: Full-bridge layout
At least four wires are necessary to connect a bridge such as this. Please refer
to Figure 12.37 for connection details. Inform the Perception software when a
full bridge is used.
To select full bridge completion in Perception
To select full bridge completion, proceed as follows:
1 In Perception, go to the Settings sheet.
2 In the task pane, select the Bridge in the Input section.
3 Select one or more channels.
GEN3i
258 I3763-3.1 en HBM: public
