5.4 Fuse replacement
To gain access to the fuses, proceed as follows:
1 Power
off the system and remove the power cord. This will enable access
to the groove on the fuse holder.
2 Using a pocket screwdriver, insert the screwdriver in the slot under the fuse
door and gently lift the door. When unlatched, pull out the fuse door.
Lift the door
Insert screwdriver
Pull out the fuse

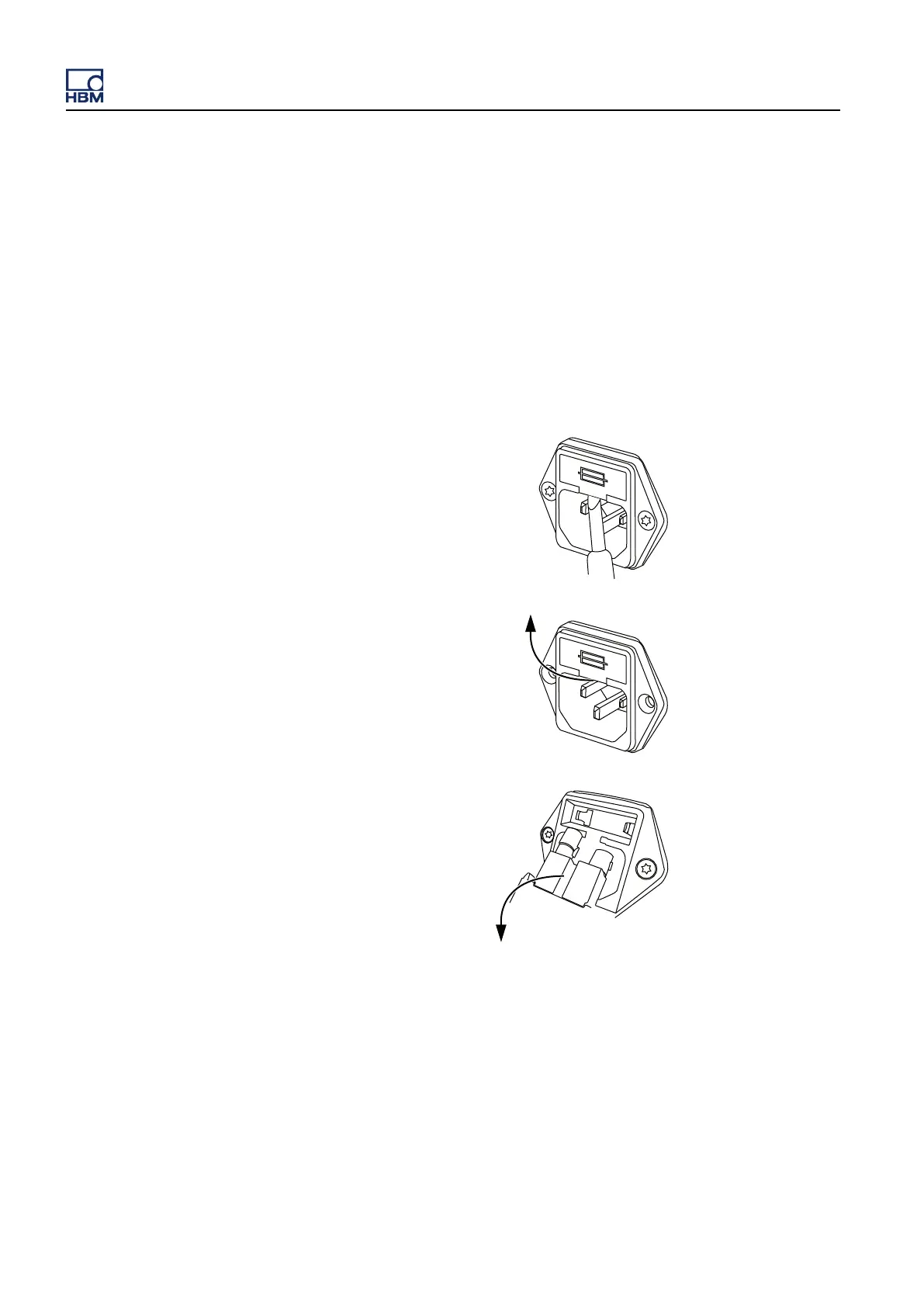

Figure 5.3: Access to fuses
GEN3i
74 I3763-3.1 en HBM: public
