I.1.4 RAID level 10 – Combining RAID 0 & RAID 1
RAID
10 combines RAID 0 and RAID 1 in one single system. It provides security

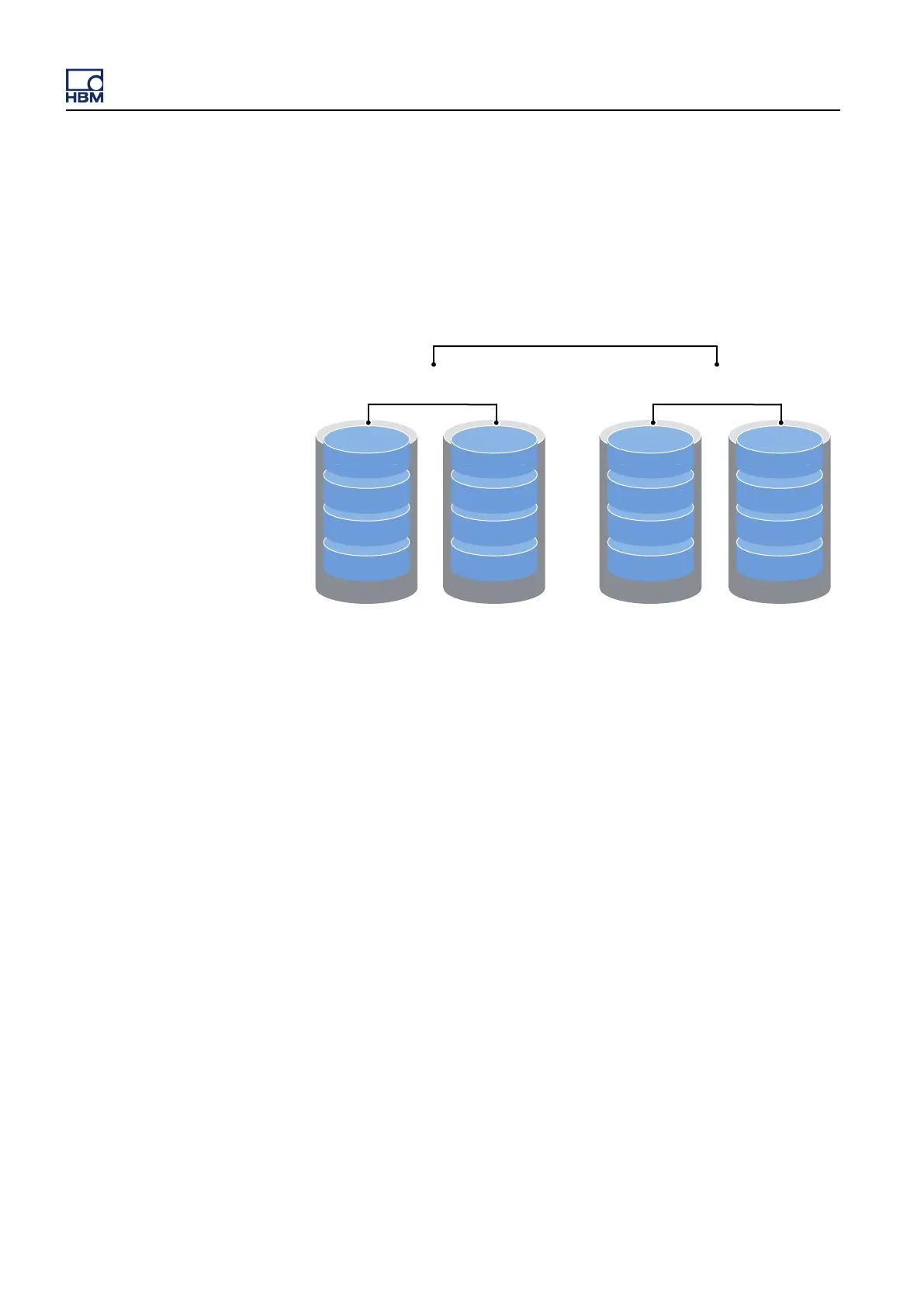

by mirroring all data on a secondary set of disks (Disk 2 and 4 in the drawing
below) while using striping across each set of disks to speed up data transfers.
B
L
O
C
K
1
B
L
O
C
K
2
B
L
O
C
K
3
B
L
O
C
K
4
B
L
O
C
K
1
B
L
O
C
K
2
B
L
O
C
K
3
B
L
O
C
K
4
D
I
S
K
1
D
I
S
K
2
RAID 1
Mirroring
RAID 0
Striping
=
B
L
O
C
K
1
B
L
O
C
K
2
B
L
O
C
K
3
B
L
O
C
K
4
B
L
O
C
K
1
B
L
O
C
K
2
B
L
O
C
K
3
B
L
O
C
K
4
D
I
S
K
1
D
I
S
K
2
RAID 1
Mirroring
=
Figure I.4: RAID level 10 – Combining RAID 0 & RAID 1
Advantages
l Great performance, both in read and write operations.
l If a disk fails and is replaced by a new disk, data does not have to be rebuilt;
it just has to be copied to the replacement disk.
l The technology is easy to implement. No parity calculations are required.
l Volume size is not limited to one disk.
Disadvantages
l Ineffective storage capacity, only half of the total disk capacity is available.
