11.2 Communication and control
The
GEN series uses standard TCP/IP protocol over Ethernet to communicate
with the PC. The Interface/Controller provides access to the Ethernet network.
PTP
FUSES: 3.15AT
100-240v AC
MAINS INPUT
CAL
I/O
POWER OUT
DVI
11V 1.4A max
PTP
PTP
B
A
D
C

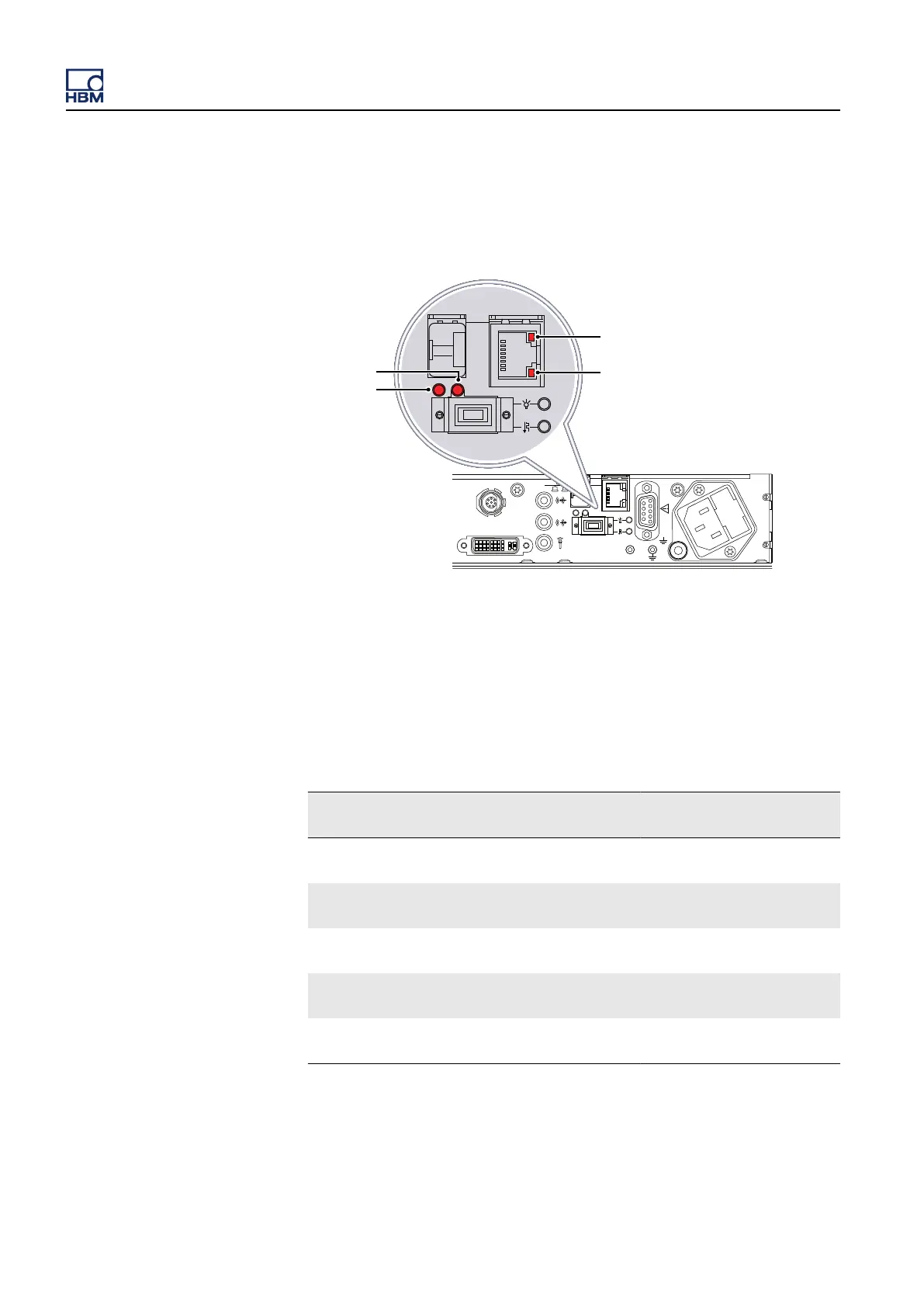

Figure 11.2: Ethernet LED indicators
A Link speed LED optical network
B Activity LED optical network
C Activity LED RJ45 network
D Link speed RJ45 network
Table 11.1: Ethernet LED indicators
Status
Activity
LED
Speed
LED
Description
No network connection OFF OFF
No cable attached or no
signal on cable
100 or 10 Mbit/s network
connection
ON OFF
Network connection with no
data exchange
100 or 10 Mbit/s network
connection
Blinking OFF
Network connection with
active data exchange
1 Gbit/s network connection ON ON
Network connection with no
data exchange
1 Gbit/s network connection Blinking ON
Network connection with
active data exchange
