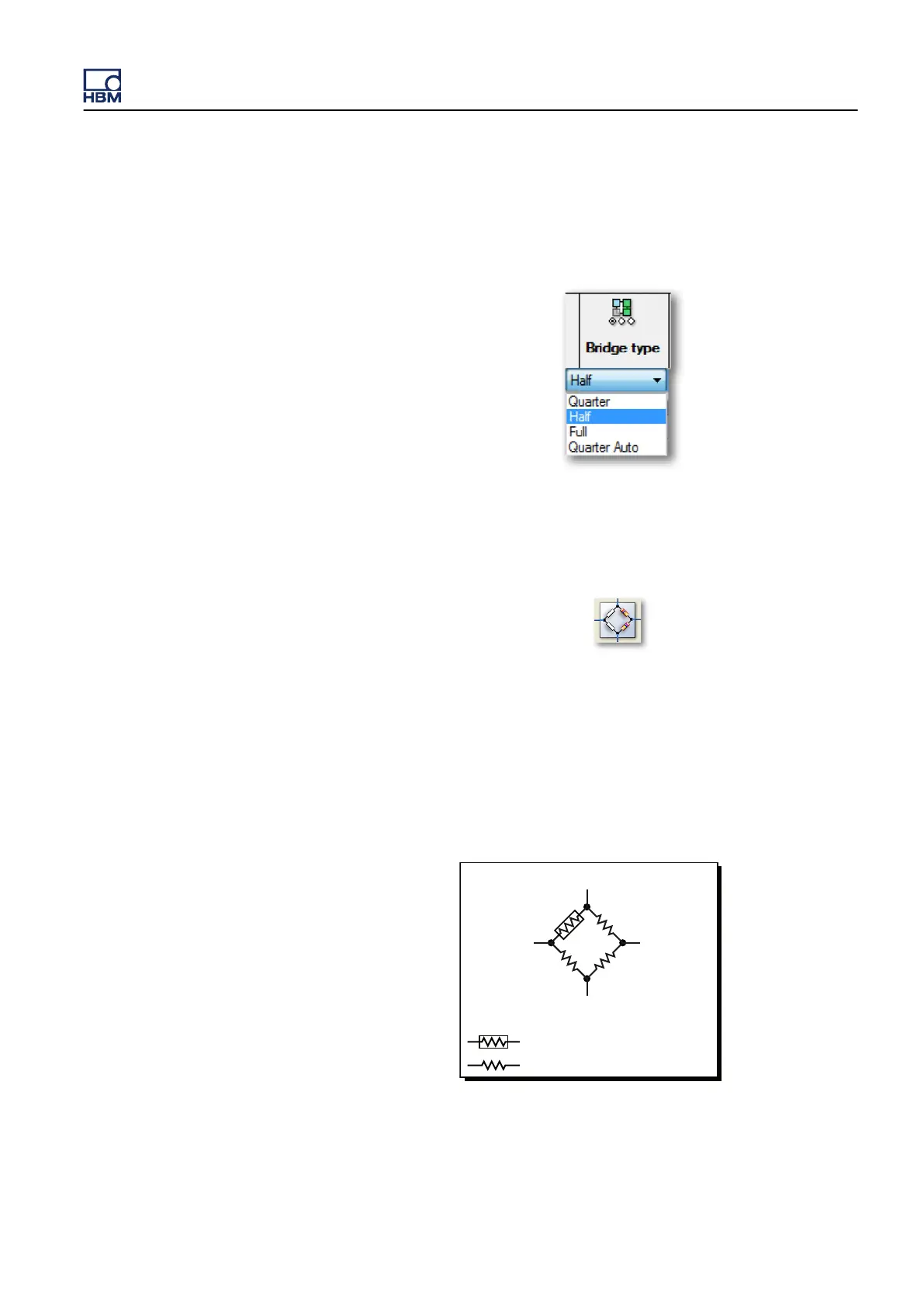

4 Do one of the following:
l In the Bridge type column of the spreadsheet style matrix, select the
bridge type Half.
l In the simplified graphical diagram, click on the bridge icon (D in
Figure 12.39 on page
257) until the half-bridge representation can be
seen.
5
Switch S3 in Figure 12.31
is closed when half-bridge completion is
selected.
Bridge completion - Quarter (1/4) bridge
A quarter-bridge type sensor is a sensor that has a single bridge resistor on-
board; completion is required.
A
BC
D
+V_EXC
−V_EXC
+AMP INPUT−AMP INPUT
R1
R2R3
R4
BRIDGE RESISTOR
BRIDGE COMPLETION
Figure 12.42: Quarter-bridge layout
