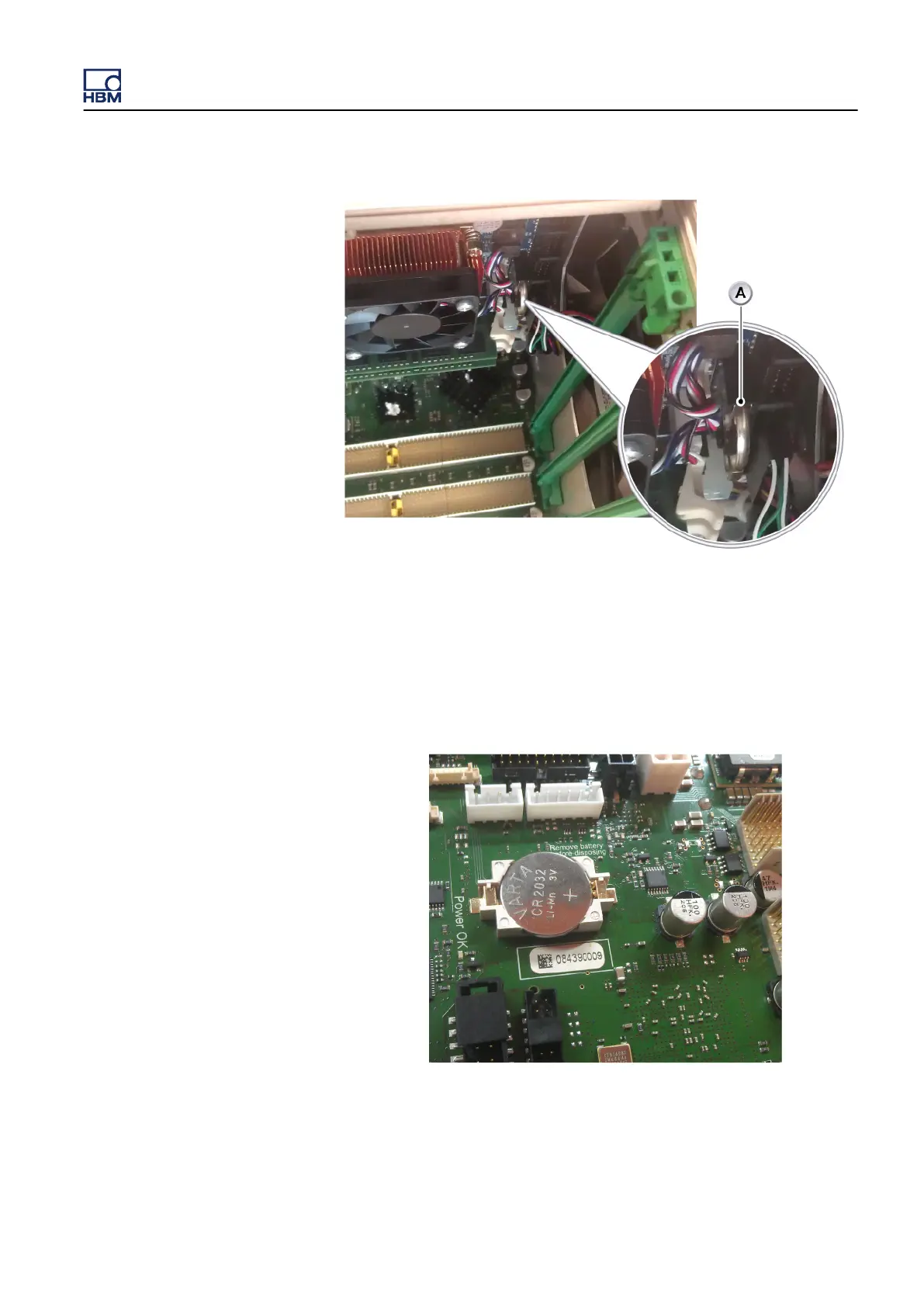

Figure 4.2:
Battery PC section
A
Battery in the PC section
4.2.1
Remove/replace the battery from the backplane
1
Power off the GEN3i system and remove the power input cable.
Figure 4.3:
Battery
-
Backplane section
GEN3i
I3763-3.1 en HBM: public
63
