Structure of the PC measurement electronics with Spider8 Ý Connection facilities
Spider8

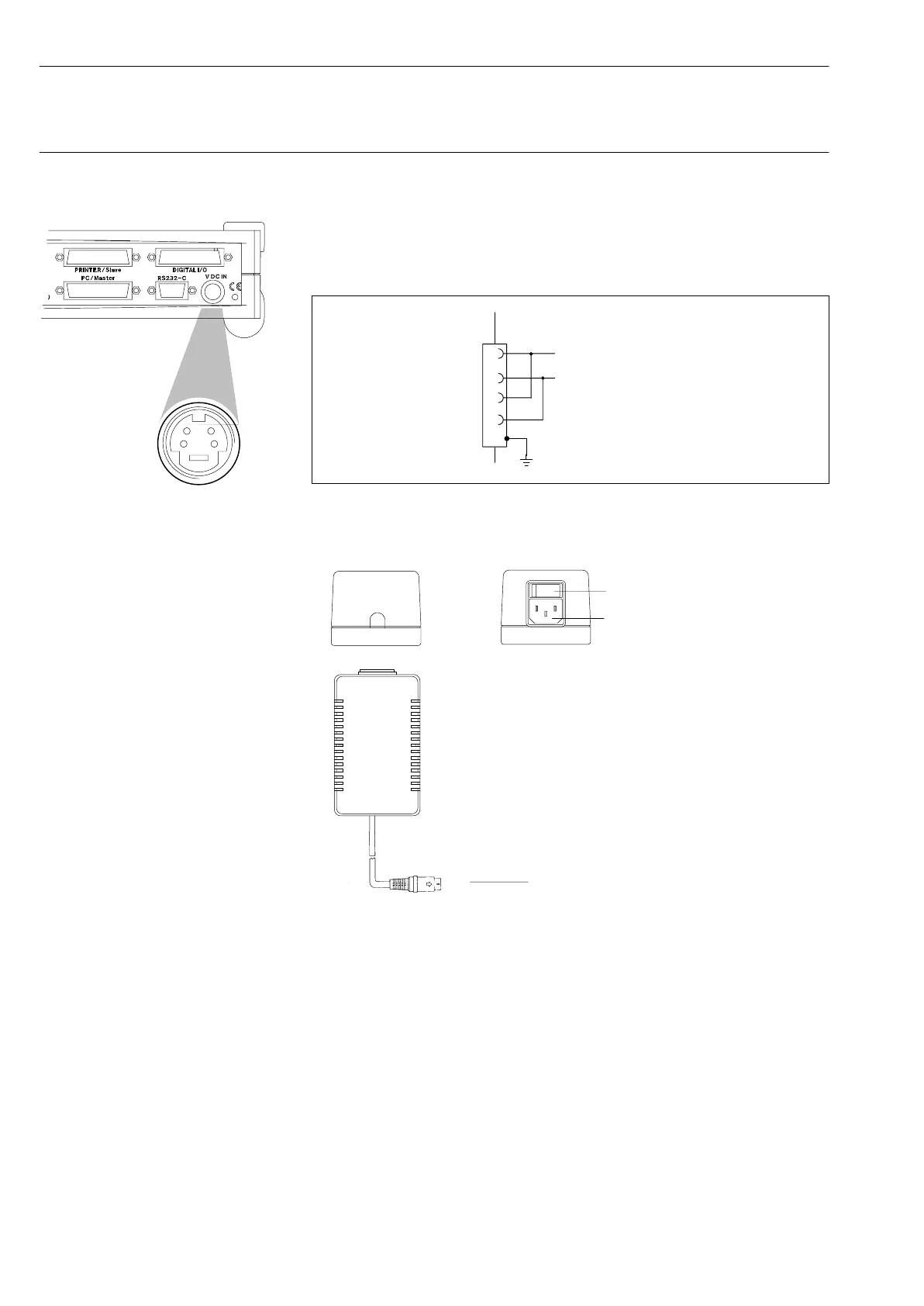

1.1 Power supply/power pack
An external power pack (input: 100 - 250VAC; output: 13VDC, 2mA)
supplies the DC power to the Spider8. The power pack is included in
the list of components supplied.
Ground
+V
IN
1
2
3
4-pin socket, mini DIN
*)
4
*)
SELV circuit
(separated extra
-low
voltage)
Fig. B 2: Pin assignment on 13V DC IN socket
The power pack supplies a separated extra low voltage (SELV).
On/Off
Cable (long) with 4
pins. Mini DIN socket
Mains
connection
