HBM Spider8 - Rs-232-C

from PC (Master)
1
5
96
13
B-9
Structure of the PC measurement electronics with Spider8 Ý Interfaces
Spider8
2.3 RS-232-C
Serial interface port for linking a Spider8 to a PC.
The PC interfaces may only be operated alternately.

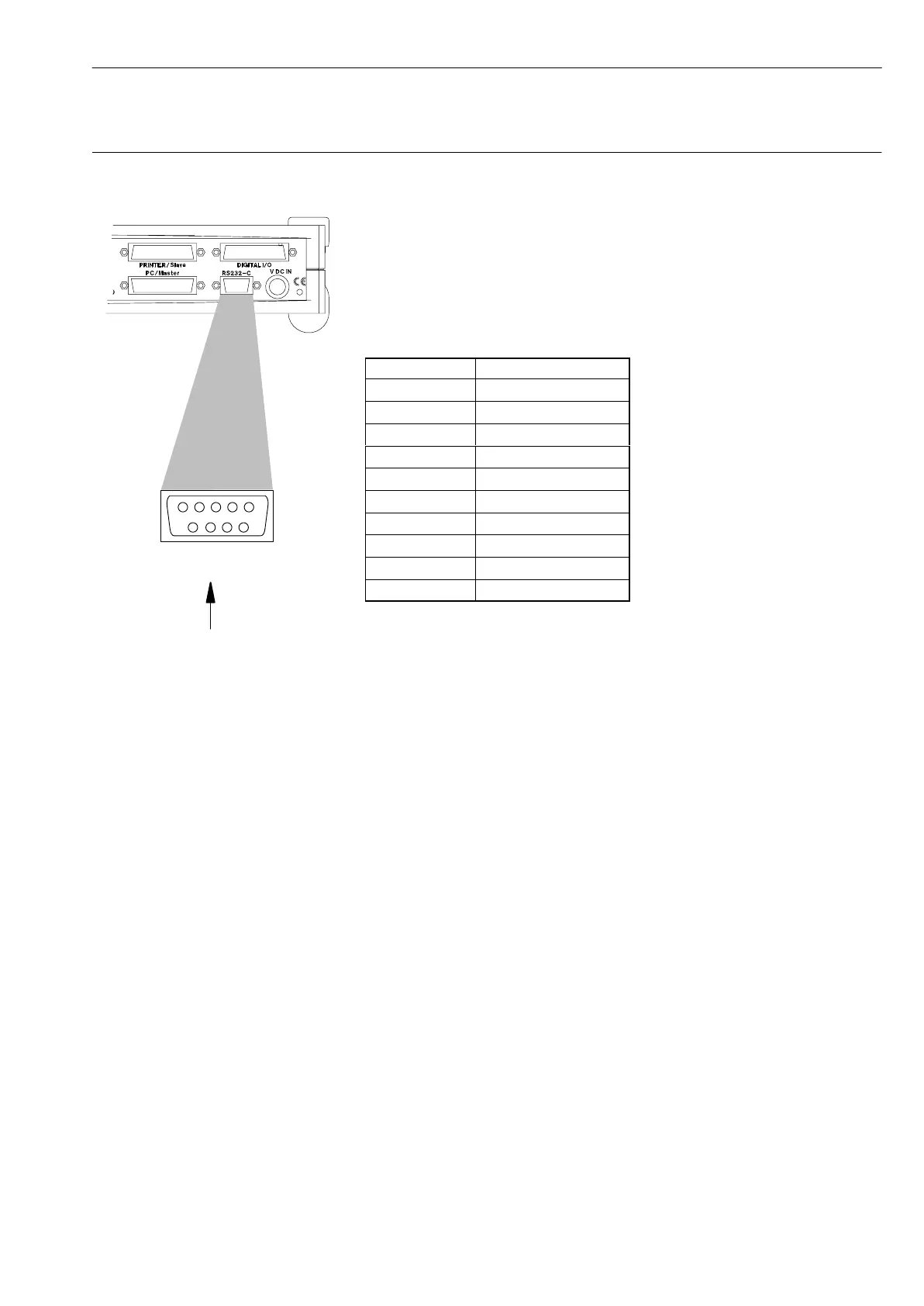

Pin assignment of RS-232-C (V.24) interface:
(suitable for point-to-point connections up to 20 metres)
Pin Assignment
1 Free
2 TD
3 RD
4 Free
5 Ground
6 DTR
7 CTS
8 RTS
9 Free
Socket housing Protective ground
The Spider8 is a Data Communications Equipment (DCE), i.e. pin 2
is data input and pin 3 is data output.
