2.1 PC/Master
Linking a Spider8 to a PC or to an upstream Spider8.

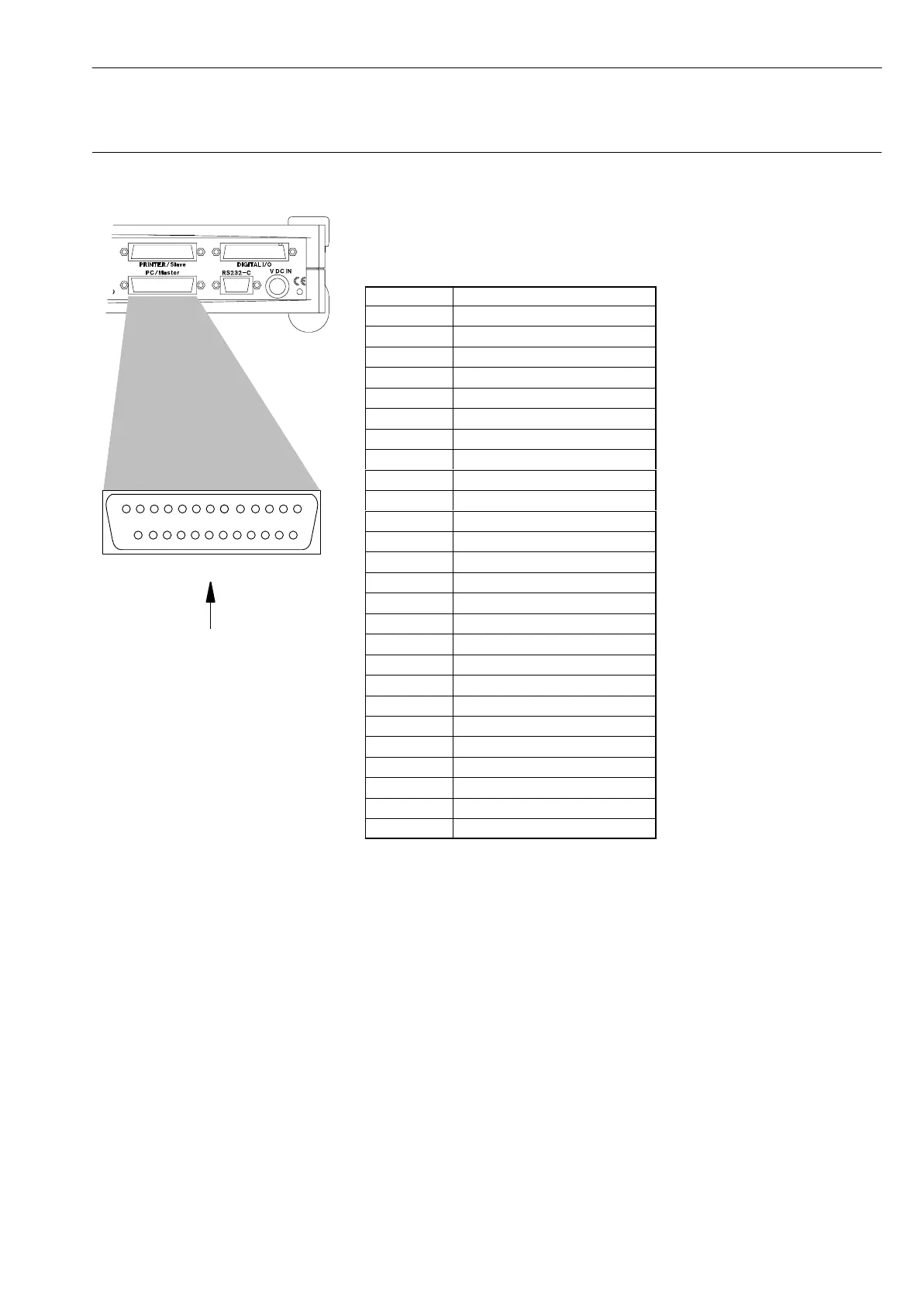

Pin assignment for IEEE1284 interface:
Pin Assignment
1 nWrite
2 Data 1
3 Data 2
4 Data 3
5 Data 4
6 Data 5
7 Data 6
8 Data 7
9 Data 8
10 Intr
11 nWait
12 UserDefine 1
13 UserDefine 3
14 nDStrb
15 UserDefine 2
16 nInit
17 nAStrb
18 Clock in* (Synchronisation)
19 Ground
20 Ground
21 Ground
22 Ground
23 Ground
24 Ground
25 Ground
26 Housing
* Departs from standard
