Structure of the PC measurement electronics for Spider8 Ý I / O socket
Spider8
Ground (Pin 7)
ERR
(Pin 20)
MSR
(Pin 8)
RDY
(Pin 21)
Common
(Pin 19)
max.50V
max.100mA
+
-
+5V
50k

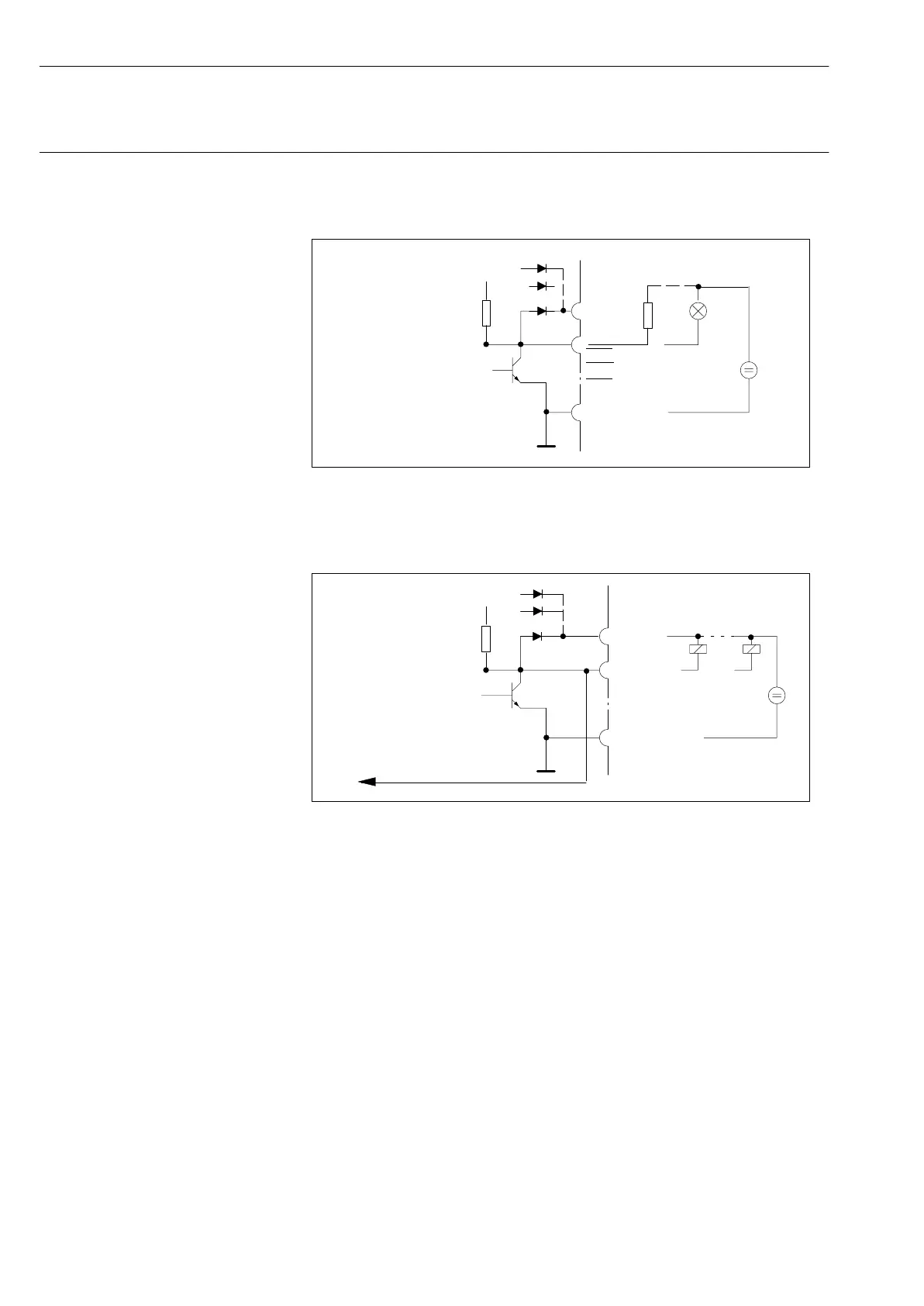

Fig. B5: Status signal on the I/O socket
Ground (Pin 9)
Common
(Pin 19)
max.50V
Output 0...7
max. 100mA
+
-
+5V
IN
50k
(Pins 10...13, 22...25)
Fig. B6: Output assignments on the I/O socket
