CDM 3201 Order No. BA 92-12-3321A Issue 19.09.08 31
The LCD display shows the charging voltage set the last time.

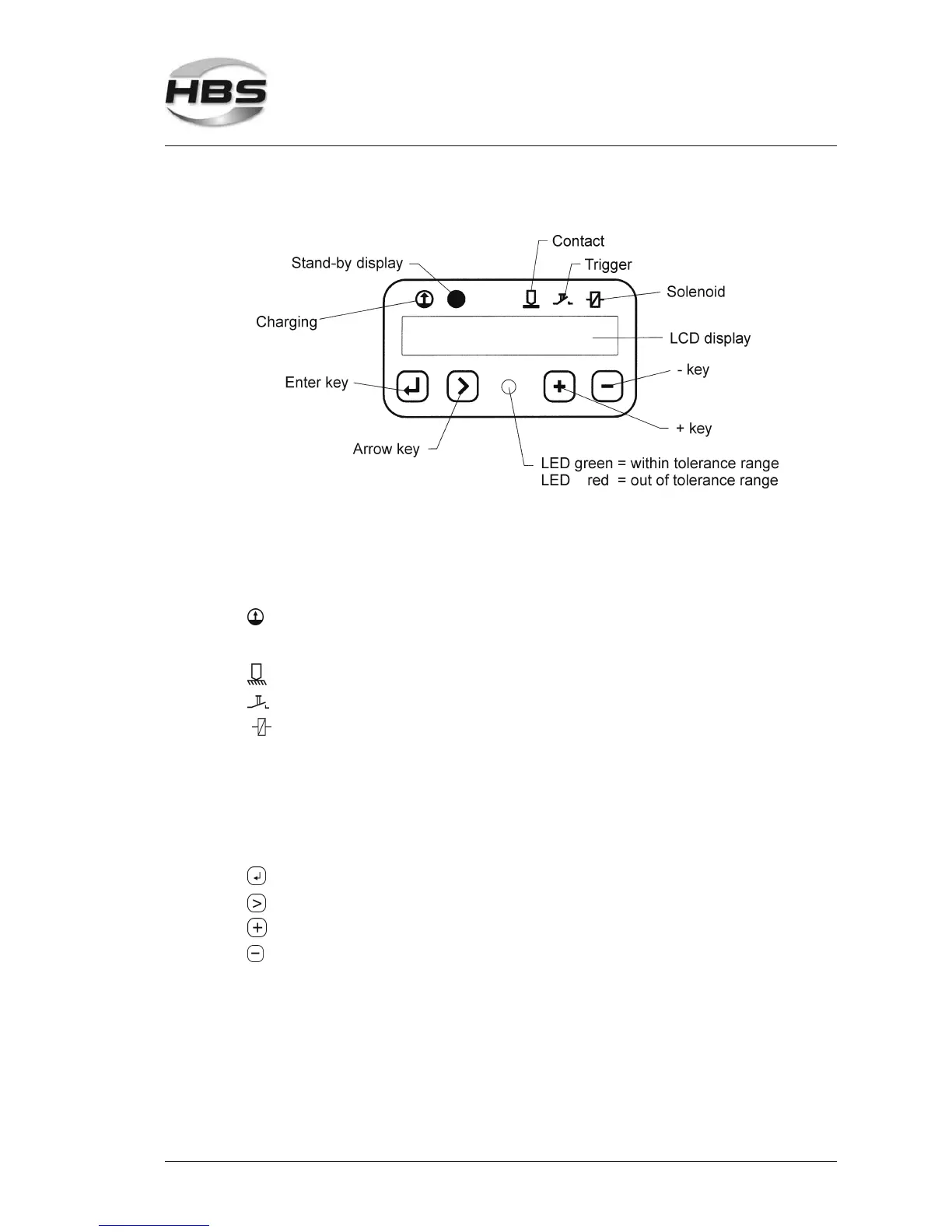

Symbols
Together with the display, the symbols provide a quick overview over the condition of the
power unit. If a certain condition is present, the display shows two black bars below the
related symbol. The symbols mean:
CHARGE, capacitors are charged
z READY, power unit is ready for welding
CONTACT, there is electrical contact between stud and work piece
TRIGGER, welding gun button is triggered
SOLENOID, a drawn-arc welding gun is connected
LCD Display
2 x 20 characters, height 9 mm,
with background illumination and automatic contrast control
Keys
ENTER, confirmation of selected function
ARROW, marks the selected program item
PLUS, increases the selected parameter
MINUS, decreases the selected parameter
5 Stud Welding Procedure
5.6 Switching on the Power Unit
