56 CDM 3201 Order No. BA 92-12-3321A Issue 19.09.08
7.4 Open the Power Unit
Open the power unit only if you are sufficiently qualified in
repairing electrical equipment.

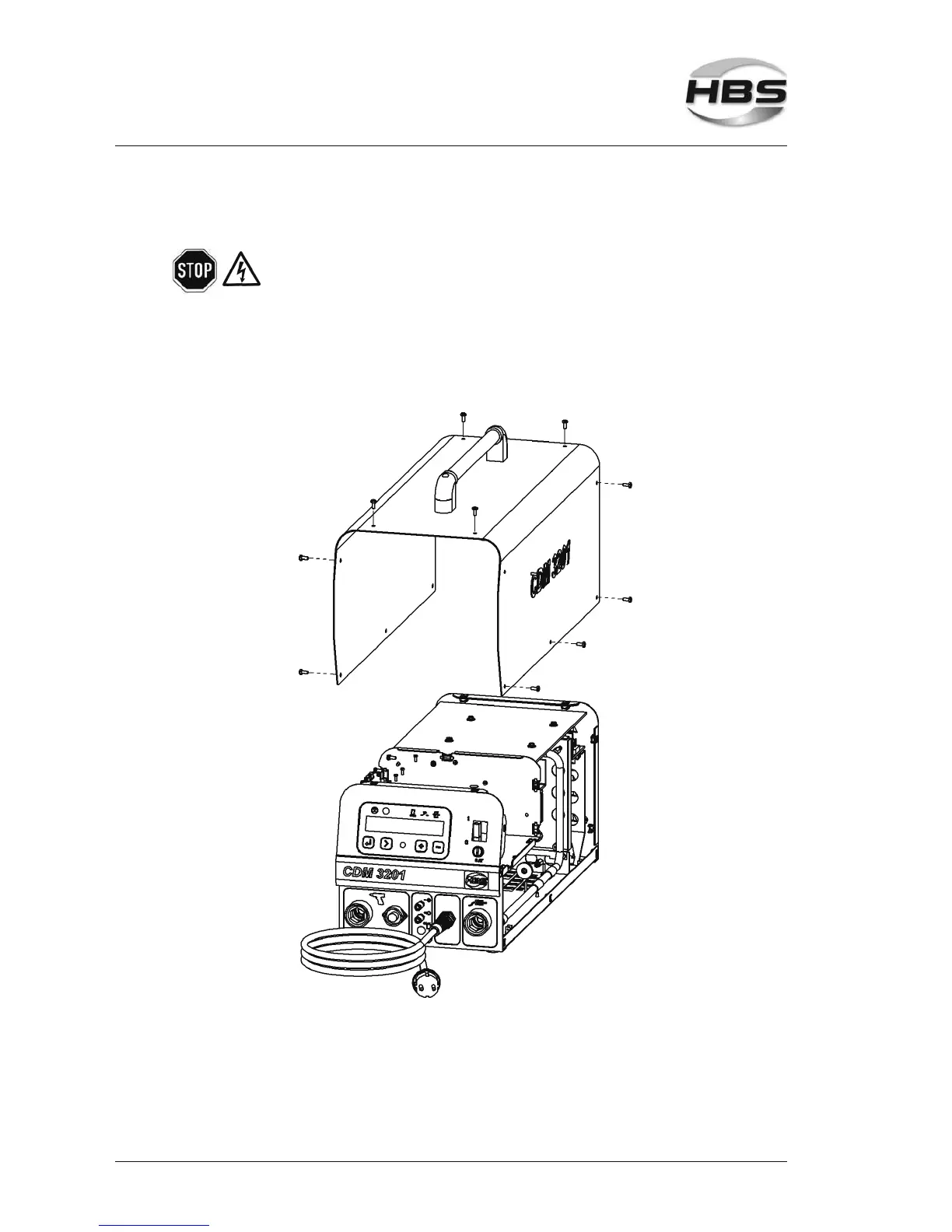

Remove the 14 screws of the casing (5 at each side and 4 on top).
Carefully remove the cover and disconnect the ground cable on the inside of the
cover.
Now pull off the cover.
7 Care and Maintenance
7.4 Open the Power Unit
