3.5 Shielding Gas Connection
Observe the standards (see appendix) when handling the
shielding gas bottles.
Connect the shielding gas bottle as follows:

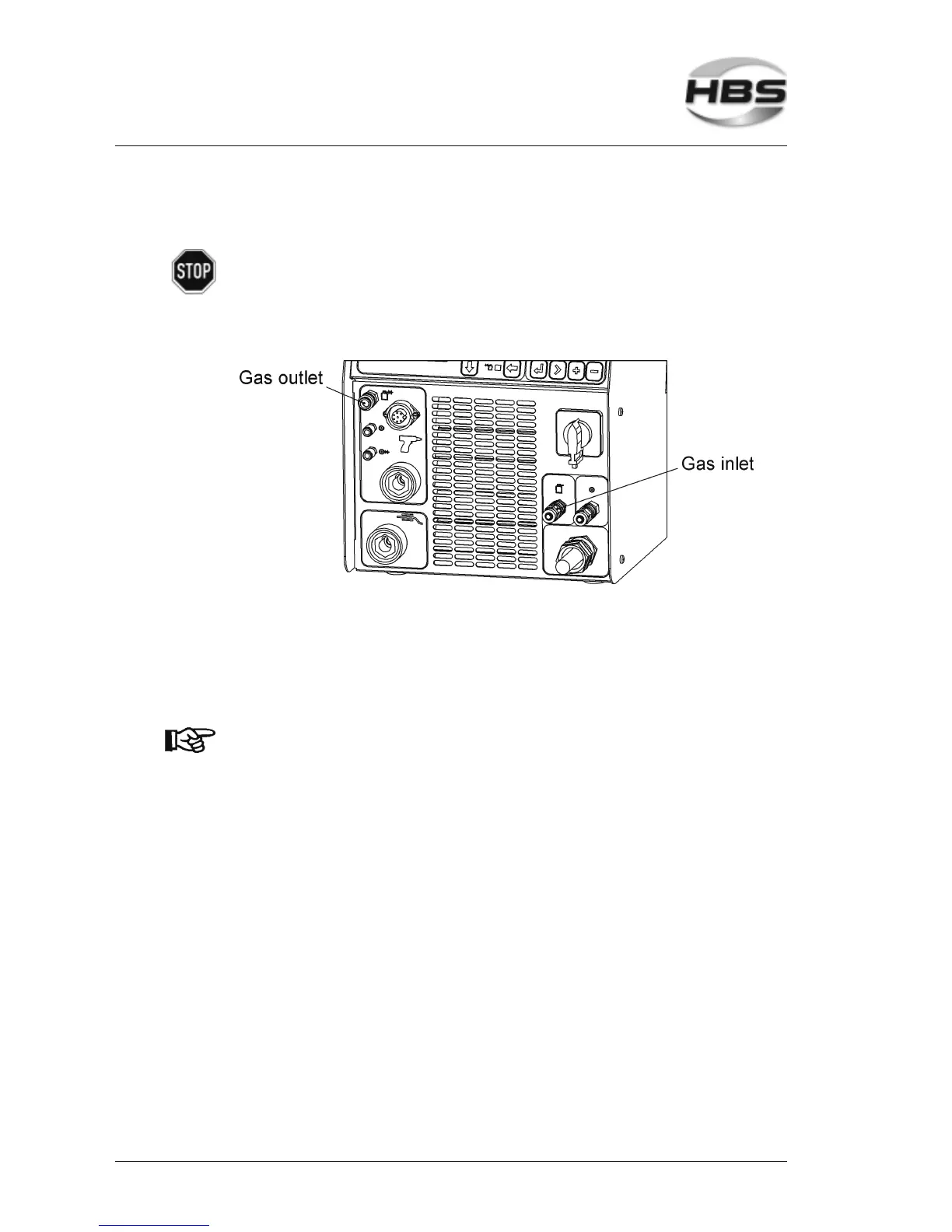

 Connect the gas hose of the shielding gas bottle to the gas inlet of the power
unit.
 Connect the gas hose of the welding gun to the gas outlet.
 Set the flow meter of the shielding gas bottle to 8 - 16 liters/min.
Minimum flow rate for stud welding with shielded gas is 8 l/min.
A gas mixture of 82% Argon (Ar) and 18% carbon dioxide (CO
2
) is mainly used for stud
welding.
